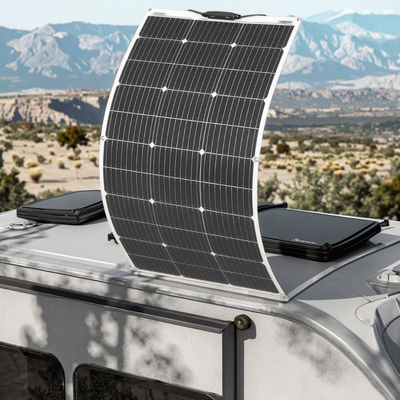

Ultralight Thin Bendable Flexible Solar Panel 100w 120w 150w 170w 200w 300w 400w

TUV audit ultralight solar panel manufacturer

Product:Ultralight Thin Bendable Flexible Solar Pannel Perovskite Energy Products Panel System placa pv panel sunpal 100w 120w 150w 170w 200w 300w 400w

Traditional solar panels Expensive and heavy and usually sealed with tempered glass.

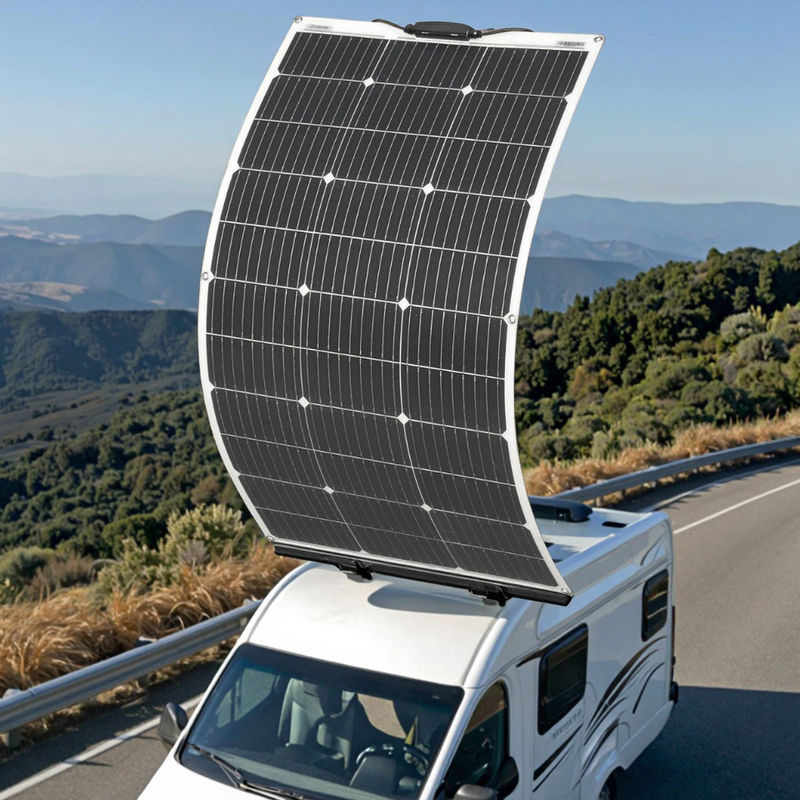

6 metal reinforced mounting holes at each corner Ideal for motorhomes and caravans.
The panel is covered with a special material and is easy to transport.
100W 18V Solar Panel 100w Panel Solar Flexible Solor Panell Solar Modul Soft Sollar Solour Solar Panels Related Products for windows Home Use 1000w

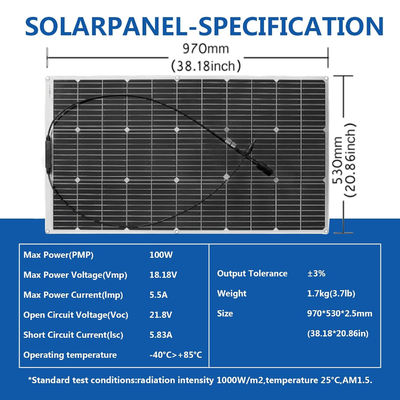

Electrical Data
Maximum Peak Power (Pmpp) 100W
Maximum Power Point Voltage (Vmpp) 18.0V
Maximum Outlet Current (Impp) 5.55A
Open Circuit Voltage (Voc) 21.6V
Short Circuit Current (Isc) 6.11A
Module Efficiency 21.7%
Maximum System Voltage 700VDC (IEC)
Solar Cell Type Monocrystalline (157*157mm)

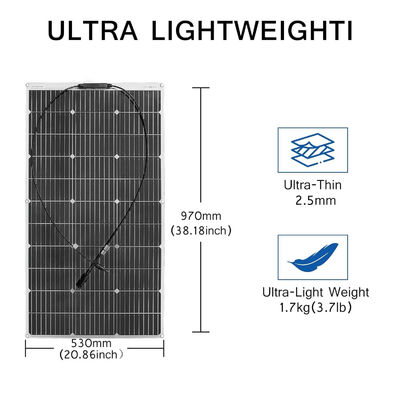

Dimension 970*530*2.5MM
Weight 1.7kg

Thermal Properties
Module Operating Temperature 47℃+-2℃
Nominal Operating Cell Temperature (NOCT) -20℃~+65℃
Temperature Coefficient of Pmax -0.42%/℃
Temperature coefficient of Voc -0.31%℃
Temperature coefficient of Isc 0.05%℃

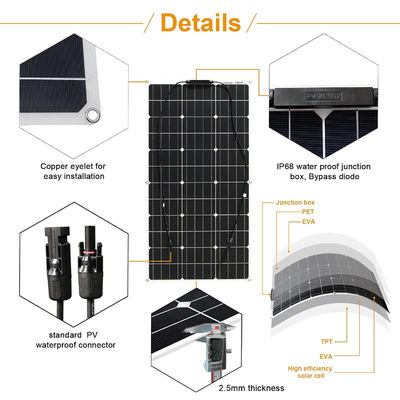

Connector junction box

Rated current 30A Protection class IP67
Maximum AWG size range 10AWG
Number of diodes 1 diode
IP protection rating IP67 Output cable 14 AWG (2.95 feet long)
All specifications and data described in this datasheet have been tested under standard test conditions (STC irradiance: 1000W/m2, temperature: 25℃, air mass: 1.5) and may differ slightly from the actual values.

Test:

1.1200hours humidity high temperature test;

2.300+hours sait spray test

Keyword of the product

100W flexible solar panels 18V soft solar panels Monocrystalline solar panels VR yachts Flexible solar power
