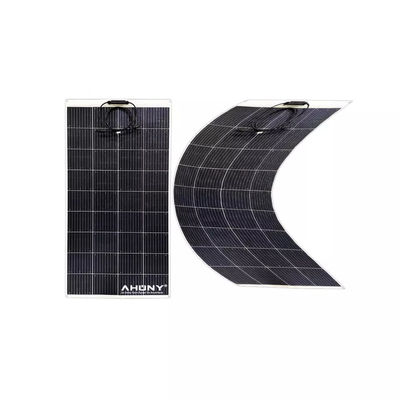

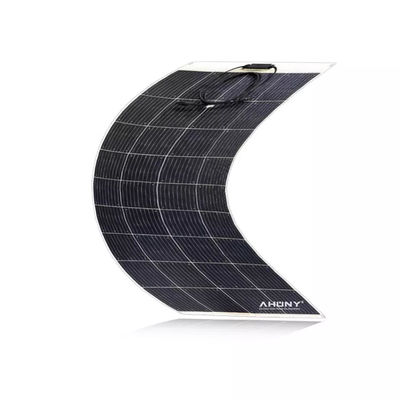

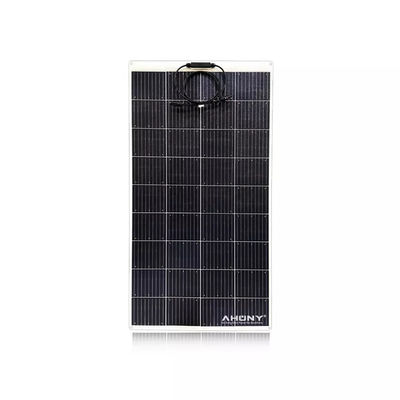

150w 160w Bendable Solar Panel Semi Flexible roof shingles off grid solar power system For Rv Camp Portable Generators Vans Fence

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Product Name:

Semi Flexible Solar Panel 150w

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

680*1145*2

Panel Efficiency:

25.8%

Weight:

3.5

Cell Efficiency:

25.8%

Dimension:

680*1145*2

Voltage At Pmax(Vmp):

20.52V

Port:

Shenzhen

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

20000 Piece/Pieces per Month

Highlight:

Product Description

150w HJT Solar Cell Semi Flexible Walkable For Rv Camp Outdoor Portable Generators Vans Fence Module Bendable Solar

Product Description

1.latest generation 25.8% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2.MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3.3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S150M(can upgrade to 160w)
Product Name	150w 160w Bendable Solar Panel Semi Flexible roof shingles off grid solar power system For Rv Camp Portable Generators Vans Fence
Maximum Power[Wp]	150
Solar Cell	HJT
Cell Array[Pcs]	4*9
Cell Efficiency	22.7%
Size[mm]	68011452
Max Power Voltage Vmp[V]	20.52
Max Power Current Imp[A]	7.31
Open Circuit Voltage Voc[V]	24.01
Short Circuit Current Isc[A]	7.71
Net.Weight[kg]	3.5
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
