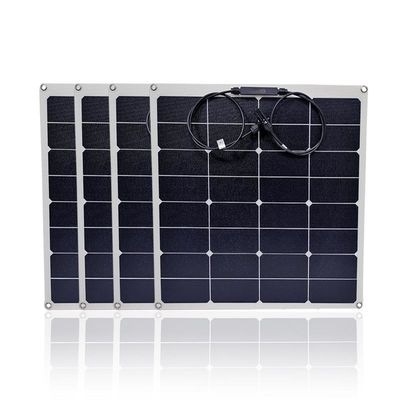

Mono 50w Semi Flexible Solar Panel High Efficiency For Camping Rv

Detail Information

Place of Origin:

Guangdong, China

Product Name:

50W Solar Panel Flexible Solar Panel

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

510*560*2

Panel Efficiency:

24%

Certificate:

CE ROHS ISO

Solar Cell:

Monocrystalline Solar Cell

Application:

RV Boat Marine Yacht

Port:

Shenzhen

Packaging Details:

carton box

Supply Ability:

3000 Piece/Pieces per Month

Highlight:

Product Description

50w Semi Flexible Solar High Efficiency Best Solar Panel Prices For Flexible Solar Panel Used In Camping Rv

Product Description

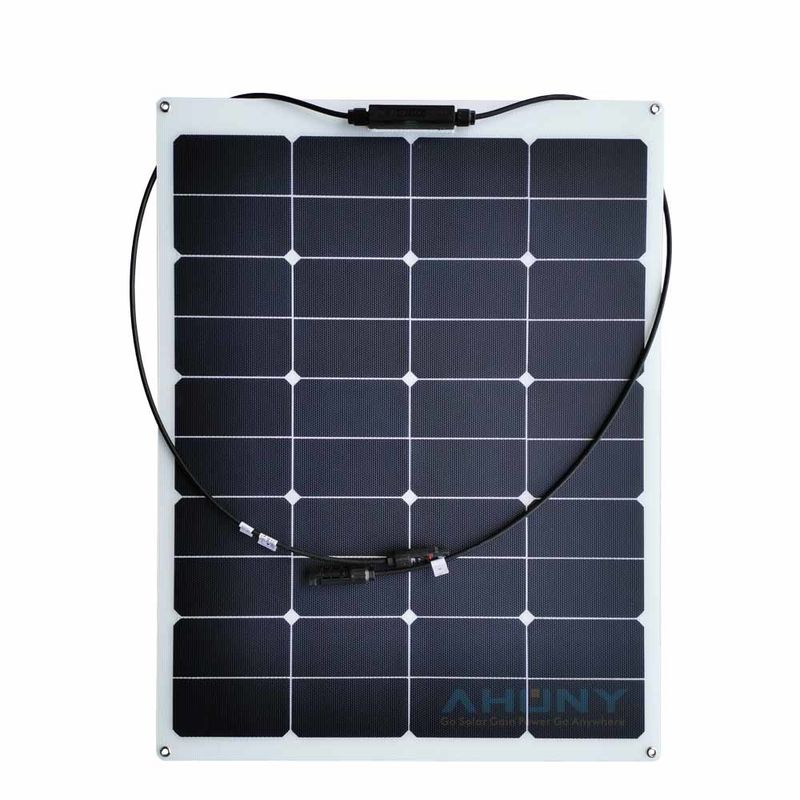

50w flex solar panel HCF surface semi flexible solar panel for RVs boats campers

Support ODM

Model No.	eGo S50M
Product Name	semi flexible solar panel
Maximum Power[Wp]	50
Solar Cell	HJT HCF solar cell
Cell Array[Pcs]	3*12
Cell Efficiency	24%
Size[mm]	5105602
Max Power Voltage Vmp[V]	23.04
Max Power Current Imp[A]	2.17
Open Circuit Voltage Voc[V]	26.96
Short Circuit Current Isc[A]	2.34
Net.Weight[kg]	0.8
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	0.031
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	IR<2A<-0
Certification	CE ROHS

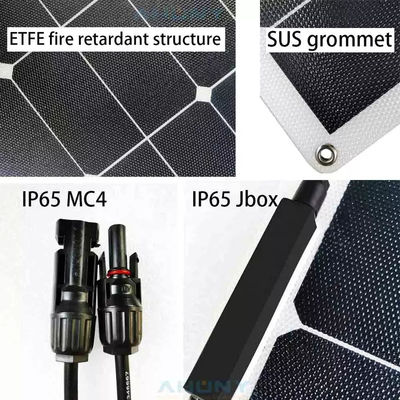

Surface/Backsheet	ETFE+Ap2
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
