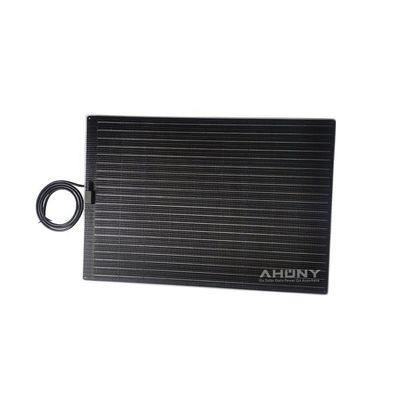

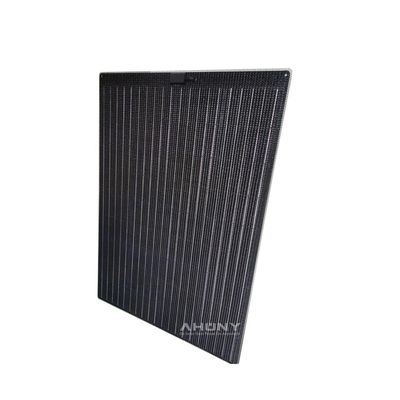

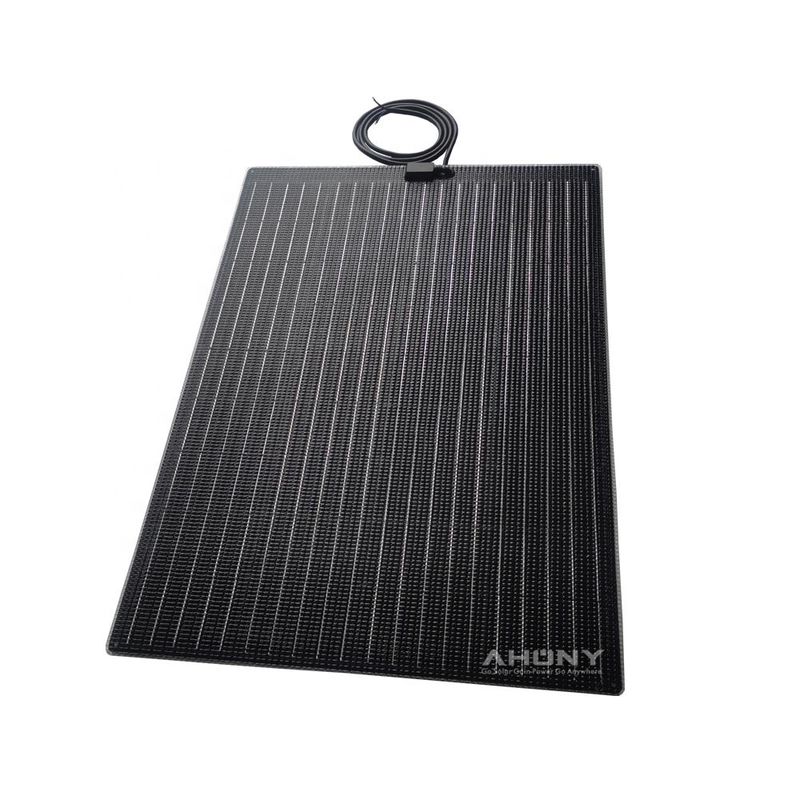

Walkable 100 Watt Mono Perc Solar Panel Semi Rigid Monocrystalline Solar Panel

Detail Information

Place of Origin:

Guangdong, China

Cell Size:

158.75mmx158.75mm

Type:

PERC

Panel Dimensions:

510*1075*5

Panel Efficiency:

22.5%

Warranty:

2years

Brand:

AHONY

Connector:

2m 2.5mm2

Junction Box:

JB010

Name:

EMarvel

Power:

100W

Weight:

4.7

Certificate:

CE,ROHS,SG S,IEC Salt Mist,High Temp Humidity Test

Packaging Details:

20pcs/carton box or 60pcs/wooden case

Highlight:

Product Description

PERC 100 Watts All Black Solar Panel Monocrystalline Mono Solar Panels 100w Wholesale Solar Panels Manufacturers

Product Description

Model No.	eMarvel M100w

Product Name	Walkable semi rigid solar panel
Maximum Power[Wp]	100
Solar Cell	A grade mono PERC cell
Cell Array[Pcs]	3*12
Cell Efficiency	22.50%
Size[mm]	51010755
Max Power Voltage Vmp[V]	20.88
Max Power Current Imp[A]	4.79
Open Circuit Voltage Voc[V]	24.05
Short Circuit Current Isc[A]	5.17
Net.Weight[kg]	3.8
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.252
Temperature Coefficient Voc[[%/K]	-0.227
Temperature Coefficient Isc[[%/K]	0.031
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	IR<2A-0
Flame retardancy	UL94 VTM-0
Certification and test	CE,ROHS,SGS,IEC salt mist,High temp humidity test
Maximum bend radius(θ)	5°
Cables and Connectors	APJB010,2m dual cores cable 2.5mm2 bare at end
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
