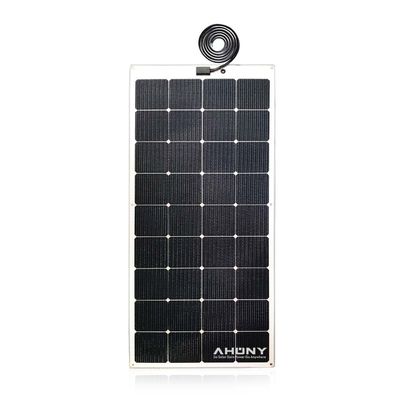

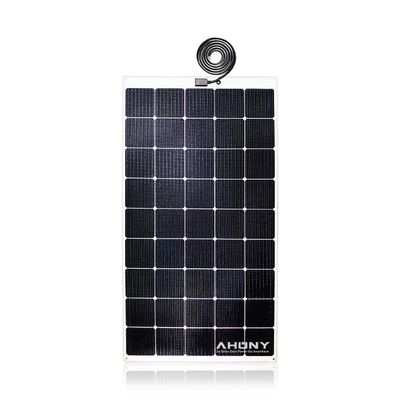

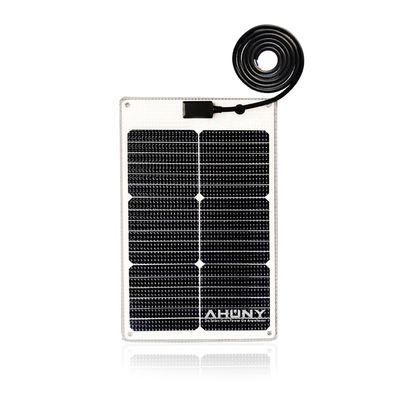

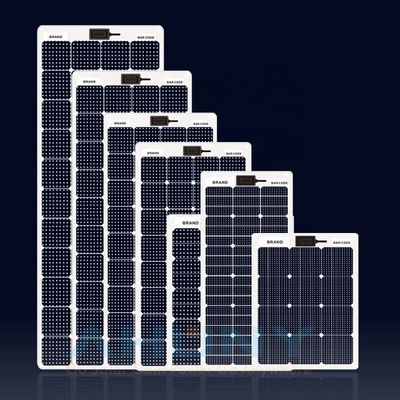

Semi Rigid Mono Walkable Solar Panel PET ETFE Sunpower PV Panels For Marine Camping

Brand Name:	Ahony Power
Model Number:	eMarvel series
MOQ:	10 pieces
Price:	$170.40/pieces 10-49 pieces
Supply Ability:	10000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Semi Rigid Solar Panel

Brand:

Ahony Power

Dimensions(MM):

Customize

Panel Dimensions:

670*1210*5mm

Cell Size:

125mmx125mm

Max. Power:

20~175W

Type:

IBC SunPower

Panel Efficiency:

23.7%

Warranty:

1 Years

Application:

Boat,Yacht,Marine,Camping,Emergency,RV,Fishing

Certificate:

CE ISO RoHS

Packaging Details:

carton

Supply Ability:

10000 Piece/Pieces per Month

Highlight:

Semi Rigid Walkable Solar Panel

Mono Walkable Solar Panel

ETFE Sunpower Pv Panels

Product Description

Semi Rigid Walkable Solar Panels High Efficiency Mono Cell Sunpower Cell With PET ETFE Surface Pv Panel For Marine Campi

MAIN FEATURES

High efficiency solar cell :Use leading brand cell and high efficiency A grade quality to insure high and stable output.

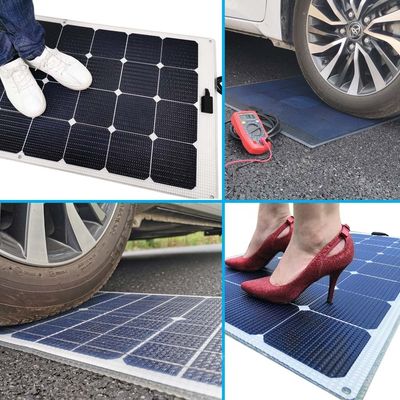

Walkable and Anti-slippery: By and means do not damage cells,the rough anti-slippery surface is safer for installation or maintenance.

Longer lifespan 15 years guaranteed: Premium weather or moisture resistance,for harsh environment 15 years life guaranteed,over 25 years lifespan.

High temp resistance and little power loss :The surface material resists high temperature flame retardancy UL94 VTM-0.Rugged and insulated bottom reduces area touched surface of yacht,RV,cart etc.Enables air circulation,it cools down panel and get little power loss.

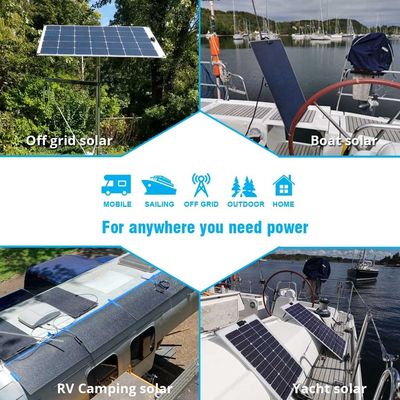

Rigid,thin,light design for widely use:It's rigid to resist hailstone.semi flexible with bend angle less 5 degree,suitable for off grid use,marine,yacht,RV roof,on grid home system,parking lot,portable power generator etc.It's 1/6 thickness 7/10 the weight of glass solar panel

Product Description

Model No.	eMarvel series
Product Name	Solar Panel 20~175w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface.
Maximum Power[Wp]	20~175W
Solar Cell	SunPower Cell
Cell Array[Pcs]	customize
Cell Efficiency	23.7%
Size[mm]	customize
Max Power Voltage Vmp[V]	18~30V
Max Power Current Imp[A]	0.9~6A
Open Circuit Voltage Voc[V]	20~35V
Short Circuit Current Isc[A]	0.9~6.5A
Net.Weight[kg]	3~7.5kg
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.44
Temperature Coefficient Voc[[%/K]	-0.33
Temperature Coefficient Isc[[%/K]	0.06
Maximum System Voltage[V]	1000 V
