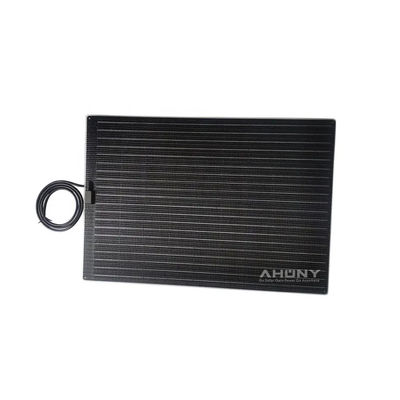

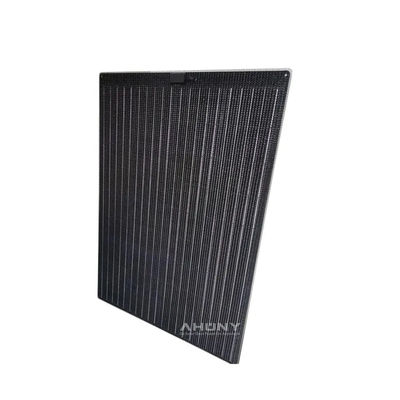

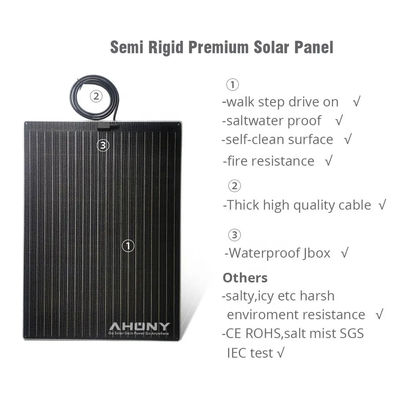

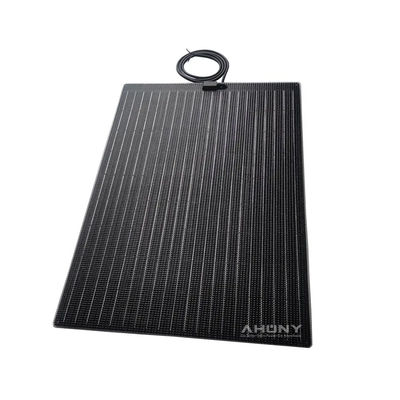

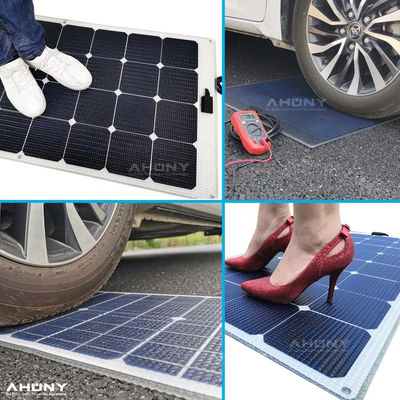

Walkable Solar Panel 60w 100w 120w 170w 190w 200w 235w For Boat Yacht Rv

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Semi Rigid Solar Module

Panel Dimensions:

670*1510*5mm

Cell Size:

158mm

Solar Cell Type:

PERC Monocrystalline Cell

Panel Efficiency:

22.5%

Warranty:

2years

Application:

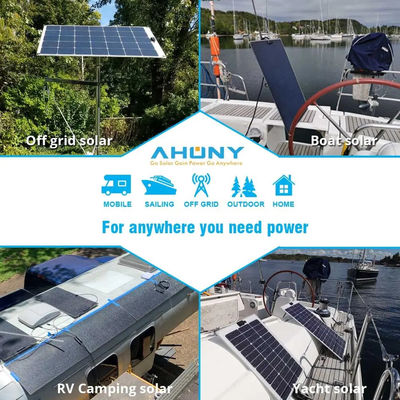

Boat Yacht Marine Camping Emergency Rv Fishing

Certificate:

CE,ROHS,S GS,IEC Salt Mist,High Temp Humidity Test

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

6000 Piece/Pieces per Month

Highlight:

Product Description

Walkable Solar Panel 60w 100w 120w 170w 190w 200w 235w For Boat Yacht Rv Charging Battery

Product Description

Model No.	eMarvel M190W series
Product Name	Solar Panel 190w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface.
Maximum Power[Wp]	190W
Solar Cell	PERC cell
Cell Array[Pcs]	4*9
Cell Efficiency	22.5%
Size[mm]	67015105mm
Max Power Voltage Vmp[V]	20.88V
Max Power Current Imp[A]	9.10A
Open Circuit Voltage Voc[V]	24.43V
Short Circuit Current Isc[A]	9.60A
Net.Weight[kg]	7kg
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.44
Temperature Coefficient Voc[[%/K]	-0.33
Temperature Coefficient Isc[[%/K]	0.06
Maximum System Voltage[V]	1000 V
