Semi Flexible 5BB Solar Panel 200w Bendable For Golf Car Van

Semi Flexible 5BB Solar Panel 200w Bendable For Golf Car Van

Brand Name: AHONY or OEM
Model Number: eGo S200M
MOQ: 4 pieces
Price: $130.00/pieces 4-99 pieces
Supply Ability: 5000 Piece/Pieces per Month
Detail Information
Place of Origin:
Guangdong, China
Product Name:
Semi Flexible Solar Panel
Cell Size:
158.75mmx158.75mm
Panel Dimensions:
670*1490*2mm
Panel Efficiency:
20.03%
Application:
Rroof Balcony Rv Vans Boat
Solar Cell:
158.75*158.75mm
Junction Box:
Waterproof IP67
Port:
Shenzhen
Packaging Details:
carton box
Supply Ability:
5000 Piece/Pieces per Month
Highlight:

Semi Flexible 5BB Solar Panel

,

5BB Solar Panel 200w

Product Description

200w Semi Flexible Solar Panel 5BB Cell For Balcony Rv Car Wall High Quality Ce Rohs Golf Car Van Bendable Flexible Sola

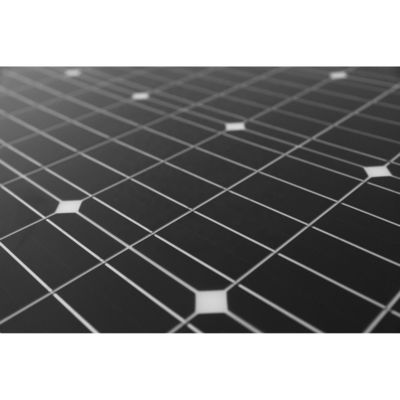

1. Solar cell: Made of Grade A PERC 5BB Monocrystalline solar cells 22.7% and more durable than other mono solar cells.



2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. ETFE also has self-cleaning abilities, ensures the best performance day after day.



3. Backboard: Durable fiberglass backboard with better heat dissipation and heat resistant PET board,which ensures a long lifetime. ETFE film and fiberglass backboard, it can withstand extreme environmental conditions, maintenance-free for years.



4. Ultra-thin:At only 3mm thick, the solar panel is powerful, waterproof, lightweight, durable, and highly resistant to the harsh operating conditions of a marine environment.Lightweight,only 1/3 of glass ones.



5. Installation: Can be fixed by adhesive, grommets, zip ties, or velcro; Can be installed without costly structural roof reinforcements. Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.




Model No. eGo S200M
Maximum Power[Wp] 200
Cell Monocrystalline solar cell
Cell Array[Pcs] 4*9
Cell Efficiency 22.7%
Size[mm] 670*1490*3
Max Power Voltage Vmp[V] 20.88
Max Power Current Imp[A] 9.58
Open Circuit Voltage Voc[V] 24.43
Short Circuit Current Isc[A] 10.35
Net.Weight[kg] 2.4
Power tolerance ±3%
NOCT 45±2
Certification CE ROHS



Semi Flexible 5BB Solar Panel 200w Bendable For Golf Car Van 0Semi Flexible 5BB Solar Panel 200w Bendable For Golf Car Van 1



Flexible solar panel

Semi Flexible 5BB Solar Panel 200w Bendable For Golf Car Van 2
