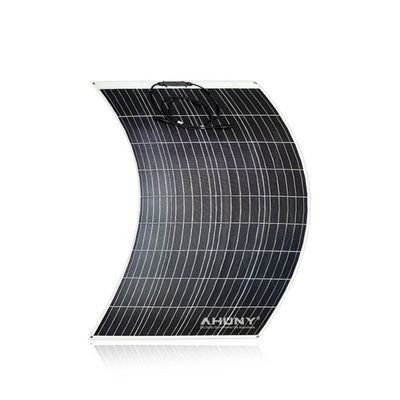

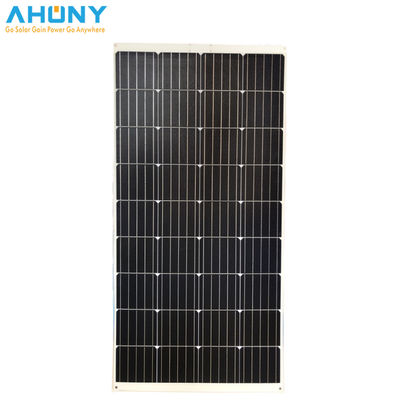

Lightweight 150 Watt Mono Solar Panel Custom ETFE Solar Panel For Camping Rv

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Light Weight Solar Panel

Cell Size:

158mmx158mm

Type:

PERC, Customized Solar Panel

Panel Dimensions:

660*1220*3

Panel Efficiency:

21.7%

Warranty:

1 Year, 1 Year

Solar Cell:

Mono 156*156 Cell

Certificate:

CE Rohs

Port:

Shenzhen

Packaging Details:

cortom

Supply Ability:

100000 Piece/Pieces per Month

Highlight:

Product Description

AHONY Light Weight Custom ETFE Semi Flexible 150watt Solar Panel Flexible Light Weight Mono Solar Panel For Camping Rv C

Product Description

Model No.	eGo S150M
Product Name	semi flexible solar panel
Maximum Power[Wp]	150
Solar Cell	Monocrystalline solar cell
Cell Array[Pcs]	4*9
Cell Efficiency	22.70%
Size[mm]	68011452
Max Power Voltage Vmp[V]	20.88
Max Power Current Imp[A]	7.18
Open Circuit Voltage Voc[V]	24.43
Short Circuit Current Isc[A]	7.76
Net.Weight[kg]	2.2
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	20A
Certification	CE ROHS
Surface/Backsheet	ETFE/white plastic
Maximum bend radius(θ)	20°

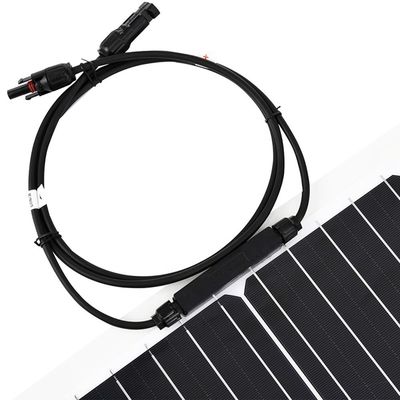

Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
