Sunpower Black Contact Walkable Solar Panel 120 Watt Semi Flexible For RV Marine Boat

Brand Name:	AHONY
Model Number:	eMarvel 120W
MOQ:	2 pieces
Price:	$170.40/pieces 2-99 pieces
Supply Ability:	2000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Solar Panel:

Walkable Semi Rigid Solar Panel

Cell Size:

125mmx125mm

Type:

IBC,Customized Solar Panel

Panel Dimensions:

550*1090*5mm

Panel Efficiency:

24.4%

Warranty:

2 Years

Solar Cell:

SunPower Maxeon Gen 7 Back Contact Cell

Certificate:

CE,ROHS,IEC Salt Mist,High Temp Humidity Test

Port:

Shenzhen

Packaging Details:

carton box

Supply Ability:

2000 Piece/Pieces per Month

Highlight:

Sunpower Walkable Solar Panel

Walkable Solar Panel 120w

Walkable 120 Watt Semi Flexible Solar Panel

Product Description

120w Sunpower Black Contact Walkable Semi Flexible Solar Panel Black Off Grid Solar Panel For RV Marine Boat Ocean

Advantage

The eMarvel light marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.

Now this light marine solar panel can bend a slightly angle,they are approved by CE,ROHS,S GS,certified under IEC standard.
AHONY uses high efficiency cell 25.4% back contact cells Gen III.We offer a wide ranges of customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.

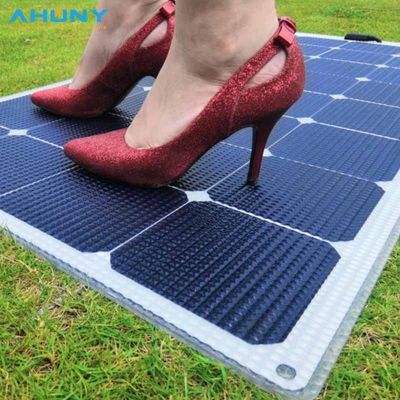

* Walkable and Anti-slippery
* Longer lifespan 15years guaranteed
* High temp resistance and little power loss
* Rigid,thin,light design for widely use
Solar cells can be:
Back contact cell;
Monocrystalline solar cell
HJT,bificial solar cells

Product Description

Model No.	eMarvel 120w
Feature	solar panel can walk on step on with rough surface anti slippery
Product Name	walkable solar panel 120w anti slippery surface rough ETFE from Japan for marine riverside boat yacht
Maximum Power[Wp]	120
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*8
Cell Efficiency	24.4%
Size[mm]	55010904
Max Power Voltage Vmp[V]	20.1
Max Power Current Imp[A]	5.97
Open Circuit Voltage Voc[V]	23.72
Short Circuit Current Isc[A]	6.45
Net.Weight[kg]	4.9
Power tolerance[%]	±3%
NOCT[℃]	46±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.236
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	+0.058
Maximum System Voltage[V]	1000V DC
Maximum Reverse Current[V]	10-20A
Flame retardancy	UL94 VTM-0
Certification and test	CE,ROHS,S GS,IEC,85°C& 85% humidity test
Maximum bend radius(θ)	5°
Cables and Connectors	APJB010,2m dual cores cable 2.5mm2 bare at end
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with installation hole

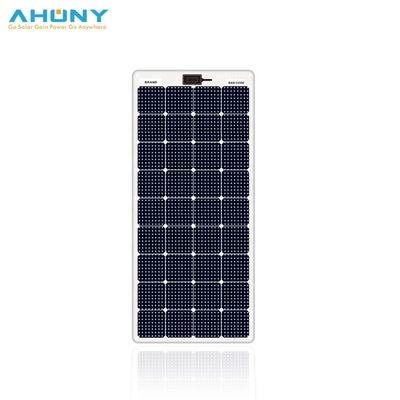

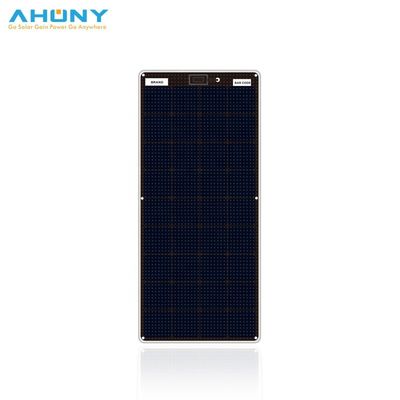

Sunpower Black Contact Walkable Solar Panel 120 Watt Semi Flexible For RV Marine Boat 0
