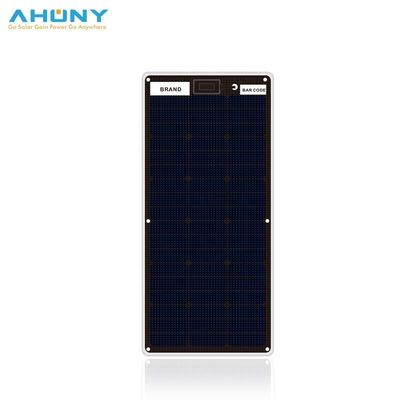

80w Mono Rigid Sunpower Bifacial Solar Panels Transparent Solar Panel High Efficiency

Brand Name:	AHONY
Model Number:	eMarvel L80W
MOQ:	10 pieces
Price:	$88.00/pieces 10-50 pieces
Supply Ability:	2000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Walkable Semi Rigid Lighter Solar Panel

Cell Size:

125mmx125mm

Type:

IBC,Rigid Light Solar Panel

Panel Dimensions:

510*890*5mm

Panel Efficiency:

23%

Warranty:

2 Years

Solar Cell:

SunPower Maxeon Gen 7 Back Contact Cell

Certificate:

CE ROHS

Packaging Details:

carton box

Supply Ability:

2000 Piece/Pieces per Month

Highlight:

Rigid Sunpower Bifacial Solar Panels

Transparent 80w Mono Solar Panel

Product Description

80w Sunpower Popular Bifacial Rigid Solar Panel Technology Transparent Solar Panel With High Efficiency

Product Description

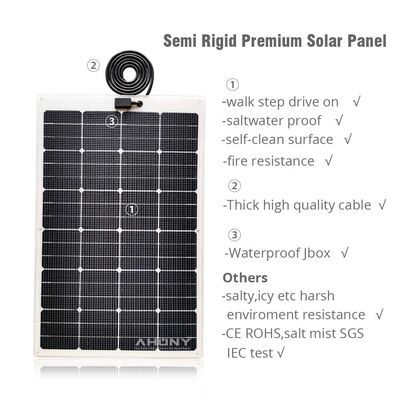

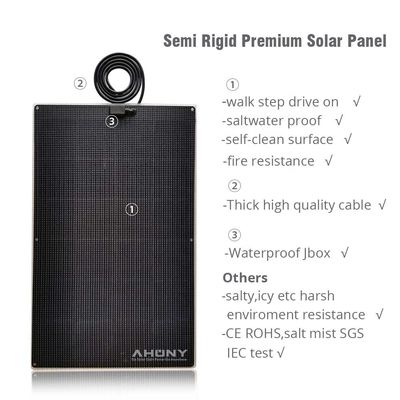

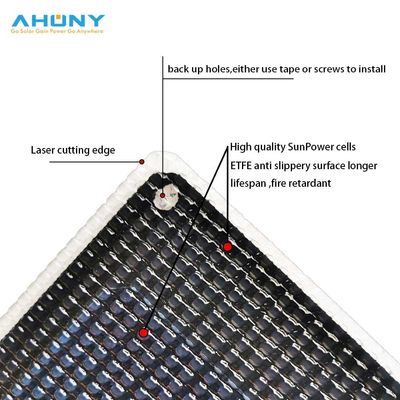

The panel uses a more expensive material (imported from Japan) called ETFE (Ethylene Tetrafluoroethylene) versus PET (Polyethylene terephthalate). The ETFE film layer absorbs light better with less reflection leading to more power per square inch.

Made of rigid back sheet. The ETFE material bonded with the rigid back sheet makes a stronger panel than a cheaper PET film one with less chance of cracking or water intrusion.
Highly stain-resistant and easily gets cleaned by the rain.
Highly resistant to seawater corrosion.
Waterproof and highly resistant to the harsh operating conditions of a marine environment.

For other details on this beautiful black solar panel Black 80 Watt Off Grid Portable Monocrystalline Solar Panel for RV Marine Boat.please search our website similar products or send enquriy to our sales representative.

Model No.	eMarvel L80w
Product Name	Rigid light solar panel
Maximum Power[Wp]	80
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	3*12
Cell Efficiency	23%
Size[mm]	5108905
Max Power Voltage Vmp[V]	20.88
Max Power Current Imp[A]	3.83
Open Circuit Voltage Voc[V]	24.64
Short Circuit Current Isc[A]	4.14
Net.Weight[kg]	3.6
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	10A
Flame retardancy	UL94 VTM-0
Certification and test	CE,ROHS,sg s,IEC salt mist,High temp humidity test
Maximum bend radius(θ)	5°
Cables and Connectors	APJB010,2m dual cores cable 2.5mm2 bare at end,50mm peel off
Warranty[Years]	3
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with silicon back up holes
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
