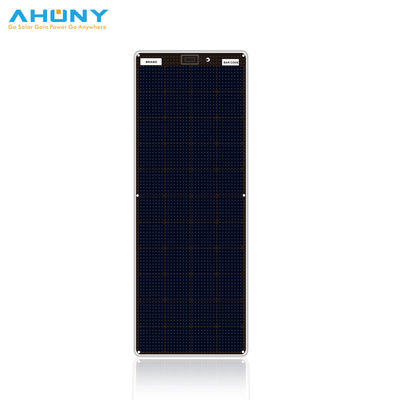

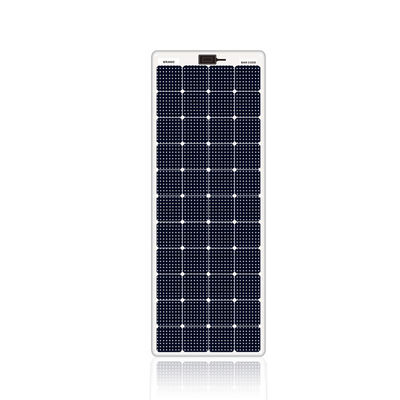

Sunpower 165W Rigid Walkable Solar Panel ETFE Surface For Boat Yacht Rv Roof

Brand Name:	OEM customer's brand
Model Number:	eMarvel 165w
MOQ:	2 pieces
Price:	$231.00/pieces 2-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Walkable Solar Panel 150W With Fast Delivery

Cell Size:

125mmx125mm

Type:

IBC, Standard Solar Panel

Panel Dimensions:

550*1470*5mm

Panel Efficiency:

24.4%

Warranty:

3 Years

Certificate:

ROHS ISO CE

Junction Box:

IP65 Waterproof

Solar Panel:

High Efficiency Flexible Solar Panel 120w

Packaging Details:

1pcs/carton box

Highlight:

Sunpower Walkable Solar Panel

165W Walkable Solar Panel

ETFE 165w Rigid Solar Panel

Product Description

AHONY Sunpower ETFE Surface Walkable Rigid Solar Panel 165W For Boat Yacht Rv Roof Home Solar System

Product Description

emarvel solar panel 150W with fast delivery uses high efficiency solar cell,USA back contact SunPower cell,cell efficiency is from 22.4% to 23.7%.ETFE surface from Japan,it can resist high temperature at 242℃,material transmittance is over 95%.More over,it has excellent tensile strength,low water absorption,makes the flexible panel higher waterproof.

Model No.	eMarvel 165w
Product Name	Rigid light solar panel
Maximum Power[Wp]	165
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*11
Cell Efficiency	24.40%
Size[mm]	55014705
Max Power Voltage Vmp[V]	27.63
Max Power Current Imp[A]	5.98
Open Circuit Voltage Voc[V]	31.77
Short Circuit Current Isc[A]	6.34
Net.Weight[kg]	6.2
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.27
Temperature Coefficient Voc[[%/K]	-0.236
Temperature Coefficient Isc[[%/K]	0.058
Maximum System Voltage[V]	200 V
Maximum Reverse Current[V]	0A<IR<2A
Flame retardancy	UL94 VTM-0
Certification and test	CE,ROHS,SGS,IEC salt mist,High temp humidity test
Maximum bend radius(θ)	5°
Cables and Connectors	APJB010,2m dual cores cable 2.5mm2 bare at end,50mm peel off
Warranty[Years]	3
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C

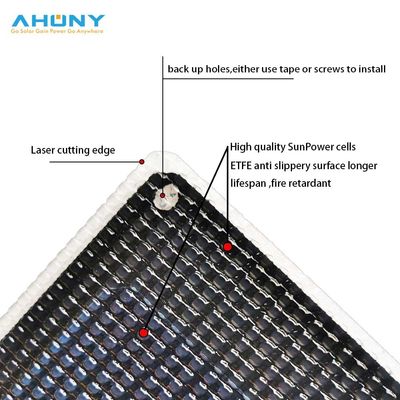

Other notes	round corner R10,with silicon back up holes
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Sunpower 165W Rigid Walkable Solar Panel ETFE Surface For Boat Yacht Rv Roof 0

Packaging & Shipping

This is mono flexible solar panel 120W with fast delivery,there are a lot of delivery option you can choose.

Sunpower 165W Rigid Walkable Solar Panel ETFE Surface For Boat Yacht Rv Roof 3

Our Services

AHONY offer a series of mono flexible solar panel 120W with fast delivery after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
