Flexible Monocrystalline Bendable Solar Panel module transparent Marine Boat 175w 18v 12v Lightweight Waterproof

Brand Name:	Ahony Power
Model Number:	eGo S175W
MOQ:	10 pieces
Price:	$1.02/pieces 10-99 pieces
Supply Ability:	10000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Product Model:

EGo S 175w

Brand:

Ahony Power

Solar Cell:

SunPower Or PERC

Cell Size:

125mm

Panel Dimensions:

680*1325*3mm

Panel Efficiency:

23.7%

Power:

175W

Warranty:

1 Year

OEM Order:

Yes

Certificate:

CE RoHS

Packaging Details:

carton

Supply Ability:

10000 Piece/Pieces per Month

Highlight:

Bendable Solar Panel 175W

Bendable Solar Panel 18V

Flexible Monocrystalline Solar Panel Waterproof

Product Description

Mono Solar Panel Flexible 175W 18V 12V Solar Panel Monocrystalline Cell Flexible Bendable Lightweight Waterproof Off Gri

Product Description

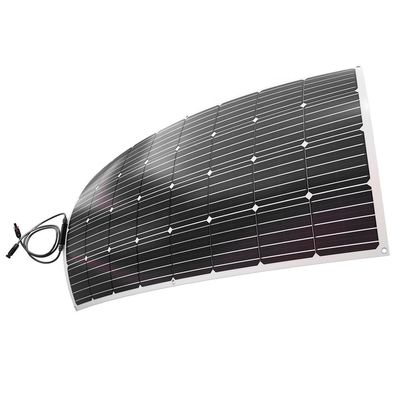

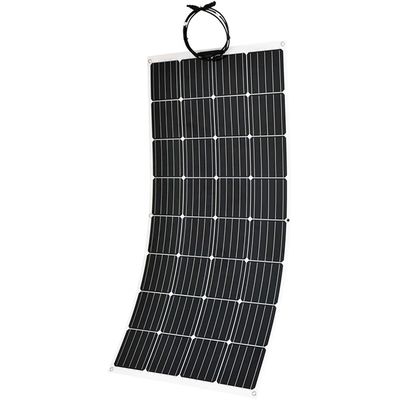

eGo S mono solar panel flexible 120W 18V 12V Solar Panel Monocrystalline Cell Flexible Bendable Lightweight Waterproof Off grid uses high efficiency solar cell,USA back contact SunPower cell,cell efficiency is from 22.4% to 23.7%.ETFE surface from Japan,it can resist high temperature at 242℃,material transmittance is over 95%.More over,it has excellent tensile strength,low water absorption,makes the flexible panel higher waterproof.

eGo S is more flexible than conventional cell flexible like eGo P,it can bend 30° arc at maximum,It’s aerodynamic design that can reduce wind resistance when install on rooftop of RV or yacht.

eGo S is perfect for all mobile use like caravan,boat,marine,motor etc.There are different power and size from 7w to 150w.Also two colours white and black can be used for any panel.Currently flexible solar panel is widely used for mobile,marine,camping industry,Now more and more people concern about eGo S flexible.

Model No.	eGo S175w
Features	Flexible Monocrystalline Bendable Solar Panel Module Transparent Marine Boat 175w 18v 12v Lightweight Waterproof
Product Name	Semi-Flexible Solar Panel
Maximum Power[Wp]	175
Solar Cell	Back Contact Cell
Cell Array[Pcs]	5*10
Cell Efficiency	24.40%
Size[mm]	68013253
Max Power Voltage Vmp[V]	29.85
Max Power Current Imp[A]	5.87
Open Circuit Voltage Voc[V]	35.22
Short Circuit Current Isc[A]	6.21
Net.Weight[kg]	3.5
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	20A
Certification	CE ROHS
Surface/Backsheet	Japan ETFE/white plastic
Maximum bend radius(θ)	30°

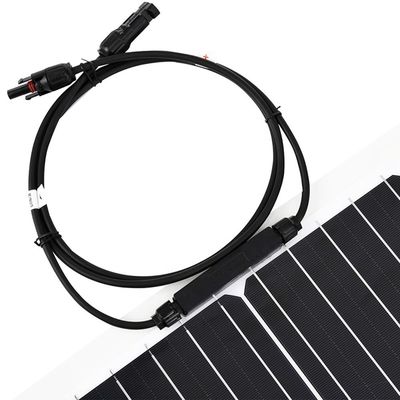

Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Flexible Monocrystalline Bendable Solar Panel module transparent Marine Boat 175w 18v 12v Lightweight Waterproof 0

Packaging & Shipping

This is mono flexible solar panel 120W with fast delivery,there are a lot of delivery option you can choose.

Flexible Monocrystalline Bendable Solar Panel module transparent Marine Boat 175w 18v 12v Lightweight Waterproof 2

Our Services

AHONY offer a series of mono flexible solar panel 120W with fast delivery after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact mono solar panel bendable type to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
