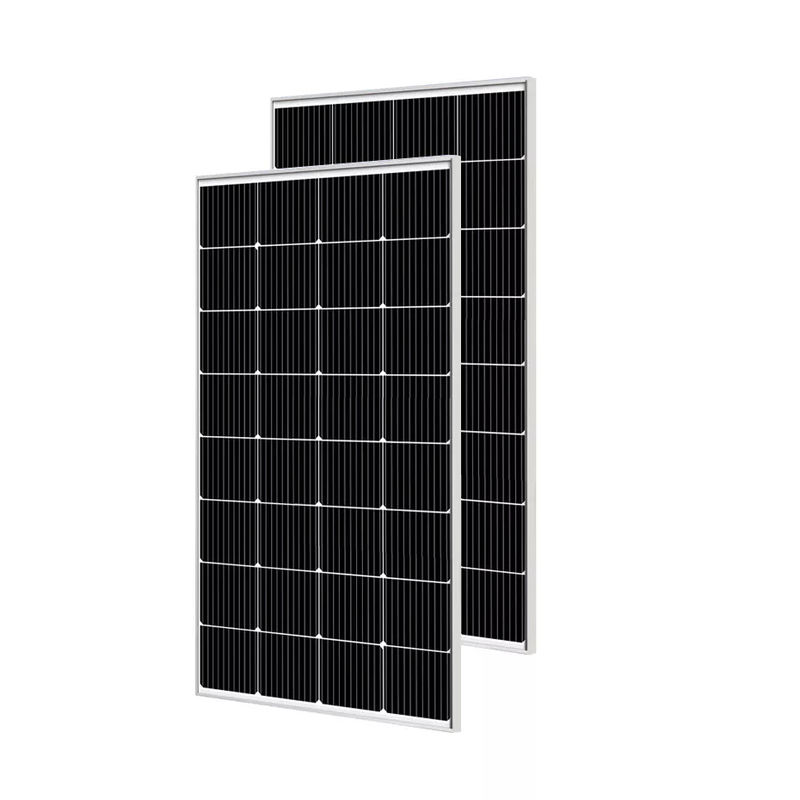

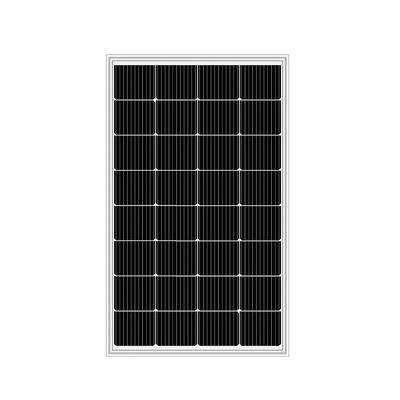

Bifacial Perc Mono Solar Panel 200w Back Contact Cell CE ROHS Certificated

Brand Name:	AHONY or OEM
Model Number:	eRigid M200w
MOQ:	10 pieces
Price:	$98.00/pieces 10-49 pieces
Supply Ability:	5000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Bifacial Perc Solar Panel Mono 200w

Panel Dimensions:

1110*992*40mm

Cell Size:

158mm

Type:

PERC,Standard Solar Panel

Panel Efficiency:

22.5%

Use:

RV Boat Cottage And Industrial Systems Caravans Vacation Home

Frame:

Silver Frame

Cell Type:

Mono Solar Cell 6inch

Back Sheet:

White Or Black Backsheet

Certificate:

CE ROHS

Warranty:

5 Years

Packaging Details:

carton box for bifacial perc solar panel mono 200w back contact cell for RVs boats cottages and industrial systems caravans vacation home

Supply Ability:

5000 Piece/Pieces per Month

Highlight:

Mono Solar Panel 200w

ROHS Mono Solar Panel

Bifacial Perc Solar Panel 200w

Product Description

Bifacial Perc Solar Panel Mono 200w Back Contact Cell For RVs Boats Cottages And Industrial Systems Caravans Vacation Ho

Thank you for viewing our bifacial perc solar panel mono 200w back contact cell for RVs boats cottages and industrial systems caravans vacation home,here are details.

Product Description

Monocrystalline solar panel uses A grade bifacial PERC solar cells,with cell efficiency over 21.3%,the latest cell technology,the Jbox are waterproof IP65,cables are with UV resistanct which is suitable for outdoor.

Model No.	eRigid M200w
Product Name	bifacial perc solar panel mono 200w back contact cell for RVs boats cottages and industrial systems caravans vacation home
Maximum Power[Wp]	200
Solar Cell	A grade mono solar cell 9BB
Cell Array[Pcs]	4*9
Cell Efficiency	22.70%
Size[mm]	680149035
Max Power Voltage Vmp[V]	20.52
Max Power Current Imp[A]	9.75
Open Circuit Voltage Voc[V]	24.15
Short Circuit Current Isc[A]	10.28
Net.Weight[kg]	11
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	20A
Certification	CE ROHS
Surface/Backsheet	Glass/silver frame/white backsheet
Cables and Connectors	Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Package	1pcs/carton box and plywood pallet
