Mono Solar Panel
Created with Pixso.

Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road

Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road

Brand Name: OEM or AHONY
Model Number: eGo S50w
MOQ: 10 pieces
Price: $39.90/pieces 10-99 pieces
Detail Information
Place of Origin:
Guangdong, China
Product Name:
Black Fiber ETFE Surface 50w Solar Panel
Panel Dimensions:
540*650*3mm
Cell Size:
158.75mmx158.75mm
Type:
PERC, Standard Solar Panel
Solar Panel:
Japan ETFE Surface
Color:
White Or Black
Eyelet:
Stainless Steel
Certificate:
CE ROHS,ISO, ISO CE ROHS
Material:
PET Surface Fibre Backsheet Solar Panel
Application:
Raw Material For Foldable Solar Kit 50w 100w
Warranty:
1 Year
Packaging Details:
carton and plywood pallet for black fiber solar panel 50w pet surface flexible solar panel for attic fan float buoy Mast on yacht rv camping travel off road
Highlight:

ETFE 50w Flexible Solar Panel

,

Black Fiber 50w Flexible Solar Panel

Product Description

Black Fiber ETFE Surface 50w Solar Panel For Attic Fan Float Buoy Mast On Yacht Rv Camping Travel Off Road

Product Description

This is our fibre glass solar panel 50w pet surface solar panel for camping light solar blanket,please feel free to contact our solar panel sales representative.

Mono  grade PERC cell,efficiency 21.3%;

resilient,thin,light and aerodynamic design;

PET surface+solid strong fibreglass backsheet 0.8-1.2mm;

Waterproof Jbox that is full of silicon gel;

Flexible Solar Panel: The plastic back sheet fibre glass backsheet solar panel can be curved to a maximum 30 degree arc and mounted on an RV, boat, cabin, tent, or any other irregular surface

Customize PET flexible fibre solar panels is acceptable.



main advantage:

  • High Conversion:The solar cell+ ETFE layer is made from US, up to 20.5% efficiency, while most panels in the the market is 15% or even lower, you will get greater power efficiency even though the panel is no larger than a traditional mode
  • High Process: Advanced lamination of ETFE, be free from maintenance, the age of ETFE laminated membrane is up to 25 years
  • Powerful and Lightweight: This solar panel packs 50W of power, but it only weighs a mere 2.3lbs(1.05kg), making it easier to transport, hang and remove; Unique frameless design and four metal reinforced mounting holes for easy installation
  • Flexible Solar Panel: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on an RV, boat, cabin, tent, or any other irregular surface
  • What you get: 50W bendable solar panel, instruction manual, more than 10 years output guarantee and friendly customer service



Product   Name black fiber solar panel 50w pet surface flexible solar panel for attic fan float buoy Mast on yacht rv camping travel off road
Maximum   Power[Wp] 50w
Solar Cell A grade mono solar cell PERC fibre solar panel
Cell   Array[Pcs] 4*9
Cell   Efficiency 21.7%
Size[mm] 540*560*3mm
Max Power   Voltage Vmp[V] 20.26v
Max Power   Current Imp[A] 2.47
Open Circuit   Voltage Voc[V] 24.01
Short Circuit   Current Isc[A] 2.67
Net.Weight[kg] 1.2
NOCT[℃] 45±2
Operating   Temperature[℃] -40/+85
Temperature   Coefficient Pmax[%/℃] -0.3
Temperature   Coefficient Voc[[%/℃] -1.74mV
Temperature   Coefficient Isc[[%/℃] 0.05
Maximum System   Voltage[V] 100 V
Maximum   Reverse Current[V] 10A
Certification CE ROHS
Surface/Backsheet ETFE/PET

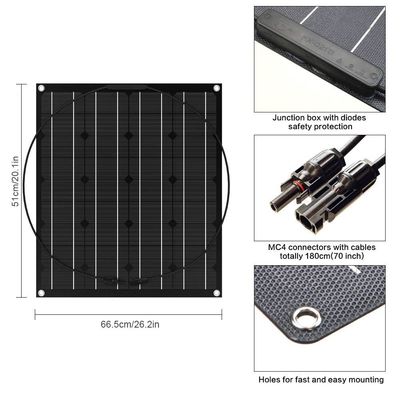

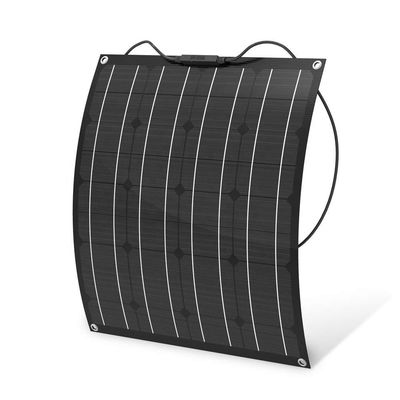

Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road 0

Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road 1

Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road 2

Packaging & Shipping

 We off high quality packing for customer,OEM printing for flexible solar panel,customize boxes for order MOQ ocer 500pcs.



Our Services

 AHONY offer a series of after sale service for black fiber solar panel 50w pet surface flexible solar panel for attic fan float buoy Mast on yacht rv camping travel off road:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with products and service.



Company Information

 Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road 3Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road 4Black Fiber ETFE Surface 50w Flexible Solar Panel For Yacht Rv Camping Travel Off Road 5

FAQ



Q:How many years lifespan is the flexible solar panel have?
A:more than 10 years.

Q:what is the warranty you offer?


A:1 year warranty free replacement.

Q:What is the bend angle of this flexible solar panel?


A:max bend angle 30degree,our company have reference size to guide customer to bend,
please do not over bending.
