PERC Mono Solar Panel Lightweight Flexible Flexible 100w Solar Panel For Rv Camping

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Light Weight Solar Panel

Cell Size:

158.75mmx158.75mm

Type:

PERC, Customized Solar Panel

Panel Dimensions:

510*1035*2

Panel Efficiency:

22.6%

Warranty:

1 Year, 1 Year

Solar Cell:

Mono 156*156 Cell

Certificate:

CE ROHS

Port:

Shenzhen

Packaging Details:

cortom

Supply Ability:

100000 Piece/Pieces per Month

Highlight:

Product Description

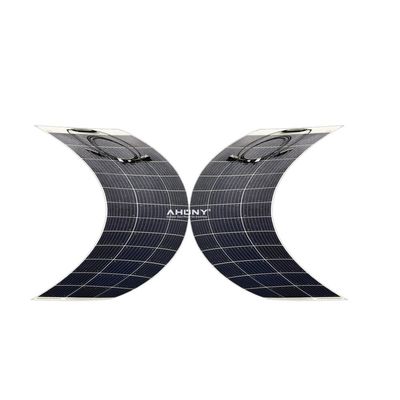

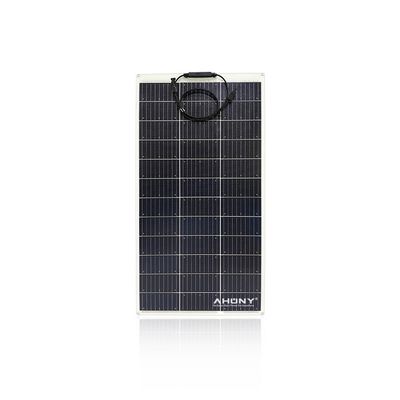

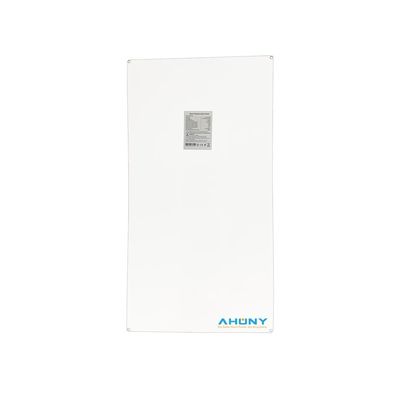

Light Weight Mono Flexible Solar Panel 100W For Rv Camping Ocean Use

Product Description

Product Name	eGo S100M
Maximum Power[Wp]	100
Solar Cell	PERC Monocrystalline solar cell
Cell Array[Pcs]	3*12
Cell Efficiency	22.70%
Size[mm]	51010352
Max Power Voltage Vmp[V]	20.52
Max Power Current Imp[A]	4.87
Open Circuit Voltage Voc[V]	24.01
Short Circuit Current Isc[A]	5.14
Net.Weight[kg]	22
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	200 V
Maximum Reverse Current[V]	10A
Certification	CE ROHS
Surface/Backsheet	ETFE/white plastic
Maximum bend radius(θ)	10°-20°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
Lead time	within 12-15working days after payment confirmed.
Payment terms	30% in advance as deposit balance before shipment.
Price Terms	FOB Shenzhen,China.
Warranty	Power output will be at least 95% after 5 years and more than 85% after 10 years,1 year repair/replacement.
