100 Watt Mono Solar Panel Solar PV Module Rv Semi Flexible Solar Power System for boat bimini yacht balcony fence awning

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Product Name:

Semi Flexible Solar Panel

Maximum Power:

100w

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

510*1035*2

Cell Efficiency:

22.7%

Solar Cell:

HCF/ HJT 158*158 Cell

Warranty:

1 Year

Weight:

2.2

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

6000 Piece/Pieces per Month

Highlight:

Product Description

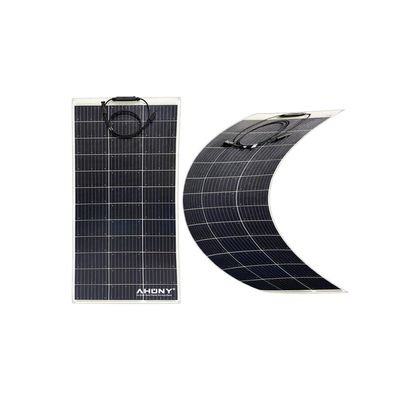

AHONY 100w Mono Flexible Solar Panel Max Bend 65 Degree High Efficiency Solar Cell Solar PV Module RV System Semi Flexible

【High Power Output】 The 100W Flexible Monocrystalline Solar Panel can provide an average of 500 Watt-hours of electricity per day (caculates with 5 hours sunlight).

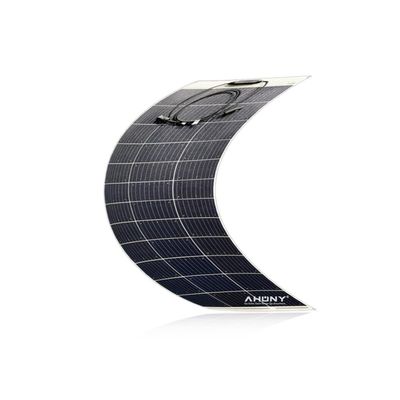

【Easy to Transport, Carry and Install】 The solar panel suits most curved surfaces as it is bendable within 240 degrees. It weighs only 1/2 of the rigid panel and presents an all-black glare-free appearance.
【Industry-leading Tech】 It is equipped with half-cut PERC cell technology that enhances solar light capture and electrical performance, therefore improving the output efficiency.
【Reliable and Durable】 This solar panel accomplishes with IP67 rated waterproof junction box and solar connectors. Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind.
【Ready for Installation】 The panel comes with pre-drilled mounting holes and 12 AWG 27.6 in long solar connector cables for quick and easy installation.

Product Description

Model number	eGo S100M
Product name	100 Watt Mono Solar Panel Solar PV Module Rv Semi Flexible Solar Power System for boat bimini yacht balcony fence awning
Max power [wp]	100
solar cell	monocrystalline solar cell
cell array [pcs]	3*12
cell efficiency	22.7%
Size [mm]	51010352
Maximum supply voltage vmp [v]	20.26
Maximum power current imp [a]	4.94
open circuit voltage voc [v]	24.01
Short-circuit current isc [a]	5.33
Net weight [kg]	1.7
Power tolerance [%]	±3%
Noct [°C]	45±2
Operating temperature [℃]	-40/+85
Temperature coefficient pmax [%/℃]	-0.43
Temperature coefficient voc [[%/℃]	-0.34
Temperature coefficient isc [[%/℃]	0.05
Maximum system voltage [v]	1000V
maximum reverse current [v]	10a
certification	Ce rohs

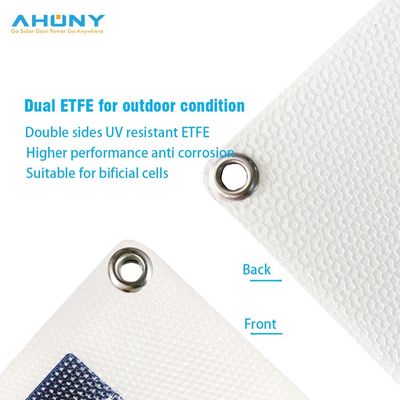

front/backsheet	Etfe/white plastic
Maximum bend radius (& theta;)	60°
