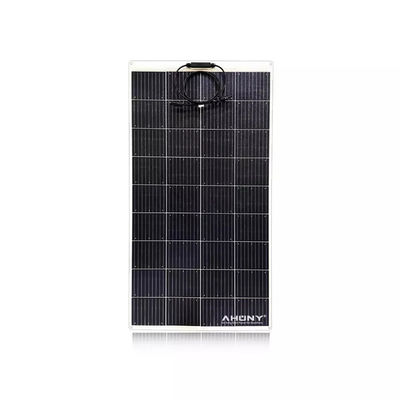

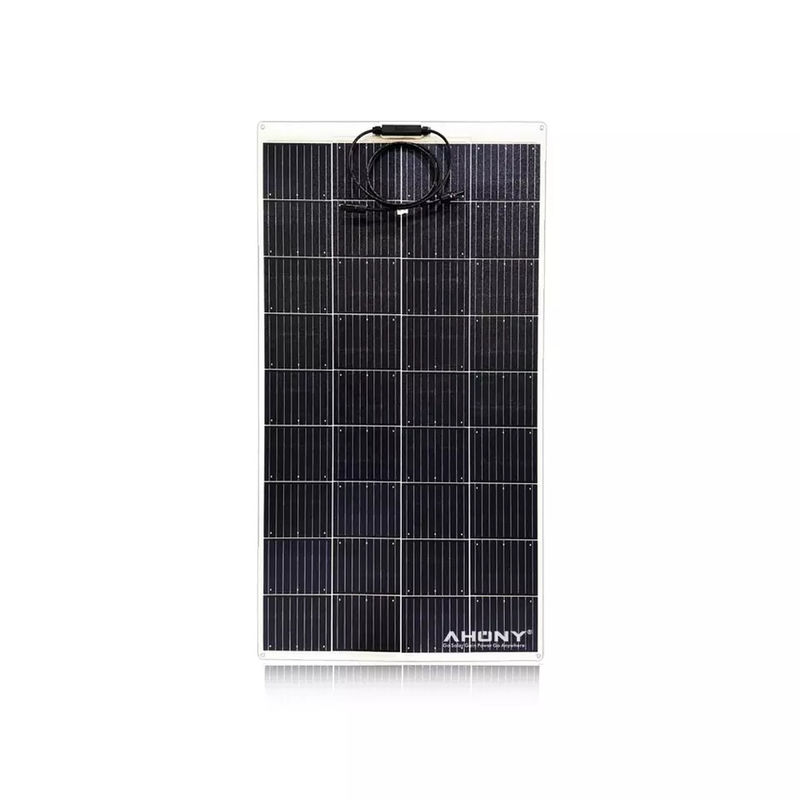

Ultralight Mono Solar Panel Semi Flexible 300w Monocrystalline Solar Panel

Detail Information

Place of Origin:

Guangdong, China

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

1000*1515*2

Panel Efficiency:

22.7%

Product Name:

300W Solar Panel Flexible Solar Panel

Application:

RV Boat Marine

Solar Cell:

158.75mmx158.75mm

Certificate:

CE ROHS ISO

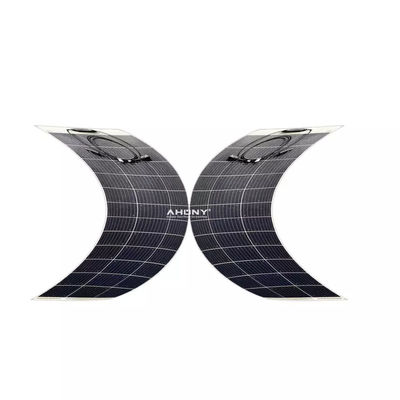

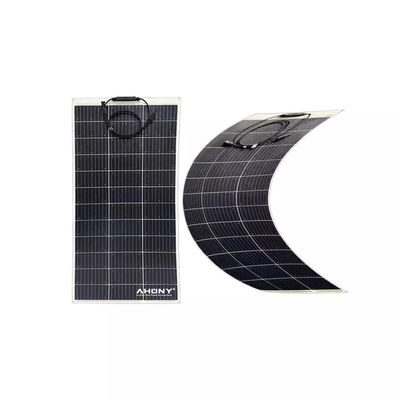

Max Bend Angle:

60 Degree

Port:

Shenzhen

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

20000 Piece/Pieces per Month

Highlight:

Product Description

300w Semi Flexible Solar Panel Mono Cell For Rv Camp Solar Module

Product Description

odel No.	eGo S300M
Product Name	semi flexible solar panel
Maximum Power[Wp]	300
Solar Cell	Monocrystalline solar cell
Cell Array[Pcs]	6*9
Cell Efficiency	22.7%
Size[mm]	100015152
Max Power Voltage Vmp[V]	31.32
Max Power Current Imp[A]	9.58
Open Circuit Voltage Voc[V]	36.64
Short Circuit Current Isc[A]	10.34
Net.Weight[kg]	4.6
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	10A
Certification	CE ROHS
Surface/Backsheet	ETFE/white plastic
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
