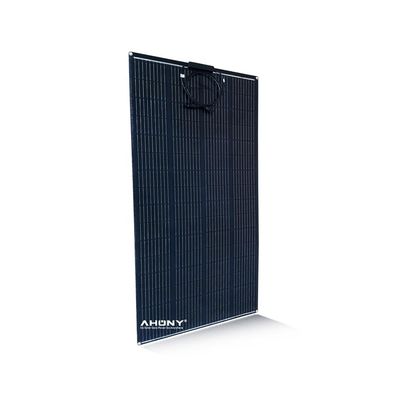

Ultralight Semi Flexible Solar Panel

Detail Information

Place of Origin:

Guangdong, China

Power:

200w 210w

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

670*1490*3mm

Cell Efficiency:

24%

Cell:

HJT Solar Cell

Junction Box:

Waterproof IP65

Certificate:

CE ROHS

Port:

Shenzhen

Packaging Details:

carton box for 200w 210w

Supply Ability:

20000 Set/Sets per Month

Highlight:

Product Description

200w 210w HJT Cell Semi Flexible Solar Panel Etfe Rv Awning Transparent Bificial Module Solar Off Grid Solar System

Product Description

1, latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2. MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S200M	eGo S210M
Product Name	semi flexible solar panel	semi flexible solar panel
Maximum Power[Wp]	200	210
Solar Cell	HJT	HJT
Cell Array[Pcs]	4*9	4*9
Cell Efficiency	22.7%	24%
Size[mm]	68015153	68015153
Max Power Voltage Vmp[V]	20.88	22.32
Max Power Current Imp[A]	9.58	10.06
Open Circuit Voltage Voc[V]	24.43	24.43
Short Circuit Current Isc[A]	10.34	10.86
Net.Weight[kg]	3.20	3.2
Power tolerance[%]	±3%	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	0.031
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS

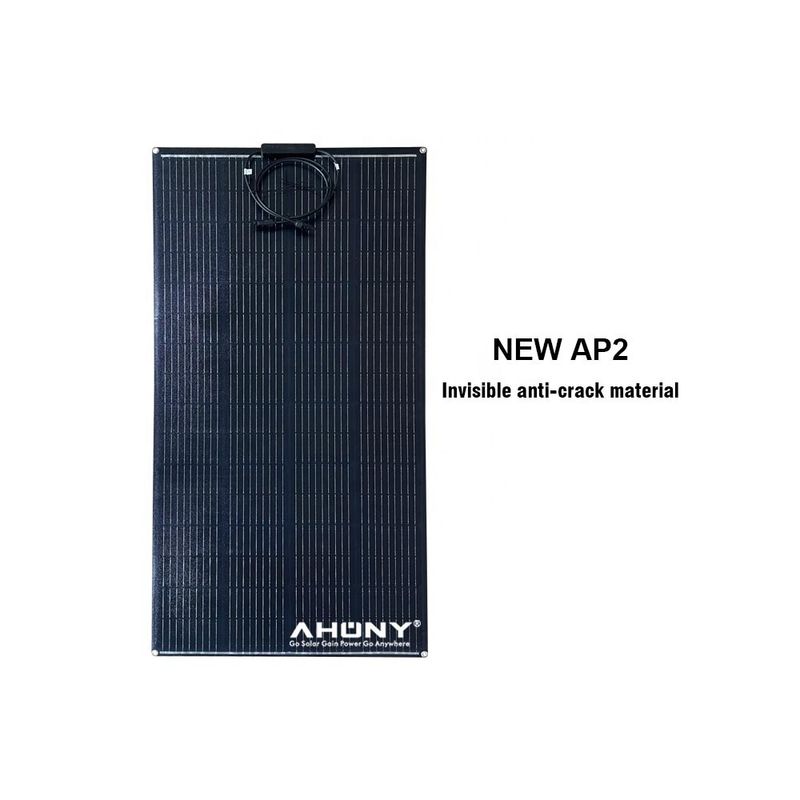

Surface/Backsheet	ETFE+AP2

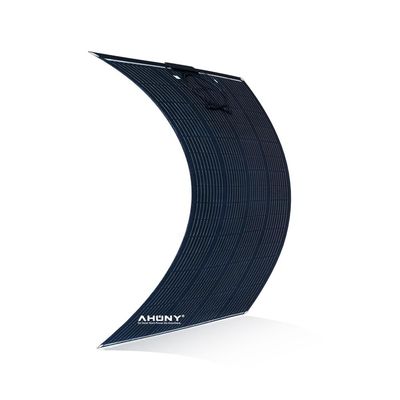

Maximum bend radius(θ)	60°
Cables and Connectors	Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
