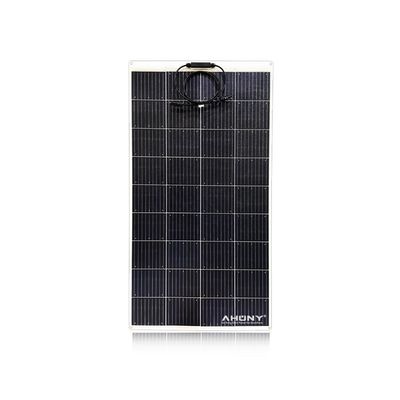

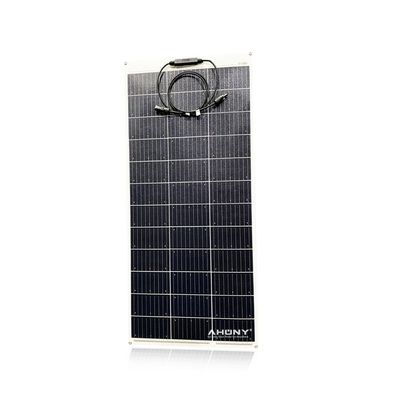

Monocrystalline Custom Flexible Solar Panel 50w 70w 100w 150w Camping Solar Panel

Detail Information

Place of Origin:

Guangdong, China

Product Name:

50W Solar Panel Flexible Solar Panel

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

350*820*2mm

Panel Efficiency:

22.7%

Certificate:

CE ROHS ISO

Warranty:

1 Year

Solar Cell:

Monocrystalline Solar Cell

Application:

RV Boat Marine

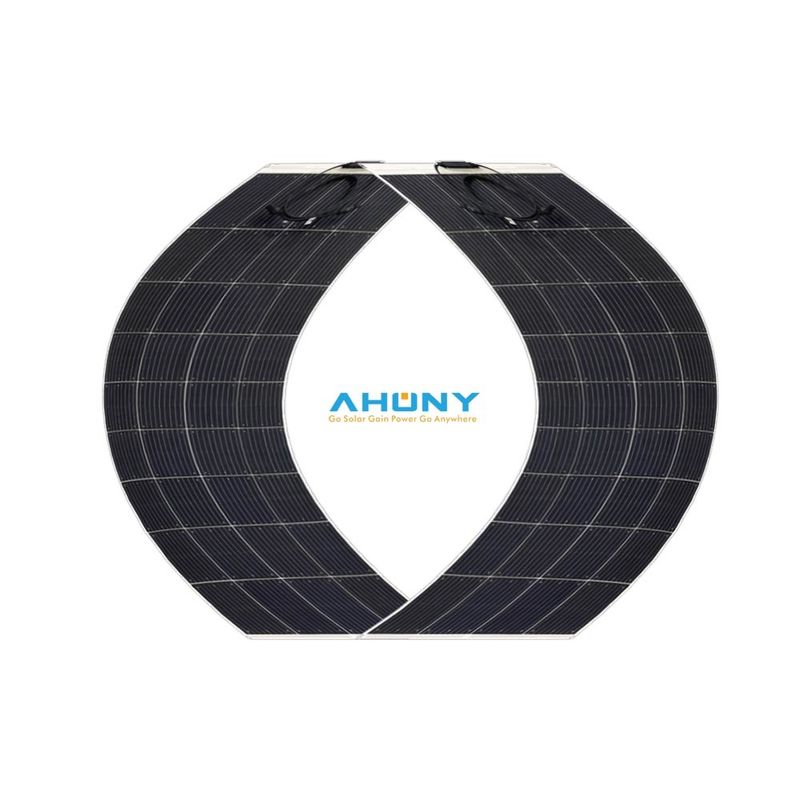

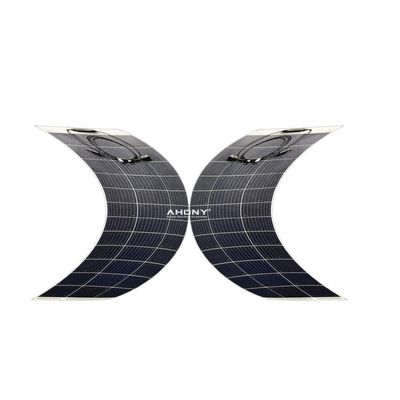

Max Bend Angle:

65 Degree

Port:

Shenzhen

Packaging Details:

1pcs/bubble plastic bag,then in 1 carton box

Supply Ability:

1000 Piece/Pieces per Month

Highlight:

Product Description

Flexible Solar Panel Custom 50w 70w 100w 150w Flexible Solar Module For Rv Marine Boat Camping Yacht Home Use

50w flex solar panel HCF surface semi flexible solar panel for RVs boats campers

Support ODM

Model No.	eGo S 50M
Product Name	Semi flexible solar panel
Maximum Power[Wp]	50
Solar Cell	HJT HCF solar cell
Cell Array[Pcs]	3*12
Cell Efficiency	22.7%
Size[mm]	3508202
Max Power Voltage Vmp[V]	20.52
Max Power Current Imp[A]	2.44
Open Circuit Voltage Voc[V]	24.01
Short Circuit Current Isc[A]	2.57
Net.Weight[kg]	1
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	0.031
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	IR<2A<-0
Certification	CE ROHS
Surface/Backsheet	ETFE+Ap2

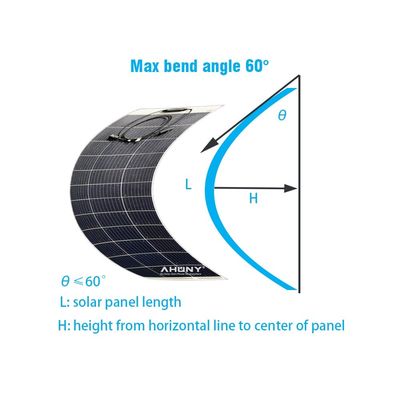

Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
