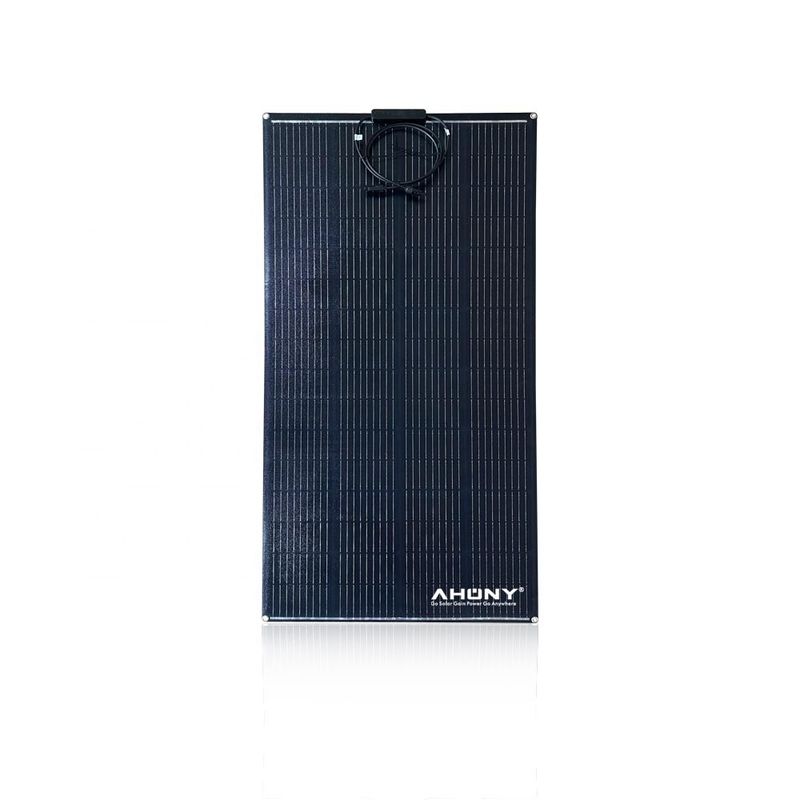

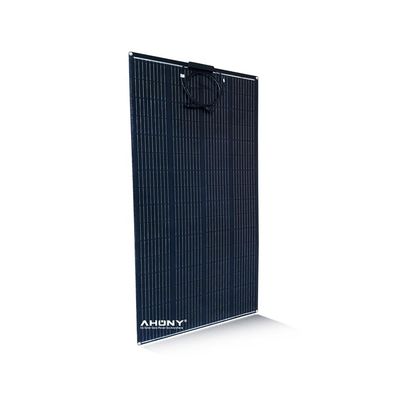

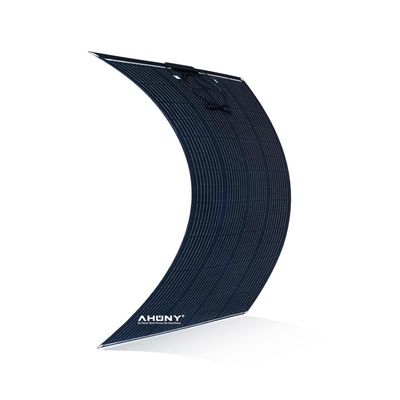

Flexible 210w Bendable Solar Panel Etfe Rv Awning Transparent Bifacial PV Module

Detail Information

Place of Origin:

Guangdong, China

Power:

210w

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

670*1490*3mm

Cell Efficiency:

24%

Solar Cell:

HJT

Junction Box:

Waterproof IP65

Application:

Home,Camping,Motorhome,marine

Certificate:

CE ROHS

Port:

Shenzhen

Packaging Details:

carton box for 200w 210w

Supply Ability:

20000 Set/Sets per Month

Highlight:

Product Description

210w HJT High Solar Cell Flexible Solar Panel Etfe Rv Awning Off Grid Solar System Transparent Bificial Pv Modul

Product Description

1, latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2. MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S210M
Product Name	semi flexible solar panel
Maximum Power[Wp]	210
Solar Cell	HJT
Cell Array[Pcs]	4*9
Cell Efficiency	24%
Size[mm]	67014903
Max Power Voltage Vmp[V]	22.32
Max Power Current Imp[A]	8.97
Open Circuit Voltage Voc[V]	26.33
Short Circuit Current Isc[A]	9.49
Net.Weight[kg]	3.2
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.41
Temperature Coefficient Voc[[%/℃]	-0.32
Temperature Coefficient Isc[[%/℃]	0.04
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2

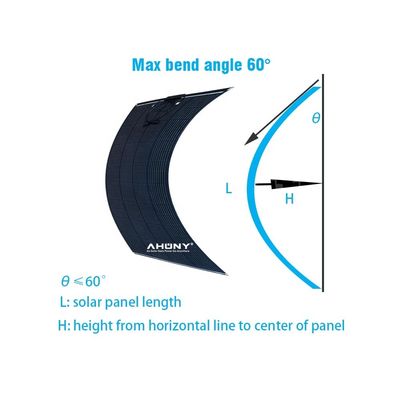

Maximum bend radius(θ)	60°
Cables and Connectors	Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
