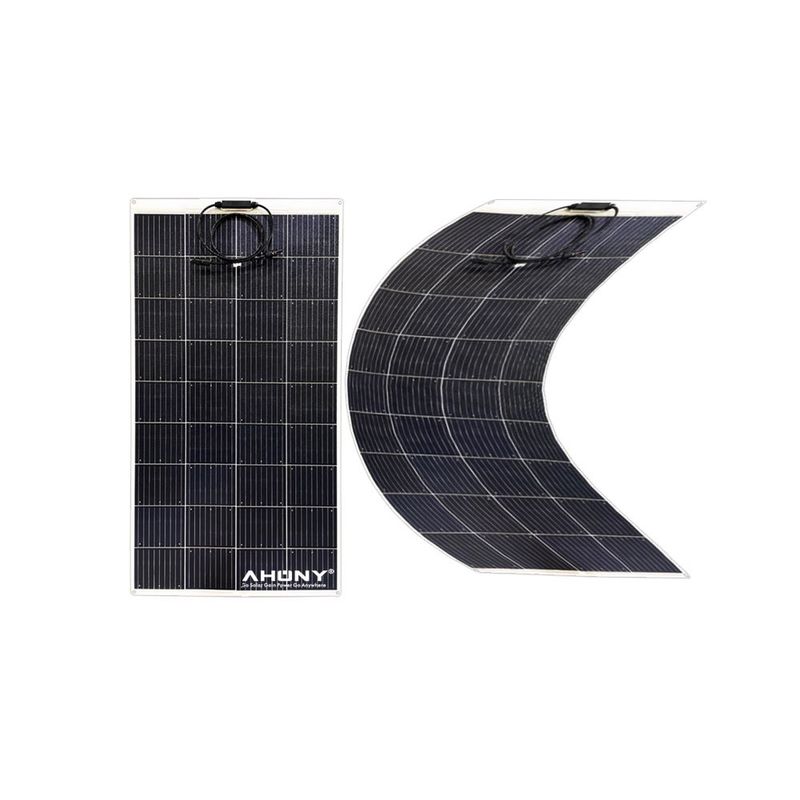

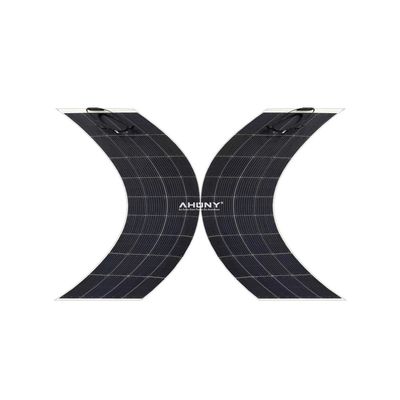

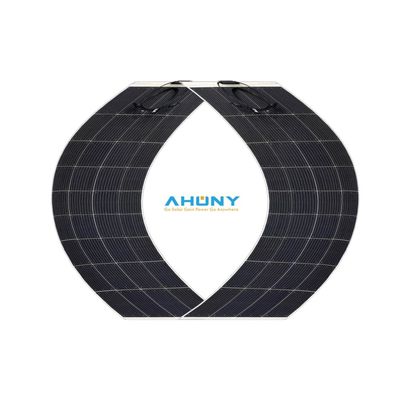

Lightweight 250w Flexible Solar Panel

Detail Information

Place of Origin:

Guangdong, China

Product Name:

250W Solar Panel Flexible Solar Panel

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

Half 830*15150*2

Panel Efficiency:

22.7%

Certificate:

CE ROHS ISO

Warranty:

1 Year

Solar Cell:

Monocrystalline Solar Cell

Application:

RV Boat Marine

Max Bend Angle:

60 Degree

Port:

Shenzhen

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

20000 Piece/Pieces per Month

Highlight:

Product Description

250w Flexible Solar Panels Lightweight Solar Panels HJT Cell ETFE For Boat Rv Camp Solar Module

Product Description

1, latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2. MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Product Name	semi flexible solar panel
Maximum Power[Wp]	250
Solar Cell	HJT HCF solar cell
Cell Array[Pcs]	5*9
Cell Efficiency	22.50%
Size[mm]	84014902
Max Power Voltage Vmp[V]	26.10
Max Power Current Imp[A]	9.58
Open Circuit Voltage Voc[V]	30.54
Short Circuit Current Isc[A]	10.34
Net.Weight[kg]	4.20
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	0.031
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
