Ultralight Balcony Bendable Solar Panel Waterproof 100w photovoltaic Semi Flexible Solar Panel laminator enegy system

Brand Name:	OEM
Model Number:	eGo S100M
MOQ:	10 pieces
Price:	$68.00/pieces 10-99 pieces
Supply Ability:	10000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Product Name:

100W Solar Panel Flexible Solar Panel

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

690*900*2mm

Panel Efficiency:

25%

Certificate:

CE ROHS ISO

Warranty:

1 Year

Solar Cell:

Monocrystalline Solar Cell

Application:

RV Boat Marine

Max Bend Angle:

65 Degree

Port:

ShenZhen

Packaging Details:

carton for 120w semi rigid solar module

Supply Ability:

10000 Piece/Pieces per Month

Highlight:

Ultralight Bendable Solar Panel

Bendable Solar Panel Waterproof

Waterproof 100w Semi Flexible Solar Panel

Product Description

Ultralight Balcony Solar Panel High Efficiency OEM Terrace Waterproof 100w HCF Surface Semi Flexible Solar Panel Off Gri

100w flex solar panel HCF surface semi flexible solar panel for Balcony RVs boats campers

AHONY 100w mono flexible solar panel max bend 65degree hight efficiency solar cell solar pv module rv system semi flexible pv

Support ODM

Product Description

Model No.	eGo S100M-Balcony
Product Name	Ultralight Balcony Bendable Solar Panel Waterproof 100w photovoltaic Semi Flexible Solar Panel laminator enegy system
Maximum Power[Wp]	100
Solar Cell	Monocrystalline solar cell
Cell Array[Pcs]	4*14
Cell Efficiency	22.70%
Size[mm]	6909002
Max Power Voltage Vmp[V]	35.16
Max Power Current Imp[A]	2.84
Open Circuit Voltage Voc[V]	41.14
Short Circuit Current Isc[A]	3.07
Net.Weight[kg]	1.7
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	0.031
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Ultralight Balcony Bendable Solar Panel Waterproof 100w photovoltaic Semi Flexible Solar Panel laminator enegy system 0

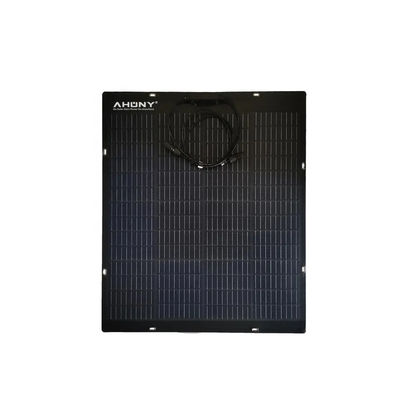

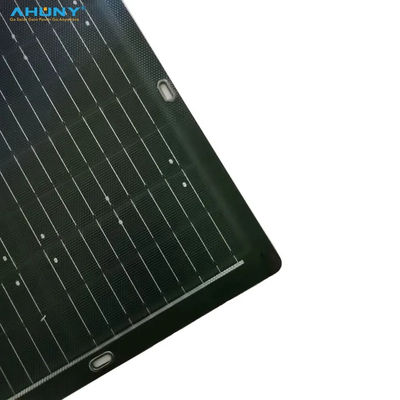

Flexible solar panel

Ultralight Balcony Bendable Solar Panel Waterproof 100w photovoltaic Semi Flexible Solar Panel laminator enegy system 2

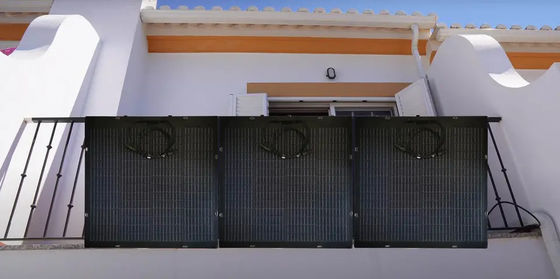

Solar application

Ultralight Balcony Bendable Solar Panel Waterproof 100w photovoltaic Semi Flexible Solar Panel laminator enegy system 3

Market

Ultralight Balcony Bendable Solar Panel Waterproof 100w photovoltaic Semi Flexible Solar Panel laminator enegy system 4
