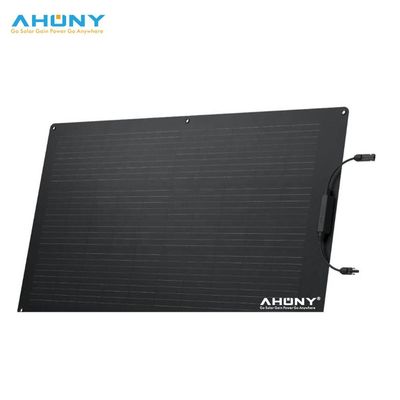

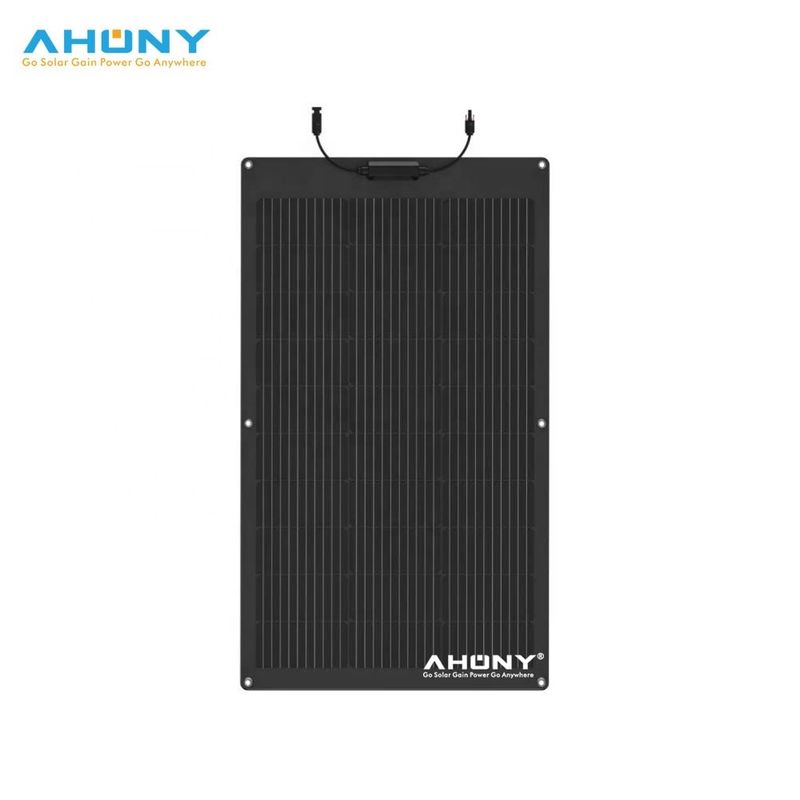

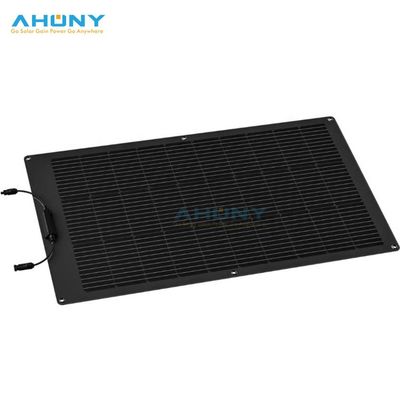

OEM 10BB Semi Flexible Solar Panel 100w RV Awning Lightweight PV Panels

Detail Information

Place of Origin:

Guangdong, China

Product:

10BB Semi Flexible Solar Panel

Cell Size:

182mmx182mm

Panel Dimensions:

612*1055*2

Panel Efficiency:

22.7%

Certificate:

CE ROHS

Junction Box:

PV-XC502

Connector:

0.9m 4.0mm²+MC19

OEM Order:

Acceptable

Packaging Details:

20pcs/carton box or 60pcs/wooden case

Highlight:

Product Description

100w Semi Flexible Solar Panel Ecoflow RV Awning Transparent Module Solar Off Grid Solar System Pv Panel Vans Bus Golf

Product Description

Model No.	eGo S100M
Product Name	semi flexible solar panel
Maximum Power[Wp]	103
Solar Cell	182 10BB solar cell
Cell Array[Pcs]	3*10
Cell Efficiency	22.5%
Size[mm]	61210552
Max Power Voltage Vmp[V]	17.4
Max Power Current Imp[A]	5.92
Open Circuit Voltage Voc[V]	20.18
Short Circuit Current Isc[A]	6.27
Net.Weight[kg]	1.60
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.252
Temperature Coefficient Voc[[%/℃]	-0.227
Temperature Coefficient Isc[[%/℃]	0.031
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS ISO9001
Surface/Backsheet	ETFE+AP2+black TPT,cover silver bus bar
Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
