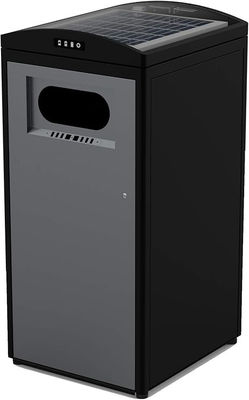

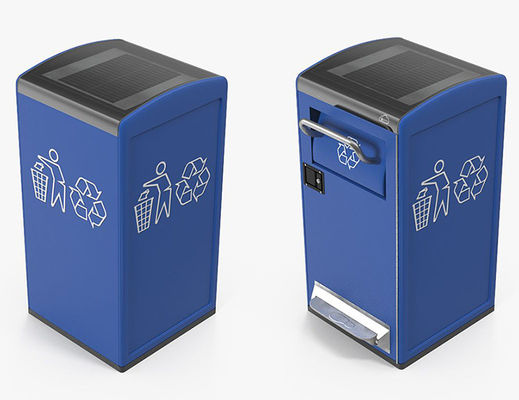

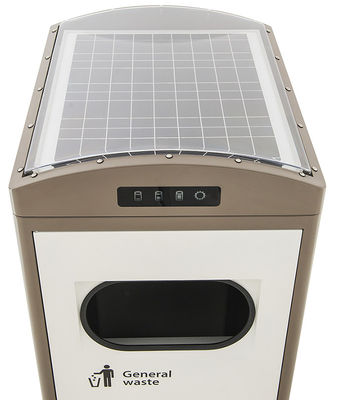

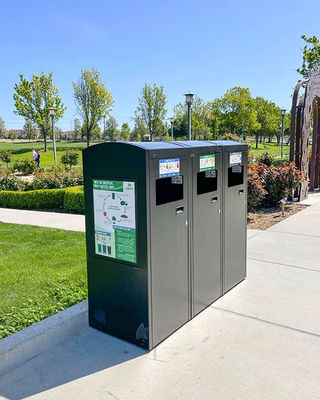

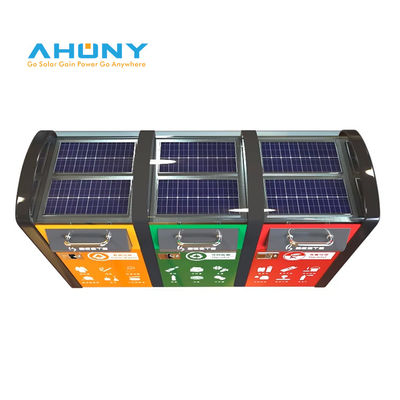

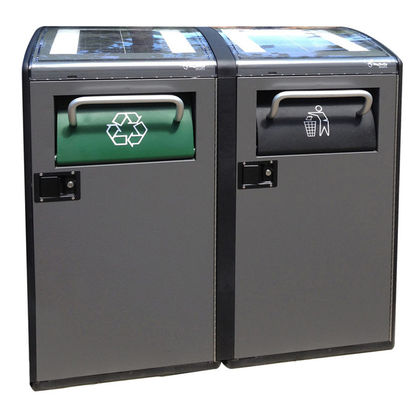

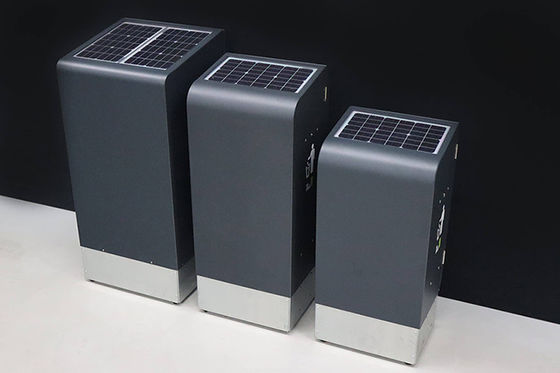

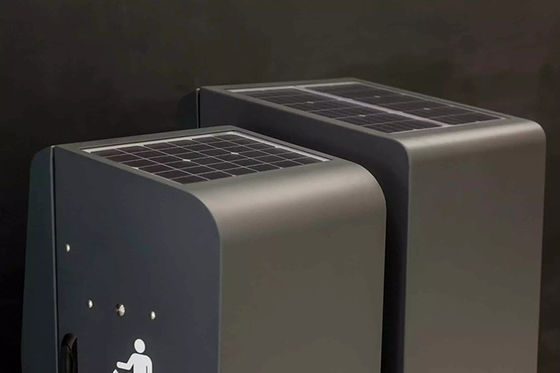

Small Size Flexible Solar Panel 7w 10w Customized Charge for Outdoor Smart Automatic Waste Bin Trash Can Garbage Bin Eco Bin

Brand Name:	AHONY/OEM
Model Number:	e Go S 7/10/15/20W
MOQ:	10
Price:	7usd/pcs; 10~100 pcs
Payment Terms:	T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	3000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE; RoHS

Product Name:

OEM Flexible Solar Panel

Certificate:

CE ROHS ISO

Warranty:

1 Year

Solar Cell:

Monocrystalline Solar Cell

Monocrystalline Solar Cell:

Waste Bin/ Trash Can/Garbage Bin

Type:

Flexible

Material:

Plastic

Color:

Black Or White

OEM Order:

OEM/ODM

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

3000 Piece/Pieces per Month

Highlight:

10w Flexible Solar Panel

7w Flexible Solar Panel

Eco Bin Flexible Solar Panel

Product Description

Product Specification

Model No.	e Go S 10w	e Go S 7w
Product Name	Semi-flexible Solar Panel
Maximum Power[Wp]	10	7
Solar Cell	Mono PERC A grade solar cell
Cell Efficiency	23.50%
Folded Size[mm]	807503	725283
Max Power Voltage Vmp[V]	18	25.75
Max Power Current Imp[A]	0.58	0.27
Open Circuit Voltage Voc[V]	21.24	29.61
Short Circuit Current Isc[A]	0.59	0.29
Net.Weight[kg]	0.4	0.3
NOCT[℃]	45±2	45±2
Operating Temperature[℃]	-40/+85	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4	-0.4
Temperature Coefficient Voc[[%/℃]	-2mV	-2mV
Temperature Coefficient Isc[[%/℃]	0.05	0.04
Maximum System Voltage[V]	100 V	100 V
Cables and Connectors	PV-XC705 Jbox IP67, 0.3m dual cable	No Jbox,only bus bar outlet

l Non-Stop Green Solar Powered: Equipped with high photoelectric conversion rate solar panel, can provide a 365-day uninterrupted power supply for the camera.

l HIGH EFFICIENCY: A grade mono PERC solar cell, 23.5% high efficiency for power supply.

l WIDELY COMPATIBILITY: It is applicable for monitoring camera, gardon light and most 5V usb-charged devices, house roof, RV, boat, cabin,tent and other outdoor working such as camping training, climbing, hiking, long treks and travel.
