Bicycle Mono Custom Solar Panel 11w Round Solar Panel Arc Module For Electric Bike

Detail Information

Place of Origin:

China

Panel Dimensions:

Dia 352

Type:

Customized Solar Panel

Shape:

Round Shape Solar Panel

Connector:

1 M Cable

Application:

Electric Bike

Solar Panel:

Monocrystalline Solar Panel High Efficiency PERC

Port:

Shenzhen

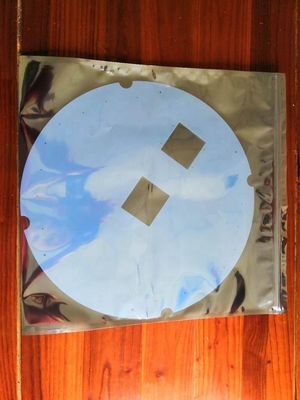

Packaging Details:

carton box for custom bicycle 11w solar panel round shape arc module high efficiency mono solar cell for electric bike cycling lithium battery

Supply Ability:

60000 Piece/Pieces per Month

Highlight:

Product Description

Custom Bicycle 11w Round Solar Panel Arc Module High Efficiency Mono Solar Cell For Electric Bike Cycling Lithium Batter

Product Description

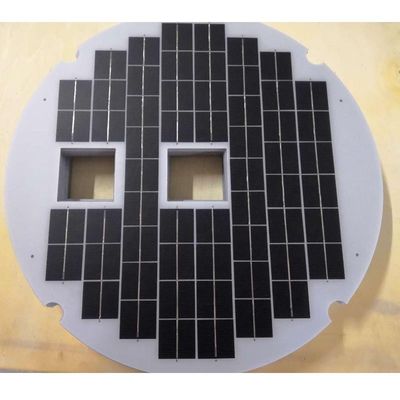

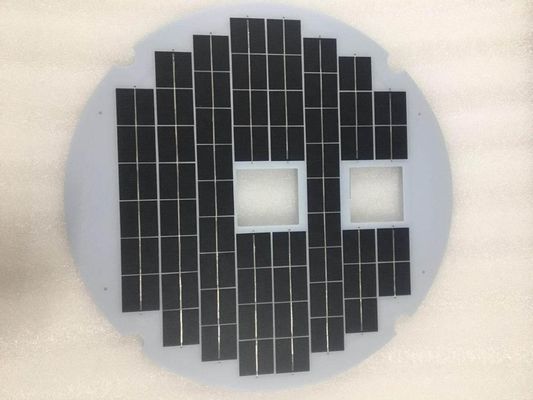

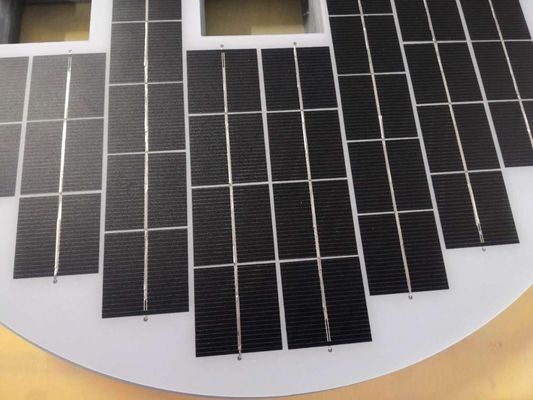

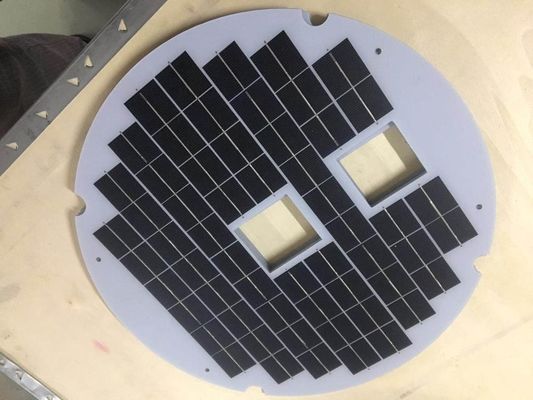

Round shape with very special design round solar panel.

Product Name	custom bicycle 11w round solar panel arc module high efficiency mono solar cell for electric bike cycling lithium battery
Maximum Power[Wp]	11
Solar Cell	A grade PERC monocrystalline solar cell 4BB
Cell size[mm]	31.2*31.2
Cell Array[Pcs]	58
Cell Efficiency	20.5%-21.3%
Diameter[mm]	352mm
Max Power Voltage Vmp[V]	30.74
Max Power Current Imp[A]	0.36
Open Circuit Voltage Voc[V]	36.89
Short Circuit Current Isc[A]	0.39
Net.Weight[kg]	0.30
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.41
Temperature Coefficient Voc[[%/℃]	-0.32
Temperature Coefficient Isc[[%/℃]	0.04
Maximum System Voltage[V]	1000 V
Certification	CE ROHS
Surface/Backsheet	PET+EVA+fiberglass FR4 white 2.0mm±1mm
