180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine

180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine

Brand Name:	OEM
Model Number:	eRigid MSP180W
MOQ:	1800 watts
Price:	$0.90/watts 1800-17999 watts
Supply Ability:	100000 Watt/Watts per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

Glass Solar Panel

Type:

PERC,Customized Solar Panel

Panel Dimensions:

920*940*35mm

Panel Efficiency:

22.6%

Warranty:

5 Years

Junction Box:

IP67

Application:

Home Roof,Marine Boat Rv Yacht

Certificate:

CE ROHS

Packaging Details:

cortom

Supply Ability:

100000 Watt/Watts per Month

Highlight:

180 Watt Glass Solar Panel

RV Glass Solar Panel

Marine 180 Watt 24 Volt Solar Panel

Product Description

180W Glass Solar Panel Back Contact Cell Rigid Module Big Power 24v For RV Marine Car Panel Power Solar Roof

Product Description

Product Name	eRigid MSP180W
Maximum Power[Wp]	180W
Solar Cell	Monocrystalline solar cell
Cell size[mm]	125*125
Cell Array[Pcs]	7*7
Cell Efficiency	24.40%
Size[mm]	91592035
Max Power Voltage Vmp[V]	30.00
Max Power Current Imp[A]	6.00
Open Circuit Voltage Voc[V]	35.40
Short Circuit Current Isc[A]	6.48
Net.Weight[kg]	9
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.3
Temperature Coefficient Voc[[%/℃]	-1.74mV
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	IR<2-0A
Certification	CE ROHS
Surface/Backsheet	PET/white plastic
Maximum bend radius(θ)	10°-20°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

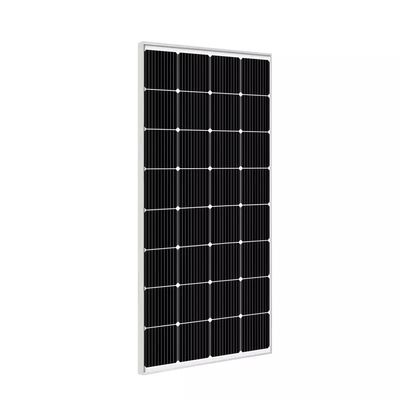

180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine 0

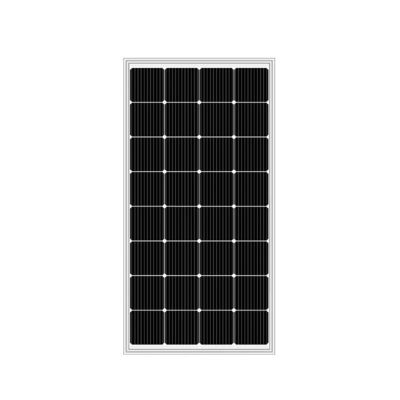

180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine 1

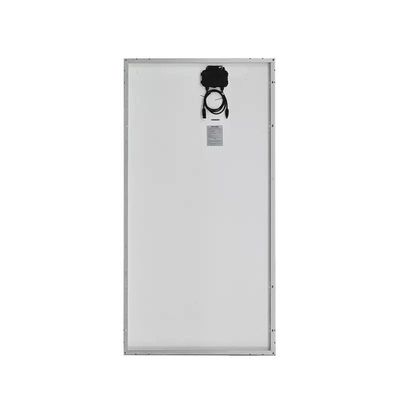

180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine 3

Packaging & Shipping

180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine 4

180 Watt 24 Volt Glass Solar Panel Back Contact Cell Rigid Module For RV Marine 6

Our Services

AHONY offer a series of after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.

Contact:Bruce Fang
Cell/Wechat:+86-13530060582
Tel/Fax:+86-0755-29565682
