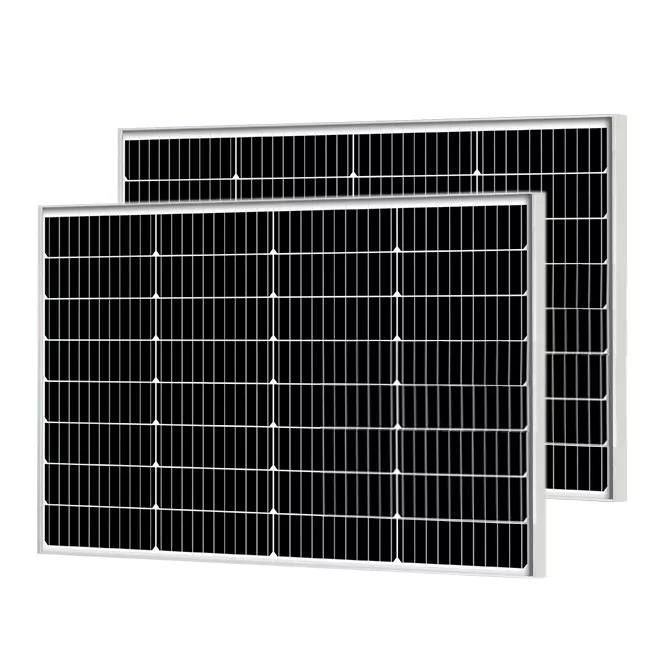

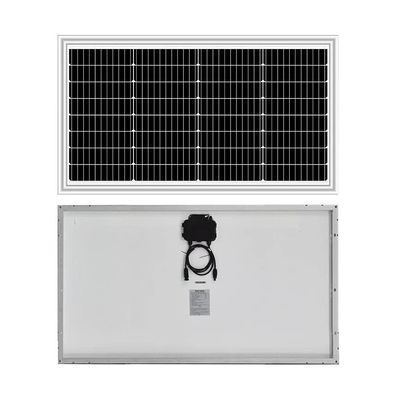

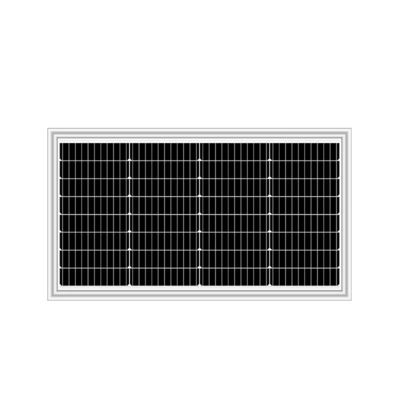

60w Glass Solar PV Module Photovoltaic Monocrystalline PV Module For Marine

Detail Information

Place of Origin:

Guangdong, China

Product:

Custom Glass Solar Panel

Maximum Power:

60W

Panel Dimensions:

386*700*30mm

Cell Size:

166mmx166mm

Cell Efficiency:

22.5%

Cell:

A Grade Mono Solar Cell

Type:

PERC

Backsheet Color:

White

Certificate:

CE IEC ROHS LVD SGS

Warranty:

5years

Port:

Shenzhen

Packaging Details:

1pcs/bubble plastic bag,then in 1 carton box,5sets in a master carton

Supply Ability:

3000 Piece/Pieces per Month

Highlight:

Product Description

Hot sale 60 Watt 12 Volt monocrystalline Solar Panel Kit for solar home system home air conditioner
High Quality Solar Panel Utilizing Grade A Solar Cells , with Positive Power Output Tolerance
25 Year Power Output Warranty, Guaranteed Power Output for 25 Years Minimum (Solar Panel Only)
MC4 connector, Perfect for Charging Most 12-Volt and 24-Volt Batteries (5 Year Warranty)
Automactically soldering machine,A grade mono PERC solar cell,high efficiency 21.3% or more;
Strict quality control and IV EL test;
Good low light performance for a grade solar cell.

Model No.	eRigid M60w
Feature	Most popular size solar module
Product Name	solar panel 60w
Maximum Power[Wp]	60
Cell Array[Pcs]	4*8
Cell Efficiency	22.5%
Size[mm]	70038630mm
Ma* Power Voltage Vmp[V]	20.8
Ma* Power Current Imp[A]	2.88
Open Circuit Voltage Voc[V]	24.48
Short Circuit Current Isc[A]	3.04
Net.Weight[kg]	3.7
Power tolerance[%]	±3%
NOCT[℃]	45±2
