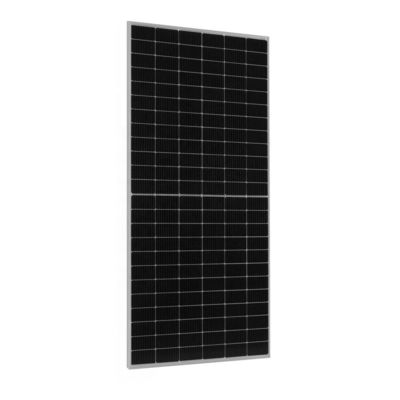

ISO Half Cut Solar Panel PV Glass 545w 550w 560w 580w 590w For On Grid Solar System

Detail Information

Place of Origin:

Jiangsu, China

Glass:

3.2mm Tempered Low Iron

Panel Dimensions:

2278*1134*35mm

Cell Size:

182mmx182mm

Panel Efficiency:

21.29%

Type:

PERC, Half Cell

Warranty:

10YEARS

Application:

Solar Power System

Frame:

Anodized Aluminium Alloy

Packaging Details:

31pcs/pallet

Supply Ability:

400000 Piece/Pieces per Month

Highlight:

Product Description

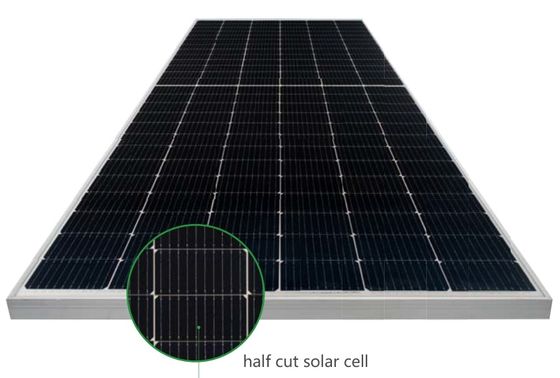

Tier 1 Brand 545w 550w 560w 580w 590w Half Cut Solar Panel Pv For On Grid Solar System Solar Power Station

Tier 1 brand solar panel pv module 545w

Model No.	JKM545M-72HL4-V
Product Name	Tier 1 Solar Module
Maximum Power[WP]	545
Solar Cell	A grade Solar Cell
Cell Array[pcs]	144(6*24)
Module Efficiency	21.29%
Size[mm]	2278×1134×35mm
Max Power Voltage Vmp[V]	40.80
Max Power Current Imp[A]	13.36
Open Circuit Voltage Voc[V]	49.52
Short Circuit Current Isc[A]	13.94
Net.Weight[kg]	31Kg±3%
Operating Temperature[℃]	- 40℃~+85℃
Temperature Coefficient Pmax[%/K]	-0.29%/K
Temperature Coefficient Voc[[%/K]	-0.24%/K
Temperature Coefficient Isc[[%/K]	+0.05%/K
Maximum System Voltage[V]	DC1500V
Maximum Fuse Rated Current[A]	25A
Safety Protection Level	ClassⅡ
Maximum Static Load	+5400Pa/-2400Pa
Hail Test	diameter 25mm, Impact speed 23m/s
Fire-proof level	IEC Class C
Certification	IEC ISO
Low attenuation	first year≤1%,Next year≤0.35%/year
Component Positive Board	3.2mm Anti-reflection Coated Tempered Glass
Frame/Component Back board	Anodized Aluminum Alloy silver Frame/High Weather Resistance Backsheet white colour
Junction Box	IP68,3 diodes
Cables and Connectors	TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Selling points	No copper ribbon or bus bar on surface,very aesthetics and high efficiency
Packaging Information	620pcs/40HQ
