Glass Solar Panel
Created with Pixso.

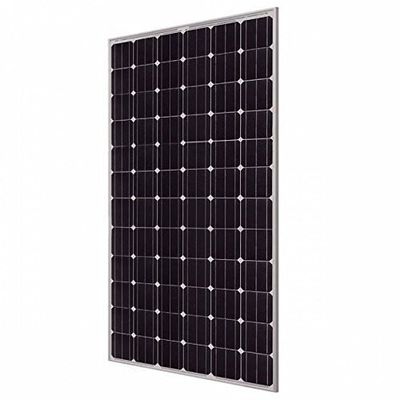

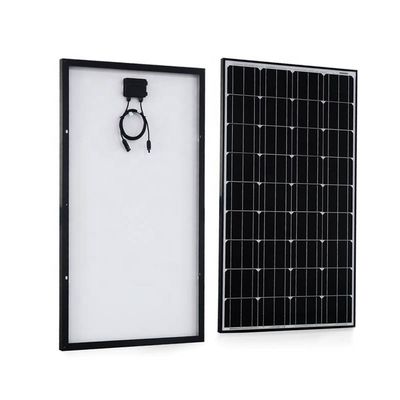

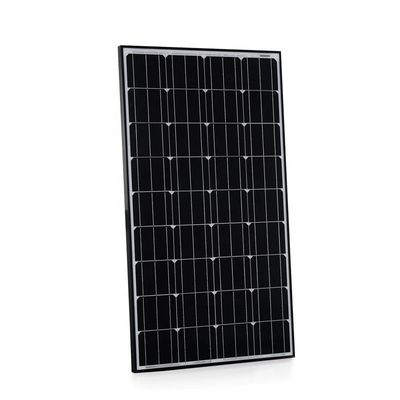

25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house

25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house

Brand Name: AHONY
Model Number: eRigid M270w
MOQ: 10 pieces
Price: $105.30/pieces 10-50 pieces
Supply Ability: 60000 Piece/Pieces per Month
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE ROHS
Product Name:
Energia Solar 270w For On Grid Solar System
Cell Size:
158.75mmx158.75mm
Type:
PERC,Standard Solar Panel
Panel Dimensions:
992x1640x40mm
Panel Efficiency:
20-23%
Warranty:
3months-1year
Number Of Cells:
60cells A Grade Solar Cell
Connector:
MC4 Compatiable Connector
Application:
Factory Roof Energia Solar 250w
Certificate:
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Junction Box:
IP67 Rated
Efficiency:
20%-23%
Material:
3.2mm Low Iron Tempered Glass
TPT Back Sheet:
Yes
Port:
Shenzhen
Packaging Details:
carton box for energia solar 250w 260w 300w 360w 60cell 72cell a grade solar panel for on grid system solar home
Supply Ability:
60000 Piece/Pieces per Month
Highlight:

300w 72 Cell Solar Panel

,

270w 72 Cell Solar Panel

,

60 Cell 360w Solar Panel

Product Description

25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house

Product Description

 25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house 0

  • [High Conversion Efficiency] 250w monocrystalline energia solar 250w 260w 300w 360w 60cell 72cell a grade solar panel for on grid system ideal output: 1500Wh per day (depending on the availability of sunlight). The surface is made of tempered glass, water resistant, snow resistant and resistant to small hail. The diodes are pre-installed in the junction box, a pair of 24" cables with MC4 connectors are automatically equipped, and 4 holes at the rear for quick installation.
  • [Low-Cost Manufacturing] Long-term installation sites (such as roofs, RVs, street lights, outdoor, ships, islands, etc.) are applicable. It has a service life of more than 25 years and is 5 times that of ordinary flexible solar panels. This is the best choice for motorcycles and families. It has a very high cost performance and is the best choice for home energy investment.
  • [Quality Assurance] Solar monocrystalline panel 150w. Waterproof, advanced packaging materials, multi-layer sheet lamination, improve battery performance and long service life. Durable and good heat dissipation. Corrosion-resistant aluminum frame for outdoor use.
  • [Upgrade Service] solar panel monocrystalline photovoltaic panel solar 12v/18v. If you have any questions about the product, please let us know and we will refund all your money. So you can be sure that you are receiving safe, efficient, high quality equipment.

Thank you for reading our energia solar 25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house ,please send us the enquiry our sales representative will contact you soon!

  • 25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house 1
    Model No. eRigid M270W
    Maximum Power[WP] 270
    Solar Cell    Monocrystalline solar cell
    Cell Array[pcs] 6*8
    Cell Efficiency 22.70%
    Size[mm] 990x1330x40mm
    Max Power Voltage Vmp[V] 27.87
    Max Power Current Imp[A] 9.69
    Open Circuit Voltage Voc[V] 32.20
    Short Circuit Current Isc[A] 10.22
    Net.Weight[kg] 16.5
    Power tolerance[%] ±3%
    NOCT[℃] 45±2
    Operating Temperature[℃] -40/+85
    Temperature Coefficient Pmax[%/K] -0.41
    Temperature Coefficient Voc[[%/K] -0.32
    Temperature Coefficient Isc[[%/K] 0.04
    Maximum System Voltage[V]  45V DC
    Certification CE,ROHS,
    Cables and Connectors 0.9m cable and a pair of MC4 connector
    Standard Test Conditions STC: 1000W/m², AM 1.5 and cell temp 25°C
Packaging & Shipping

 25years 250w 260w 270w 300w 360w 60 72cell glass Solar Panel rigid pv module 12 24 18v For On Grid System roof house 2

Our Services

 AHONY offer a series of after sale service for energia solar 250w 260w 260w 300w 360w 60cell 72cell a grade solar panel for on grid system:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
