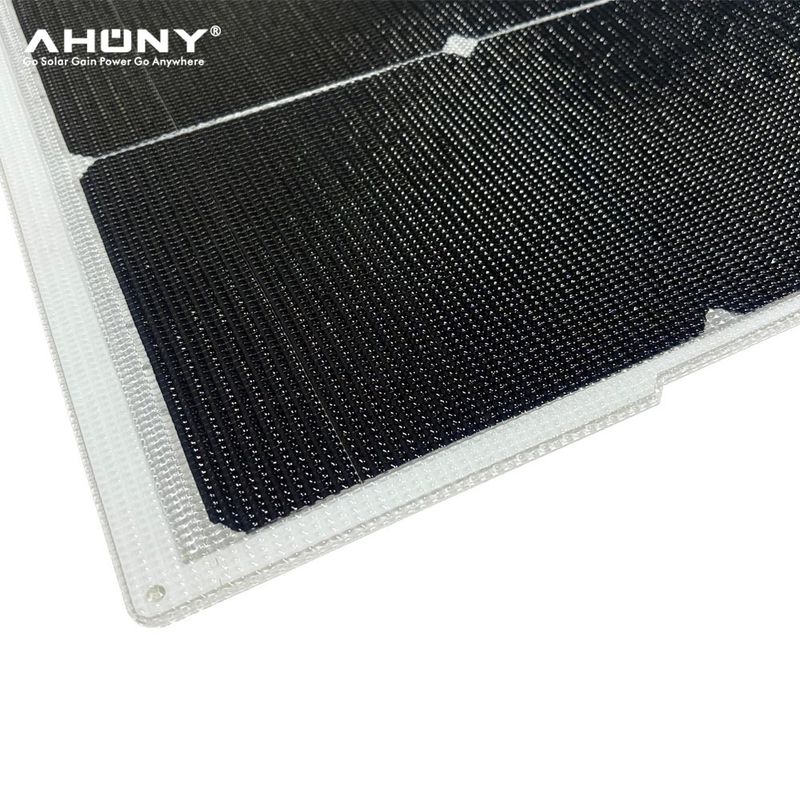

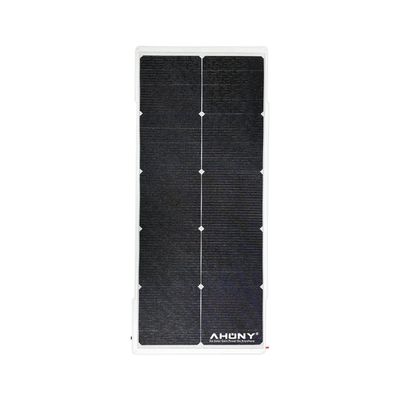

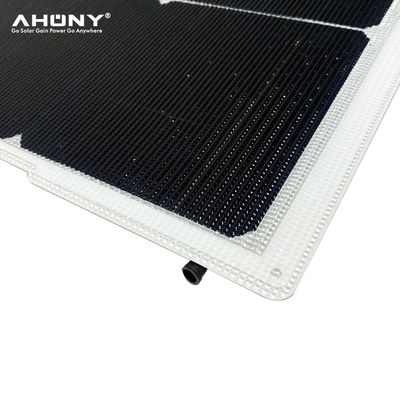

Solar Panel Roof Tiles System Photovoltaic Tile Panels Residential Commercial Use

Solar Panel Roof Tiles System Photovoltaic Tile Panels Residential Commercial Use

Brand Name:	AHONY or OEM
Model Number:	eMarvel 80W
MOQ:	100sets
Price:	0.5-0.8usd/watt
Supply Ability:	5000sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS

Packaging Details:

1pcs/carton

Supply Ability:

5000sets/month

Highlight:

Residential Solar Panel Roof Tiles

Photovoltaic Tile Panels Roof Tiles

Commercial Solar Panel Roof Tiles

Product Description

Factory direct producing:

-Leading brand solar cell top quality Longi HPBC solar cell module,cell efficiency 25.8%,superior weak light

performance.

-Waterproof grade over IP68

-Cable length can be customized

-Junction box either on front or on back side,the standard ones are on back side.

-widely used for boat builder,shipyard,boat construction,wheeling house,sailboat deck,car conversion roof etc.

Model No.	eMarvel 80W
Product Name	Solar floor tile semi rigid solar panel PV Roof Tiles Solar Tile Panels Complete Photovoltaic Roofing Solutions
Maximum Power[Wp]	80
Solar Cell	Back contact cell
Cell Array[Pcs]	2*19pcs
Cell Efficiency	25.80%
Size[mm]	40594012
Max Power Voltage Vmp[V]	22.80
Max Power Current Imp[A]	3.51
Open Circuit Voltage Voc[V]	26.68
Short Circuit Current Isc[A]	3.79
Net.Weight[kg]	3.80
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.3
Temperature Coefficient Voc[[%/℃]	-0.26
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Certification	CE ROHS
Selling Point	1.small size,design as many power as possible,easy to transport and replace,maintenance;
	2.Leading brand Longi cell 25.8% for 80w.
	3.each panel have 2bypass diodes,increase max 40% power under shading situation;
	4.walkable on deck flat surface,anti-skid surface,self cleaning;
	5.simple cabling,IP68 connection.
Surface/Backsheet	ETFE+AP2+rigid material+3M tape back
Maximum bend radius(θ)	0°
Cables and Connectors	Jbox IP68 on back+0.2m+MC4
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10
Package	10-20pcs/carton
