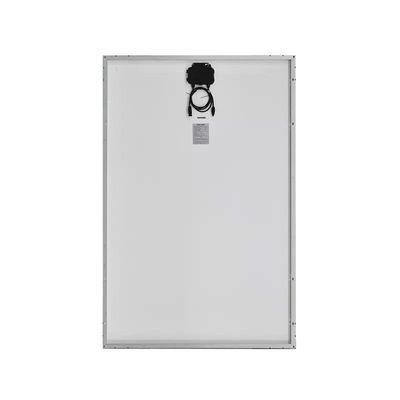

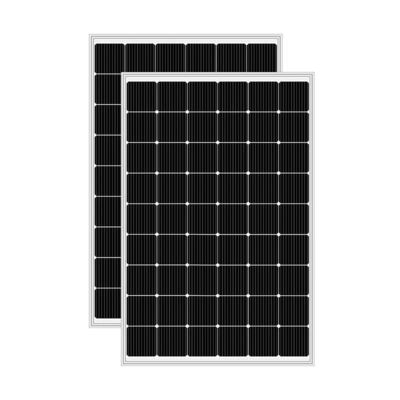

182mm Cell Size White Backsheet Rigid Solar Panel for Pole Mounting Solutions

Product Description:

One of the key features of this rigid glass solar panel is its use of Longi cells. Longi is a leading solar cell manufacturer known for their high-quality, durable cells that are designed to withstand harsh weather conditions and provide reliable performance over the long-term.

The maximum system voltage of this pv glass solar panel is 500V, ensuring that it can be used in a wide range of applications without the risk of overloading. Additionally, this panel comes with a 25-year warranty, providing peace of mind and ensuring that you get the most value out of your investment.

The backing color of this panel is white, providing a sleek and modern look that can complement any building or property. The rigid design of this solar panel makes it easy to install and ensures that it can withstand wind and other environmental factors without compromising its performance.

Overall, the Rigid Solar Panel is an excellent choice for anyone looking for a high-quality, reliable solar panel that can provide optimal energy efficiency and long-term performance. With its superior cell panel efficiency, Longi cells, high maximum system voltage, and 25-year warranty, this panel is sure to meet all of your solar energy needs.

Features:

The high efficiency back contact N type solar cell is one of HPBC Longi's standout products. It boasts a high energy-conversion efficiency, ensuring efficient energy production from even small amounts of sunlight. This is because it is made to take advantage of a back-contact structure that minimizes front absorption loss. This results in better output than previously possible.

Another feature of HPBC Longi solar cells is the use of thick anodized aluminum alloy. This combination not only provides protection, but also enhances the durability and stability of the cells. These aspects are critical for a long-lasting and highly reliable solar cell product. With this technology, HPBC Longi is well-regarded for producing solar cells with a superior performance in rugged environments.

In addition, HPBC Longi's solar cells are CE ROHS certified. This means they comply with all the requirements set out by the EU, and have met high standards for product safety, environmental friendliness and other essential criteria.

Finally, HPBC Longi's PV solar module factory represents a flexible design and good quality control. It consists of a well-equipped testing laboratory, automatic production lines, and comprehensive testing equipment. The factory uses advanced technology and strict quality control measures to ensure that the solar modules are of the highest standard and that the product can be designed to meet individual customer requirements.

Technical Parameters:

Model No.: eRigid M200W

Product Name: Glass Solar Panel

Maximum Power[WP]: 200

Solar Cell: Longi HPBC Solar Cell

Cell Array[pcs]: 4*12

Solar Cell Size[mm]: 182*91

Cell Efficiency: 25.40%

Size[mm]: 770*1170*30

Max Power Voltage Vmp[V]: 30.24

Max Power Current Imp[A]: 6.62

Open Circuit Voltage Voc[V]: 35.08

Short Circuit Current Isc[A]: 7.02

Net.Weight[kg]: 9.80

Power Tolerance[%]: 0 to +3%

Operating Temperature[℃]: -40/+85

Temperature Coefficient Pmax[%/K]: -0.3

Temperature Coefficient Voc[[%/K]: -0.26

Temperature Coefficient Isc[[%/K]: 0.05

Maximum System Voltage[V]: 1000 V

Applications:

The AHONY eRigid M200W solar panel is an excellent choice for a wide variety of applications that require reliable and durable solar power. This top-quality product is manufactured in Donguan, China, and comes with CE, ROHS, and ISO9001 certification, ensuring that it meets the highest standards of quality and safety.

The eRigid M200W panel is available from AHONY or as an OEM product, with a minimum order quantity of 100 panels. Prices start at just 0.15-0.35 USD/watt, making this an affordable choice for a wide range of applications.

With a white backsheets and a cell size of 182mm, this 50w rigid glass solar panel is designed for maximum efficiency and durability. It features Longi cells, one of the most trusted and reliable cell brands in the industry, and has a maximum system voltage of 500V.

The eRigid M200W solar panel is an ideal choice for a wide variety of applications. It can be used for residential and commercial rooftop installations, as well as for ground-mounted solar systems. It is also ideal for use in off-grid systems, such as remote cabins and RVs.

With its rugged construction and high-quality materials, this pv glass solar panel is designed to provide reliable power for many years to come. It comes with a 10-12 working day delivery time and 30% deposit balance before delivery payment terms.

Each panel is carefully packed in a carton box, with 2 panels per box. AHONY also offers a supply ability of 5000pcs per month, ensuring that you can get the solar panels you need when you need them.

If you are looking for a top-quality solar panel that is both reliable and affordable, the AHONY eRigid M200W is an excellent choice. Contact us today to learn more about this fantastic product and how it can help you meet your solar power needs.
