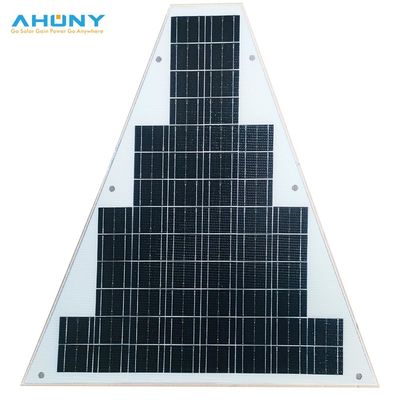

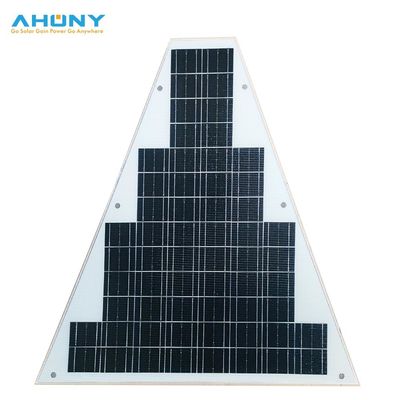

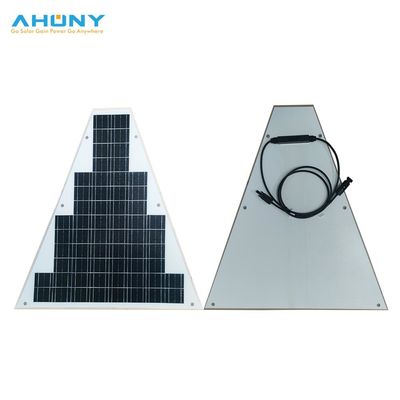

Trapezoide Solar Panel 30w Custom Round Square Rectangular Bouy Pv Module For Solar Tree Table Bench Light Bus Charge

Trapezoide Solar Panel 30w Custom Round Square Rectangular Bouy Pv Module For Solar Tree Table Bench Light Bus Charge

Brand Name:	AHONY or OEM,ODM
Model Number:	eMarvel M30W
MOQ:	5000sets/month
Price:	39usd/pcs
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS

Solar Cell:

Sunpower Mono Cell

Junction Box:

IP67 Rated

Connector:

MC4 Compatible Connector

Material:

Monocrystalline Silicon

Type:

Standard Solar Panel,Customized Solar Panel

Warranty:

25 Years Output Power Guarantee

Highlight:

custom solar panel

pv module solar panel

30w solar panel

Product Description

Leading brand mono solar cell,cell efficiency up to 25.8%;

Front ETFE layer with more than 15years lifespan;

CE ROHS SGS certified.

AHONY is one of the most competitive solar manufacturer,our company mainly produce,customize different range solar modules.

Semi flexible solar panel,pv foldable solar kit,portable solar kits.

Model No.	eMarvel M30W
Product Name	Trapezoid Shaped Semi rigid lighter Solar Panel
Maximum Power[Wp]	30
Solar Cell	Mono solar cell
Cell Array[Pcs]	160,5536.5mm
Cell Efficiency	24.00%
Size[mm]	5925602
Max Power Voltage Vmp[V]	18.00
Max Power Current Imp[A]	1.67
Open Circuit Voltage Voc[V]	21.24
Short Circuit Current Isc[A]	1.77
Net.Weight[kg]	0.4
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	Japan ETFE+ETFE
Maximum bend radius(θ)	20°

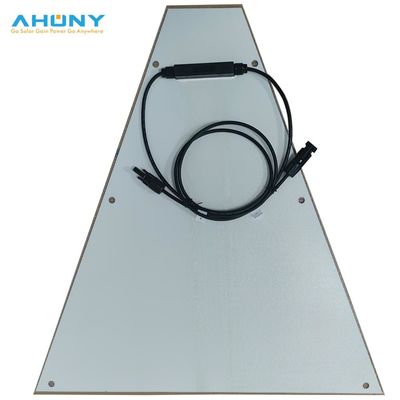

Cables and Connectors	PV-XC502 Jbox IP67 on back,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	6pcs grommets φ10mm,stainless steel 316
Package	15pcs/carton box,2carton box

Trapezoide Solar Panel 30w Custom Round Square Rectangular Bouy Pv Module For Solar Tree Table Bench Light Bus Charge 0
