5w Solar Panel Trickle Charger For Car Charging Automobile Motorcycle Boat

Detail Information

Place of Origin:

Guangdong, China

Cell Size:

156.75mmx156.75mm

Type:

PERC, Solar Charger

Panel Dimensions:

190*260*14mm

Panel Efficiency:

21.3%

Warranty:

6 Mouth

Product Name:

Solar Trickle Charger Battery Maintainer

Backing Color:

Black

Connector:

SAE Connector

Jbox:

IP65

Certificate:

CE ROHS ISO

Packaging Details:

carton box for 10w Solar panel trickle charger with cigarette light battery clips for automobile motorcycle boat rv car power panel charger

Highlight:

Product Description

5w Solar Panel Trickle Charger Battery Maintainer With Cigarette Light Battery Clips For Automobile Motorcycle Boat

The 4.5W Solar Car Battery Charger will generate current to trickle charge the battery that prevent the loss current of the battery in storage or standby process
It has built-in blocking diode to prevent reverse charging and battery reverse discharging
Charging through the cigarette lighter plug: it is not necessary to open the hood of the car, you can directly use the cigarette lighter plug to charge the car battery
Perfect solution for charging the batteries of car, motorcycles, automobiles, snowmobiles, tractors and more by solar when the battery is power shortage, maintaining the battery effect, extending its usage life

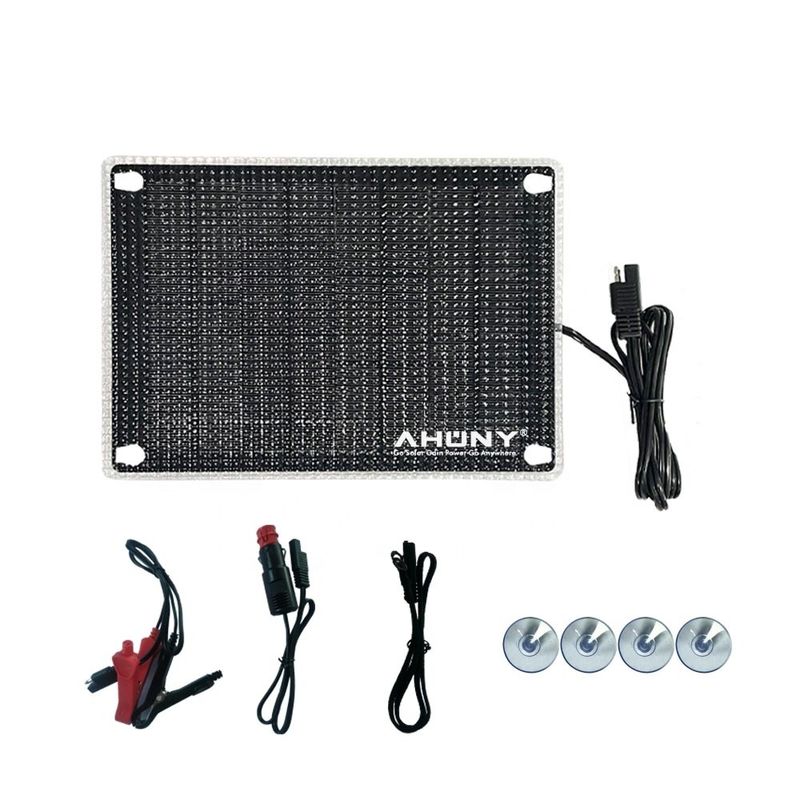

Package: 10W car battery charger, cigarette lighter plug, clip line, suction cupds. If you have any other problems, please contact us, we will provide the best quality service

Model No.	eMobi F5TC
Product Name	Solar trickle charger battery maintainer
Maximum Power[Wp]	5
Solar Cell	A grade mono perc cell
Cell Efficiency	21.30%
Size[mm]	19026014mm
Size[inch]	7.510.20.55
Max Power Voltage Vmp[V]	18.7
Max Power Current Imp[A]	0.24
Open Circuit Voltage Voc[V]	22.07
Short Circuit Current Isc[A]	0.26
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Suface/backsheet	ETFE+fibreglass plate
Jbox	Jbox IP65,1pcs blocking diode
cable 1	1pcs*1m+SAE connector
cable 2	1pcs*SAE+0.5m+male cigarette lighter
cable 3	1pcs*SAE+0.5m+alligator cable
cable 4	1pcs*SAE+0.5m+ring terminal cable
Suction Cup	4pcs
Certification	CE ROHS
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Net.Weight[kg/lbs]	0.52/1.14
G.W[kg/lbs]	0.7/1.54
