100w Dual Usb Folding Solar Blanket 12V Foldable Solar Power Charger For Generator

Brand Name:	OEM
Model Number:	eMobi F100w
MOQ:	2 sets
Price:	$168.52/sets 2-99 sets
Supply Ability:	5000 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

110w Foldable Solar Kit For Portable Generator

Panel Dimensions:

425*310*60mm

Panel Efficiency:

24.4%

Cell Size:

125mmx125mm

Type:

IBC,Customized Solar Panel

Warranty:

1 Year

Certificate:

CE ROHS ISO

Widely Used For:

USB Power Bank Generator

Style:

Sunpower Cell Quick Charge

Application:

Solar Power System Emergency Portable Generator

Selling Point:

Quick Charge Small Size Foldable Ultralight

Packaging Details:

single carton box for 100w foldable solar kit 5fold 20w blanket solar module portable solar charger for portable generator dual usb port dc5521 5v 19v

Supply Ability:

5000 Set/Sets per Month

Highlight:

100w Folding Solar Blanket

Dual Usb Folding Solar Blanket

12V Foldable Solar Power Charger

Product Description

100w Foldable Solar Kit 5fold 20w Blanket Solar Module Portable Solar Charger For Generator Dual Usb Port China Solar M

Product Description

HIGH CONVERSION EFFICIENCY: Constructed form high-efficiency SUNPOWER monocrystalline solar cells, convert solar power into usable energy, up to 24.4% efficiency,with ahony foldable solar kit,you will get greater power generation even though the panel size is no larger than ordinary solar panels.

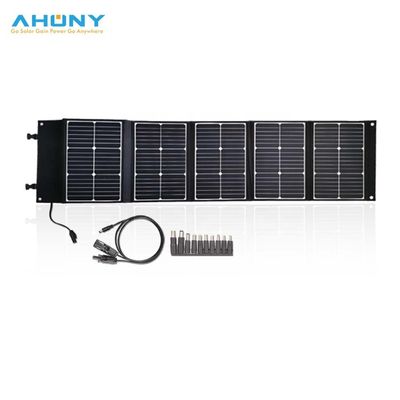

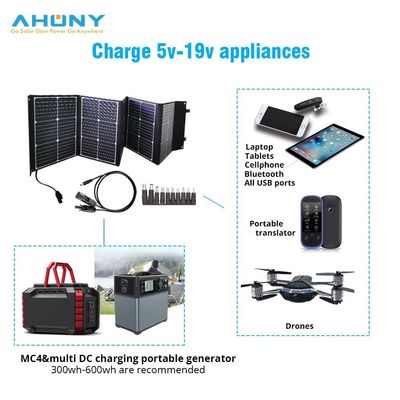

HIGH COMPATIBILITY: Includes 10 different size of DC connectors, compatible with most portable solar generators on the market(but not for Jackery 440), 8mm DC Adapter for Jackery Explorer 240/160/500 and Goal Zero Yeti 150 / 400 Power Station, 3.5 * 1.35mm DC Adapter for Suaoki S270/ENKEEO S155/Paxcess portable generator, 5.5 * 2.1mm DC Adapter for Rockpals 250W portable generator. MC4 cable for other compatible energy storage devices. USB port for smartphones, tablets or other 5V USB devices.
3-PORT SMART CHARGING TECHNOLOGY: Equipped with dual USB port 5V/2.1A(max) and DC5521 port 18V/3.3A(max), can simultaneously charge your device. The smart IC chip built into the USB port intelligently identifies your device and automatically adjust current; DC port is equipped with a voltage regulator function to prevent damage to the access device caused by excessive output voltage.

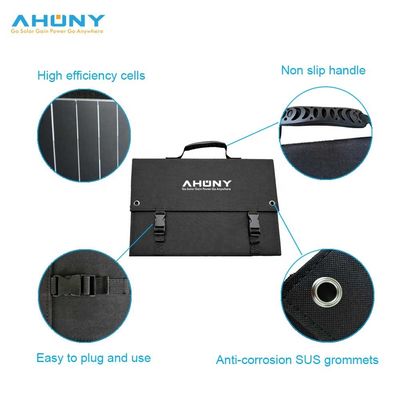

HIGHLY DURABLE: Industrial-strength PET polymer faced solar panels sewn into a rugged polyester canvas offer weather-resistant outdoor durability, great for any outdoor activities such as camping, climbing, hiking, picnic.

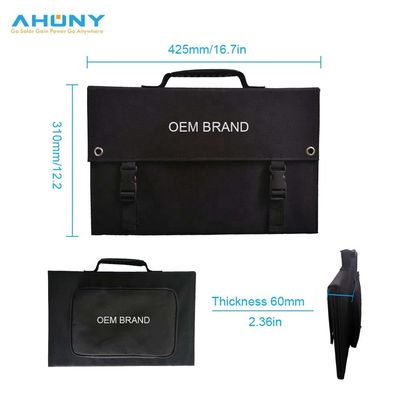

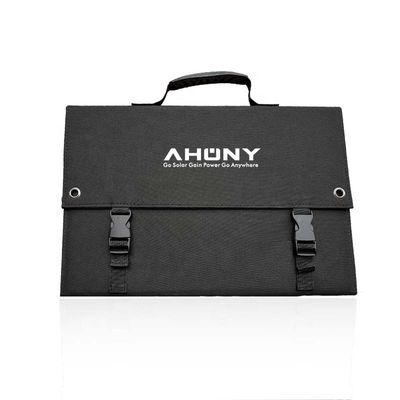

FOLDABLE AND PORTABLE: Ultra compact of size 420*290*30mm/16.5*11.4*1.2inch(folded)/1115*420*4mm/43.9*16.5*0.16inch(opened), weighs only 4.18 lbs(1.9kg), when folded, it looks like a briefcase or foldable solar suitcase and is easy to carry. 4 metal reinforced mounting holes at each corner allow easy attachment to backpacks, trees, or tents.

Model No.	eMobi FM5x20w
Product Name	12V folding solar kits
Maximum Power[Wp]	100
Solar Cell	Mono PERC A Grade Solar Cell
Cell Efficiency	24.4%
Folded Size[mm]	42531060
Open Size[mm]	17304254
Max Power Voltage Vmp[V]	22.03
Max Power Current Imp[A]	5.0
Open Circuit Voltage Voc[V]	26.0
Short Circuit Current Isc[A]	5.30
Net.Weight[kg]	3.1
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[mV/℃]	-2mV
Temperature Coefficient Isc[mA/℃]	0.037
Maximum System Voltage[V]	100 V
Certification	CE ROHS
Suface/backsheet	Waterproof textile,PET+FR4 fibreglass
Charge controller	PWM 10A 12/24V,2 USB,LCD display
Cables	5m 14AWG cable
Connector	MC4+battery clips
Supporting Leg	Yes
Eyelets	Yes
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Package	1pcs/bubble plastic bag,then in 1 carton box
