OEM 290w Folding Solar Kit Portable foldable Solar Panel kit pv Module 36V 24v Charging Power Bank camp rv manufacturer

Detail Information

Place of Origin:

Guangdong, China

Cell Size:

158.75mmx158.75mm

Type:

PERC

Panel Dimensions:

540*360*80mm

Panel Efficiency:

22.5%

Warranty:

3months-1year

Application:

Camping Charging Portable Solar Generator

OEM Order:

MOQ 100sets

Solar Cell:

High Efficiency 5BB Cells

Feature:

More Folds Smaller Size,less Delivery Costs

Certificate:

CE ROHS ISO9001

Packaging Details:

Big power station use 290w portable solar panel foldable module solar 36v charging power bank portable generator lithium battery

Highlight:

Product Description

Big Power Station Use 290w Portable Solar Panel Foldable Module Solar 36v Charging Power Bank Portable Generator Lithium

Product Description

OEM 290w Folding Solar Kit Portable foldable Solar Panel kit pv Module 36V 24v Charging Power Bank camp rv manufacturer 0

Product Name	OEM 290w Folding Solar Kit Portable foldable Solar Panel kit pv Module 36V 24v Charging Power Bank camp rv manufacturer
Maximum Power[Wp]	290
Solar Cell	Mono A grade solar cell PERC
Cell Efficiency	22.50%
Folded Size[mm]	54036080
Open Size[mm]	196011008
Max Power Voltage Vmp[V]	36.90
Max Power Current Imp[A]	7.86
Open Circuit Voltage Voc[V]	43.54
Short Circuit Current Isc[A]	8.49
Net.Weight[kg]	9.5
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[%/℃]	-2mV
Temperature Coefficient Isc[[%/℃]	3.7
Maximum System Voltage[V]	100 V
Certification	CE ROHS
Suface/backsheet	PET+fibreglass back

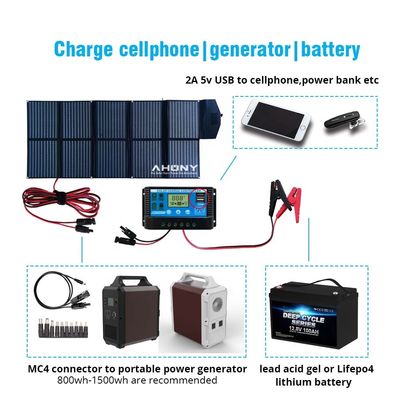

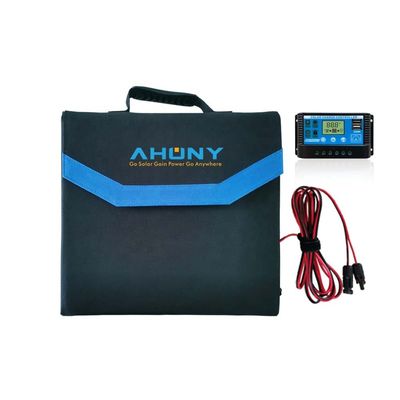

MADE FOR SOLAR GENERATORS AND LITHIUM BATTERIES - Compatible with most solar generator if use the MC4 only,if customer want to charge lithium batteries as well,should use the charge controller which is included in the whole kit.
If only charge generator,can remove the charge controller which will have lower costs.
HIGH CONVERSION EFFICIENCY - Constructed of high-efficiency solar arrays,convert up to 21.5-23.5% of solar power into free energy.
WATER-RESISTANT & DURABLE - Made from durable Oxford cloth. The solar panel is water resistant to endure all weather conditions, ideal for outdoor activities such as camping, climbing, hiking, picnic. Please NOTE: The junction box is not waterproof and please keep it dry.

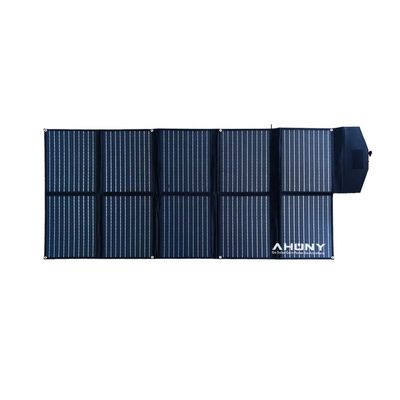

FORDABLE & PORTABLE - Foldable design, convenient to carry it wherever you go. Folded dimensions: 20.5 * 14.2 * 2.6 inches.
