| Brand Name: | AHONY or OEM |
| Model Number: | eMobi F100w M |
| MOQ: | 2 pieces |
| Price: | $105.00/pieces 2-99 pieces |
| Payment Terms: | Western Union, T/T, L/C, D/A, MoneyGram |
| Supply Ability: | 5000 Piece/Pieces per Month |
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
|
Item
|
Description
|
|
Model No.
|
eMobi FM100W
|
|
Power max
|
100wp
|
|
Folded size
|
400*360*80mm
|
|
Open size
|
1980*400*4mm
|
|
N.W:
|
4.3kg
|

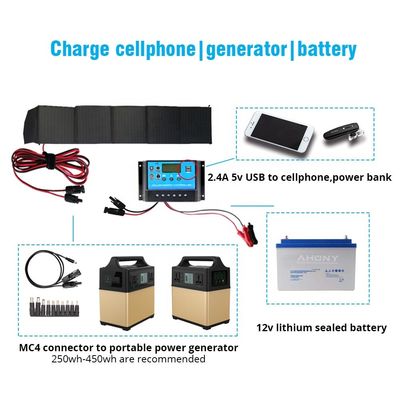

Description of application effect
|
Model No.
|
eMobi F5x20w or eMobi F100w M or eMobi F5*20w
|
|
Product Name
|
A grade cell 100w mono portable folding solar charging bag dual USB PWM controller CE for rv 5v 12v power station all batteries
|
|
Maximum Power[Wp]
|
100
|
|
Solar Cell
|
Mono PERC A Grade Solar Cell
|
|
Cell Efficiency
|
23.5%-25%
|
|
Folded Size[mm]
|
400*360*60
|
|
Open Size[mm]
|
1980*400*4
|
|
Max Power Voltage Vmp[V]
|
20.26
|
|
Max Power Current Imp[A]
|
4.94
|
|
Open Circuit Voltage Voc[V]
|
24.05
|
|
Short Circuit Current Isc[A]
|
5.34
|
|
Net.Weight[kg]
|
4.3
|
|
NOCT[℃]
|
45±2
|
|
Operating Temperature[℃]
|
-40/+85
|
|
Temperature Coefficient Pmax[%/℃]
|
-0.4
|
|
Temperature Coefficient Voc[[mV/℃]
|
-2mV
|
|
Temperature Coefficient Isc[mA/℃]
|
0.037
|
|
Maximum System Voltage[V]
|
100 V
|
|
Certification
|
CE ROHS ISO9001
|
|
Suface/backsheet
|
PET+FR4 fibreglass
|
|
Charge controller
|
PWM 10A 12/24V,2 USB,LCD display
|
|
Cables
|
5m 14AWG cable
|
|

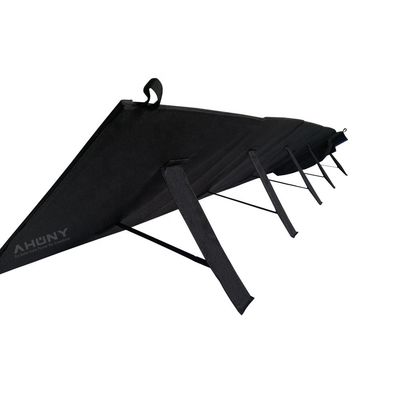

Supporting Leg
|
Yes
|
|
Hook up way
|
ropes
|
