Foldable Portable Solar Panel 100W All In One Solar Panel Kit module For RV Camping smartphone rv camp Cellphone Laptops

Brand Name:	AHONY
Model Number:	eMobi F100W
MOQ:	4 sets
Price:	$142.00/sets 4-99 sets
Payment Terms:	Western Union, T/T, L/C, MoneyGram
Supply Ability:	20000 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Cell Size:

125mmx125mm

Type:

IBC

Panel Dimensions:

280*300*80mm

Panel Efficiency:

22.60%

Warranty:

1year, 1 Year

Product Name:

Foldable Solar Panel Charger

Certificate:

CE ROHS, CE ROHS

Junction Box:

IP67 Rated

Cell Efficiency:

22.6%

Cable:

5m Cable

Port:

Shenzhen

Packaging Details:

carton box for 22w portable USB solar charger

Supply Ability:

20000 Set/Sets per Month

Highlight:

IBC Portable Solar Panel

Cellphone Portable Solar Panel

100W All In One Solar Panel Kit

Product Description

Foldable Portable Solar Panel 100W All In One Solar Panel Kit module For RV Camping smartphone rv camp Cellphone Laptops

Advantage of our Foldable Portable Solar Panel 100W All In One Solar Panel Kit module For RV Camping smartphone rv camp Cellphone Laptops:

- A grade quality top brand solar cell PERC efficiency over 23.5%,now upgrade to HPBC cell 25%;

- Small size more foldable,ultralight,get the smallest size and biggest power;

- To charge 150wh,200wh portable solar generator;

- More than 10 years sewing workmanship and more than 5 years automatically soldering;

- Prefessional engineer to design different sizes and muti-function connection to connect different power load.

- Individual carton box with very solid package for retailing,online selling etc.

- fast delivery and stable quality supply.

Product Description

Model No.	eMobi F8x12.5w
Feature	portable folding polycrystalline solar panel for camping RV
Product Name	13V folding solar kits
Maximum Power[Wp]	100
Solar Cell	Back Contact Cell
Cell Efficiency	22.60%
Folded Size[mm]	28030080
Open Size[mm]	13855605
Max Power Voltage Vmp[V]	18.56
Max Power Current Imp[A]	5.39
Open Circuit Voltage Voc[V]	21.90
Short Circuit Current Isc[A]	5.82
Net.Weight[kg]	3.1
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.3
Temperature Coefficient Voc[[%/℃]	-1.74mV
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	100 V
Certification	CE ROHS
Suface/backsheet	ETFE+PET
Charge controller	PWM 10A 12/24V,1 USB
Cables	5m 14AWG cable
Connector	battery clips

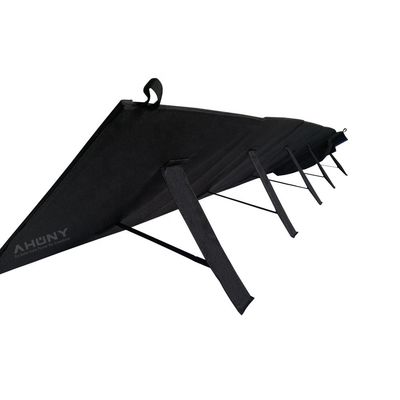

Supporting Leg	Yes
Eyelets	Yes

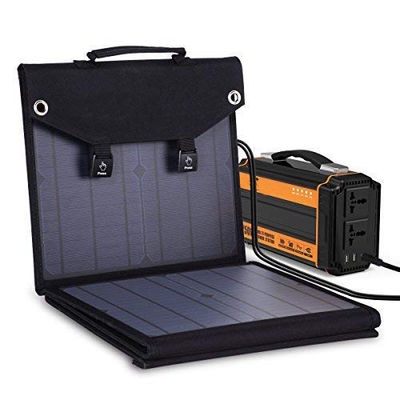

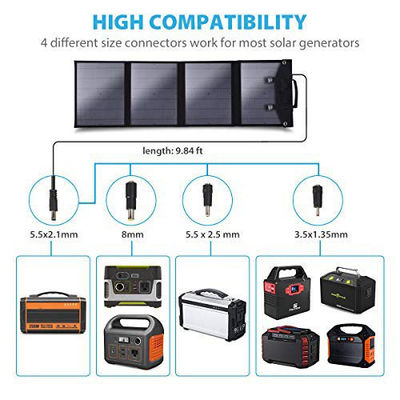

it uses together with portable power generator,to charge either 12v battery or others 12v appliance.It designs environmentally friendly,with all quick connect parts like cables,anderson plug,SAE connector,battery clips or DC plug,to quickly match powerload's connection.It equips charge controller as well.With supporting legs,it can fix on anywhere and get sunshine to charge immediately.Compared to conventional rigid folding solar kits,it's much lighter and with handle to carry it easily.

AHONY offers a wide range of power from 40w to 200w,the cells are from USA SunPower,we can customize size,cloth,power,wattage,colour etc.
