Outdoor Camping 50W 100W 150W 200W 18V Foldable Portable Solar Panel For Phone energy storage battery

Outdoor Camping 50W 100W 150W 200W 18V Foldable Portable Solar Panel For Phone energy storage battery

Brand Name:	AHONY/OEM
Model Number:	eMobi F3*50w
MOQ:	10 sets
Price:	$153.00/sets 10-99 sets
Supply Ability:	10000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Gua

Warranty:

1year

Free Installation Service:

Application:

Home

Solar Panel Type:

Monocrystalline Silicon

Battery Type:

NONE

Controller Type:

MPPT

Mounting Type:

Ground Mounting

Load Power (W):

3KW

Output Voltage (V):

18v

Output Frequency:

150w

Work Time (h):

Certificate:

CE ROHS

Pre-sales Project Design:

Product Name:

Folding Solar Panel

Port:

Shenzhen

Packaging Details:

1pcs per carton box for the product Ultra Lightweight ETFE surface flexible solar panel 110w 120w 200w 240w 5BB mono solar cell for offroad camping.
We offer a wide range of package service,customize gift box,white box,match box for flexible solar panel

Highlight:

150w 18v Solar Panel Foldable

150w 18v Solar Panel Portable

Product Description

Outdoor Portable Solar Panel 50W 100W 150W 200W 18V Folding Solar Panel For Phone Battery Outdoor Foldable Solar Panels

Model No.	eMobi F3x50w

Product Name	Folding solar kit
Maximum Power[Wp]	150
Solar Cell	PERC A Grade MONO cell
Cell Efficiency	22.50%
Folded Size[mm]	60050040
Max Power Voltage Vmp[V]	20.52
Max Power Current Imp[A]	7.31
Open Circuit Voltage Voc[V]	24.36
Short Circuit Current Isc[A]	7.75
Net.Weight[kg]	4.6
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[mV/℃]	-2mV
Temperature Coefficient Isc[mA/℃]	0.037
Maximum System Voltage[V]	100 V
Certification	CE ROHS
Suface/backsheet	PET+ PET
Cables	3.5m 14AWG cable
Connector	MC4

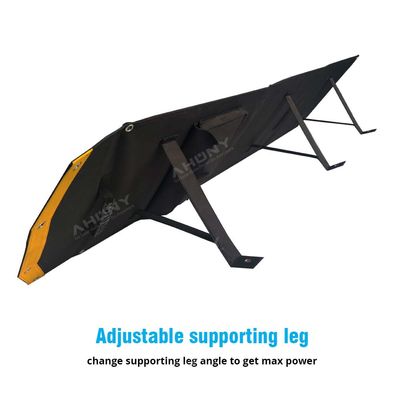

Supporting Leg	Yes
Eyelets	Yes
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Package	10pcs/bubble plastic bag,then in 1 carton box
