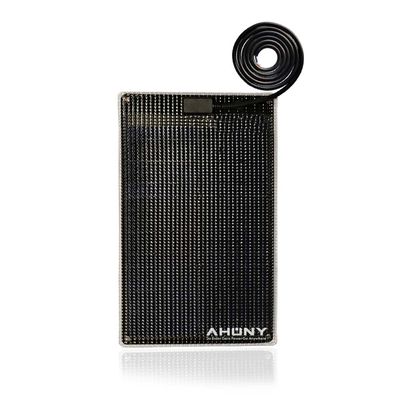

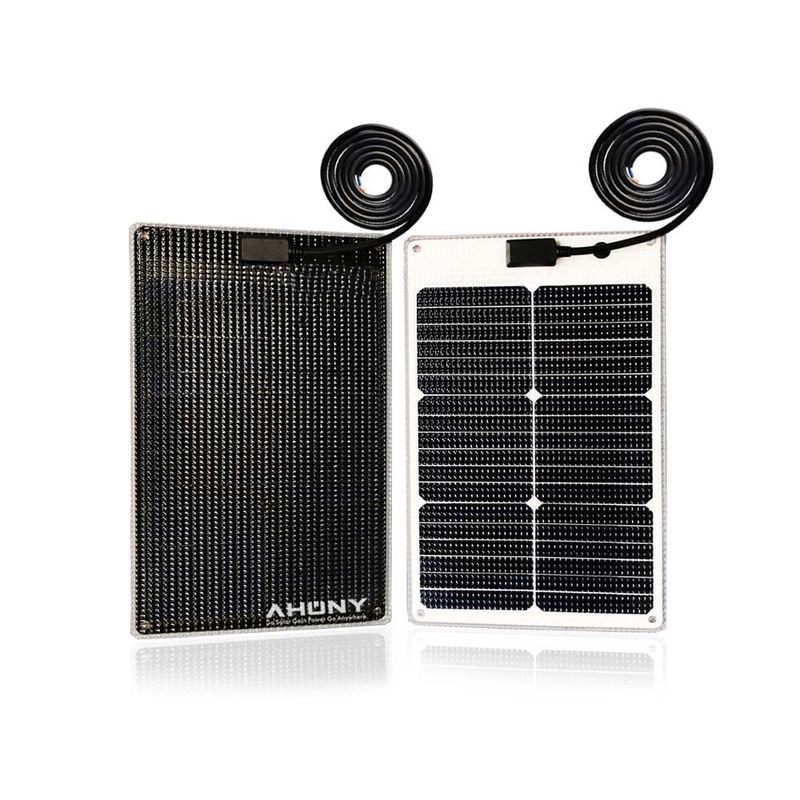

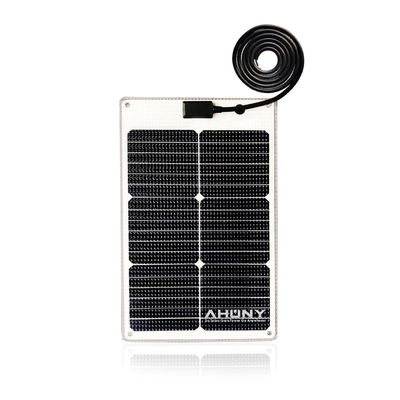

Rough Semi Rigid Solar Panels Anti Slippery 20w Marine Solar Panels Walk On

Detail Information

Place of Origin:

Guangdong, China

Solar Module:

20w Semi Rigid Solar Panel

Panel Efficiency:

22.6%

Panel Dimensions:

350*385*5mm

Solar Cell:

IBC

Cell Size:

125mmx125mm

Warranty:

3 Years

Cable:

2m 2.5mm

Certificate:

CE ROHS IEC S GS

Port:

ShenZhen

Packaging Details:

carton

Supply Ability:

10000 Piece/Pieces per Month

Highlight:

Product Description

20w Walkable Anti Slippery Rough Rigid Solar Panel Solution For Leisure Market Like Camper Trailer Marine Boat Owners

Product Description

Model No.	eMarvel 20w
Product Name	Semi-Flexible Solar Panel
Maximum Power[Wp]	20
Solar Cell	Back Contact Cell
Cell Array[Pcs]	2*18
Cell Efficiency	23.70%
Size[mm]	4802805
Max Power Voltage Vmp[V]	21.49
Max Power Current Imp[A]	0.93
Open Circuit Voltage Voc[V]	25.36
Short Circuit Current Isc[A]	0.98
Net.Weight[kg]	1.1
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	10A
Flame retardancy	UL94 VTM-0
Certification and test	CE,ROHS,SGS,IEC,85°C& 85% humidity test
Maximum bend radius(θ)	5°
Cables and Connectors	APJB010,2m dual cores cable 2.5mm2 bare at end
Warranty[Years]	3
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
