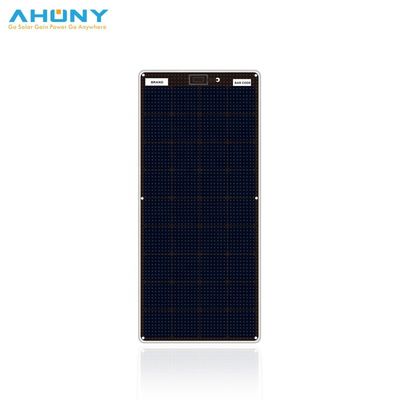

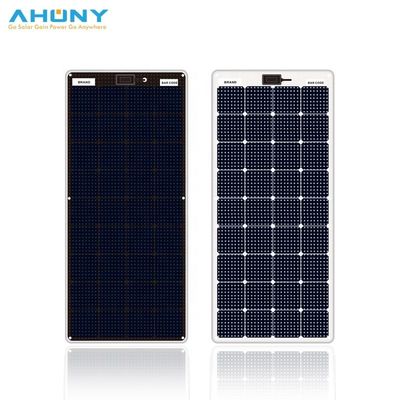

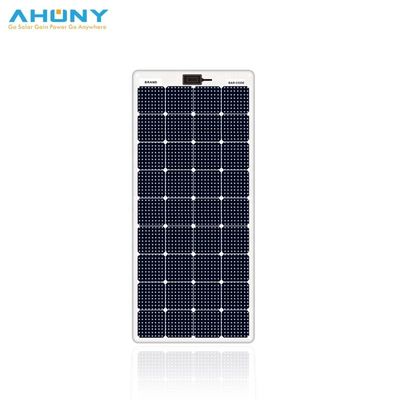

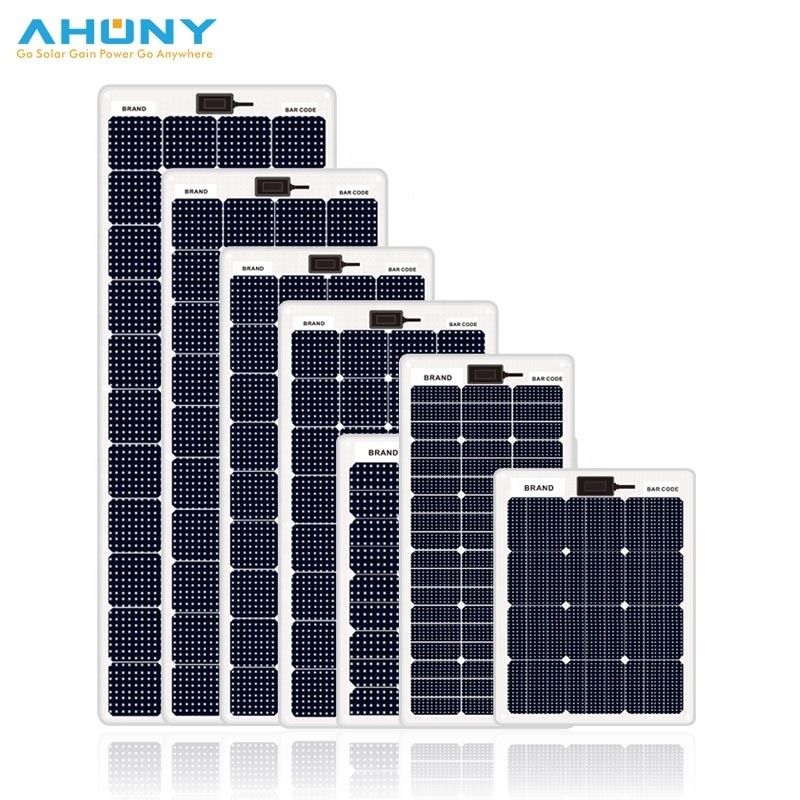

Walkable IBC Cell Solar Panel Semi Rigid Solar Panel Source Charger

Detail Information

Place of Origin:

Guangdong, China

Product:

Semi Flexible Solar Panel

Panel Dimensions:

550*1220*5mm

Cell Size:

125mmx125mm

Type:

IBC

Panel Efficiency:

22.4%-24.4%

Solar Cell:

A-grade Or IBC Cell

Warranty:

2 Years

Certificate:

CE ROHS

Port:

Shenzhen

Packaging Details:

The packing method is wooden board plus carton

Highlight:

Product Description

Top Quality 24.4% Walkable Semi Rigid Solar Panel Source Charger For RV Ocean Roof Batteries Camp And Other Off Grid

Product Description

Specification

item	value
Brand Name	AHONY
Model Number	eMarvel 130w
Maximum Power[Wp]	130
Solar Cell	Back Contact Cell
Size[mm]	55012205mm
Cell Efficiency	24.40%
Max Power Voltage Vmp[V]	22.03
Max Power Current Imp[A]	5.90
Open Circuit Voltage Voc[V]	26.00
Short Circuit Current Isc[A]	6.37
Net.Weight[kg]	5.4
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	200 V
Maximum Reverse Current[V]	0A<IR<2A
Certification	CE,ROHS,SGS,IEC salt mist,High temp humidity test
