ETFE Rigid Sunpower PV Solar Panel Ultra Light 155w Solar Panel Water Resistant

Detail Information

Place of Origin:

Guangdong, China

Product:

Rigid ETFE Solar Panel 160w Ultra Lightweight Water Resistant

Panel Dimensions:

660*1270*3mm

Solar Cell:

Sunpower

Cell Size:

125mmx125mm

Panel Efficiency:

24.4%

Number Of Cells:

44cells

Application:

Flexible Solar Panel For RV Boat Cabin Tent Car

Junction Box:

IP67 Rated

Cable:

TUV Standard Cable

Warranty:

2 Years

Certificate:

CE ROHS ISO9001

Port:

Shenzhen

Packaging Details:

carton box for Flexible ETFE pv Solar panel 155w Ultra Light Water Resistant Monocrystalline with Solar Module for RV Boat Cabin Tent Car

Supply Ability:

5000 Piece/Pieces per Month

Highlight:

Product Description

ETFE PV Rigid Solar Panel 155w Ultra Light Water Resistant Sunpower Cells With Solar Module For RV Boat Cabin Tent Car

Product Description

Model No.	eMarvel 155w
Product Name	Rigid light solar panel
Maximum Power[Wp]	155
Solar Cell	Back Contact Cell
Cell Array[Pcs]	4*11
Cell Efficiency	24.4%
Size[mm]	55014705
Max Power Voltage Vmp[V]	26.9
Max Power Current Imp[A]	5.77
Open Circuit Voltage Voc[V]	31.78
Short Circuit Current Isc[A]	6.11
Net.Weight[kg]	6.7
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	20A
Flame retardancy	UL94 VTM-0
Certification and test	CE,ROHS,SG S,IEC salt mist,High temp humidity test
Maximum bend radius(θ)	5°
Cables and Connectors	APJB030,2m dual cores cable 2.5mm2 bare at end,50mm peel off
Warranty[Years]	2
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C

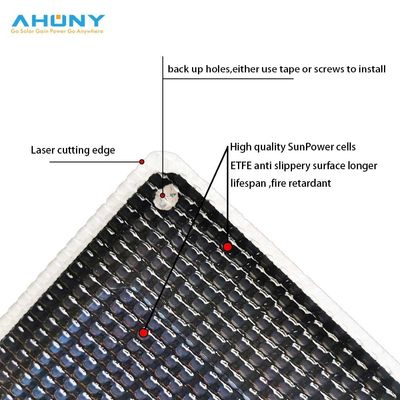

Other notes	round corner R10,with silicon back up holes
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
