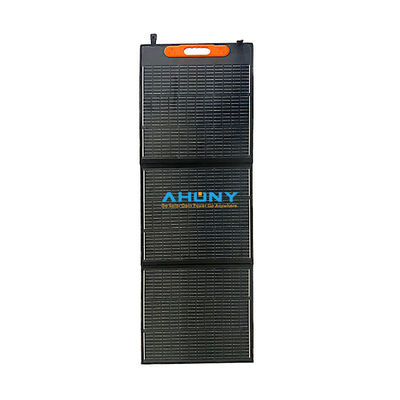

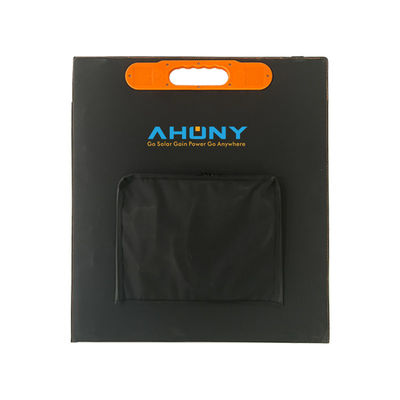

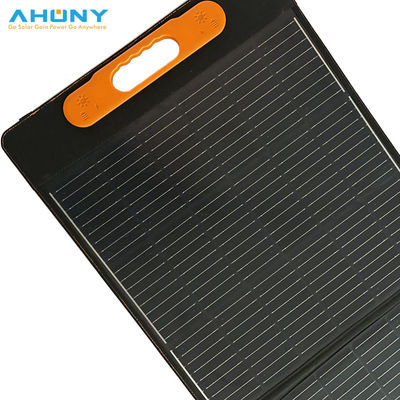

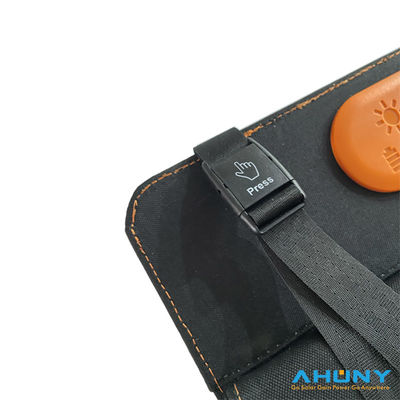

Mono portable Foldable Solar Charger fold up plastic solar panel panneaux solaire 160w 12v 24v

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Panel Dimensions:

548*658*60mm

Type:

PERC

Solar Panel Material:

A Grade Mono 166 9BB Cells

Panel Efficiency:

25%

Cell Size:

166mmx166mm

Warranty:

1 Year

Specification:

Normal

Application:

Home

Certificate:

CE ROHS

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

6000 Piece/Pieces per Month

Highlight:

Product Description

160W A Grade Mono Foldable PET Surface Solar Charger For Camping Mobile Phone Digital Camera Tablet

Small size more folda,ultralight,get the smallest size and biggest power;

- To charge 200wh-400wh portable solar generator;

- More than 10 years sewing workmanship and more than 5 years automatically soldering;

- Prefessional engineer to design different sizes and muti-function connection to connect different power load.

- Individual carton box with very solid package for retailing,online selling etc.

- fast delivery and stable quality supply.

Model No.	eMobi Fab 3*54w	eMobi Fab 4*55w

Product Name	magnetic handle folding solar kits Mono portable Foldable Solar Charger fold up plastic solar panel panneaux solaire 160w 12v 24v
Maximum Power[Wp]	162	220
Solar Cell	A grade mono 166 9BB cells	A grade mono 166 9BB cells
Cell Efficiency	22.50%	22.50%
Folded Size[mm]	54865860	54865870
Open Size[mm]	548176612	548235412
Max Power Voltage Vmp[V]	20.88	20.88
Max Power Current Imp[A]	7.76	10.54
Open Circuit Voltage Voc[V]	24.22	24.22
Short Circuit Current Isc[A]	8.22	11.17
Net./Gross Weight[kg]	7.5/7.9	9/9.5
NOCT[℃]	45±2	45±2
Operating Temperature[℃]	-40/+85	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.3	-0.3
Temperature Coefficient Voc[[%/℃]	-1.74mV	-1.74mV
Temperature Coefficient Isc[[%/℃]	0.05	0.05
Maximum System Voltage[V]	200 V	200 V
Certification	CE ROHS	CE ROHS
Handle	Magnetic	Magnetic
Suface/backsheet	PET+high density textile	PET+high density textile
Output 1-USB	5V 3A,9V 2A,12V 1.5A	5V 3A,9V 2A,12V 1.5A
Output 2-Type C	PD65w	PD65w
Output 3-DC5521	19v 3A	19v 6A
Cable1	DC5525+1m cable+MC4	DC5525+1m cable+MC4
Cable 2	1m DC5525 to DC5525	1m DC5525 to DC5525
Supporting Leg	Yes,2 legs	Yes,3 legs
Eyelets	Yes,4pcs stainless steel	Yes,4pcs stainless steel
Selling point	1. Magnetic suction type automatic closing, light, with high-quality anti-UV handle,durable; 2.Charging both 6v 12v system,can connect to 24v system by string; 3.22.5% high efficiency cell; 4.waterproof textile.
