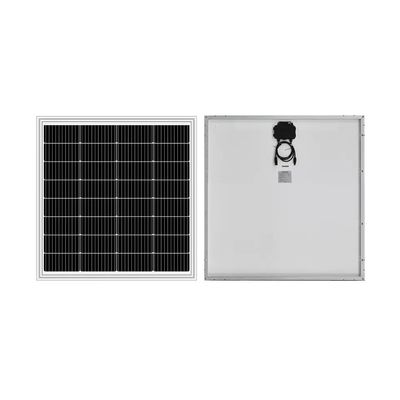

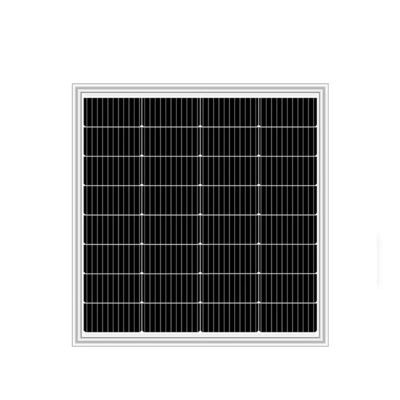

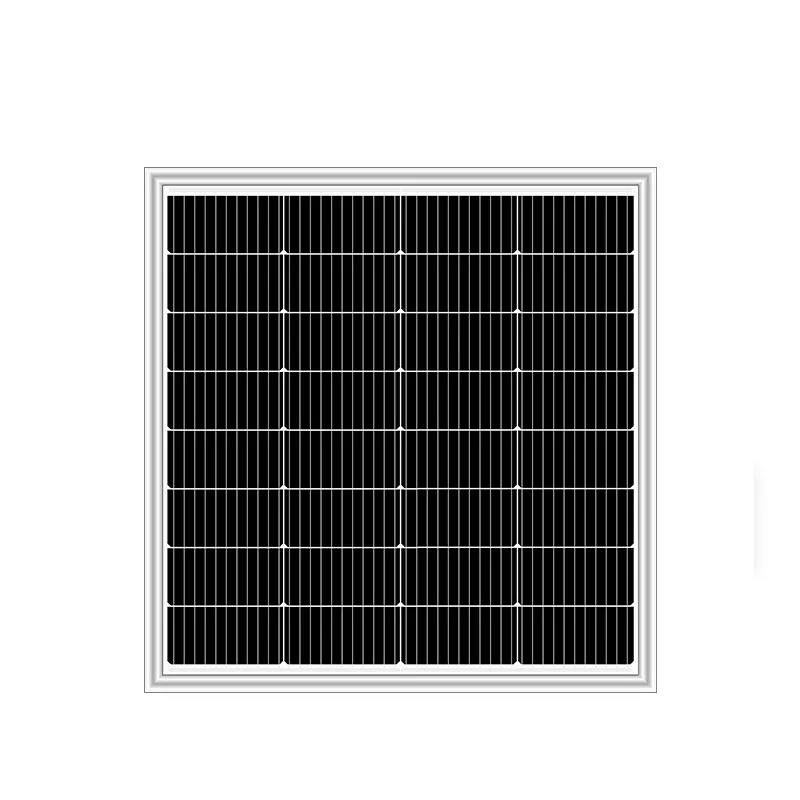

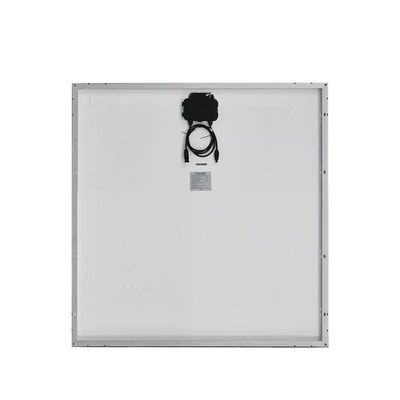

90w PV Half Cut Solar Module Mono Photovoltaic Off Grid For Marine

Detail Information

Place of Origin:

Guangdong, China

Product:

Small Glass Solar Kit For Light RV

Type:

PERC

Panel Dimensions:

800x760x30mm

Maximum Power:

90w

Cell Efficiency:

22.5%

Cell Size:

166mmx166mm

Cell:

A Grade Mono Solar Cell

Backsheet Color:

White

Certificate:

CE IEC ROHS LVD SGS

Warranty:

5year

Packaging Details:

1pcs/carton box,each panel,plywood pallet

Supply Ability:

3000 Piece/Pieces per Month

Highlight:

Product Description

Half Cut 90w Glass solar PV Module Factory Direct Sale High Efficient Mono Photovoltaic off grid for marine

Product Description

Hot sale 90 Watt 12 Volt monocrystalline Solar Panel Kit for solar home system home air conditioner
High Quality Solar Panel Utilizing Grade A Solar Cells , with Positive Power Output Tolerance
25 Year Power Output Warranty, Guaranteed Power Output for 25 Years Minimum (Solar Panel Only)
MC4 connector, Perfect for Charging Most 12-Volt and 24-Volt Batteries (5 Year Warranty)
Automactically soldering machine,A grade mono PERC solar cell,high efficiency 21.3% or more;
Strict quality control and IV EL test;
Good low light performance for a grade solar cell.

Model No.	reRigid M90w
Feature	most popular size solar module
Product Name	solar panel 90w
Maximum Power[Wp]	90
Cell Array[Pcs]	4*8
Cell Efficiency	22.5%
Size[mm]	80076030mm
Ma* Power Voltage Vmp[V]	20.8
Ma* Power Current Imp[A]	4.32
Open Circuit Voltage Voc[V]	24.48
Short Circuit Current Isc[A]	4.56
Net.Weight[kg]	5.5
Power tolerance[%]	±3%
NOCT[℃]	45±2
