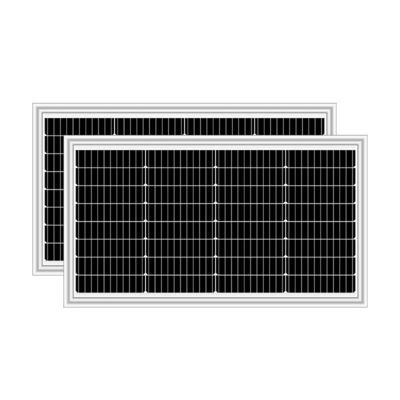

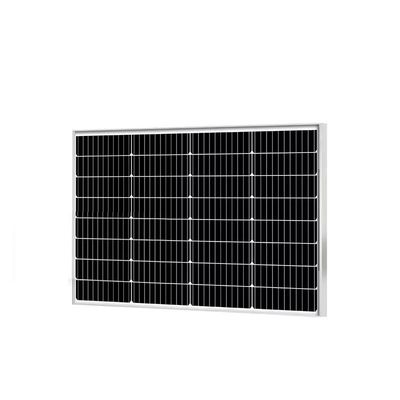

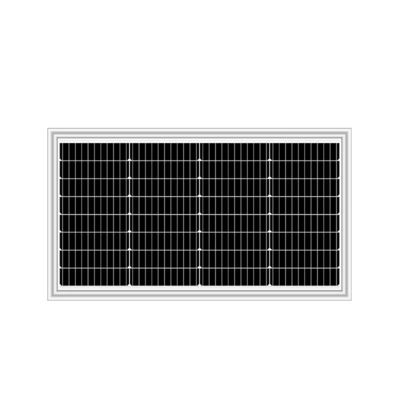

65w Cell Solar Panel 12v 10BB PV Module For Home Camp Rv Balcony Boat Yacht

Detail Information

Place of Origin:

Guangdong, China

Product:

Glass Solar Panel

Panel Dimensions:

590*610*25mm

Cell Size:

182*45.5mm

Solar Cell:

PERC

Panel Efficiency:

22.7%

OEM Order:

Acceptable

Material:

Mono Solar Cell

Application:

12v Off Grid Solar System

Warranty:

1 Year

Certificate:

CE ROHS

Packaging Details:

carton box

Supply Ability:

3000 Piece/Pieces per Month

Highlight:

Product Description

10BB 182 65w High Efficiency M10 Solar Cell 12v Solar Panel For Home Pv Camp Rv Balcony Boat Yacht Solar Panel Pv Module

Product Description

Model No.	eRigid M65W
Maximum Power[Wp]	65
Solar Cell	182 PERC Solar Cell
Cell size[mm]	182*45.5
Cell Array[Pcs]	3*12
Cell Efficiency	22.70%
Size[mm]	59061025
Max Power Voltage Vmp[V]	20.88
Max Power Current Imp[A]	3.12
Open Circuit Voltage Voc[V]	24.22
Short Circuit Current Isc[A]	3.11
Net.Weight[kg]	4.9
Power tolerance[%]	±3%
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.41
Temperature Coefficient Voc[[%/℃]	-0.32
Temperature Coefficient Isc[[%/℃]	0.04
Maximum System Voltage[V]	1000 V
Certification	CE ROHS
Surface/Backsheet	ETFE/white plastic
Cables and Connectors	IP67 Jbox,0.9m cable+MC4
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Package	2pcs/carton,plywood pallet
