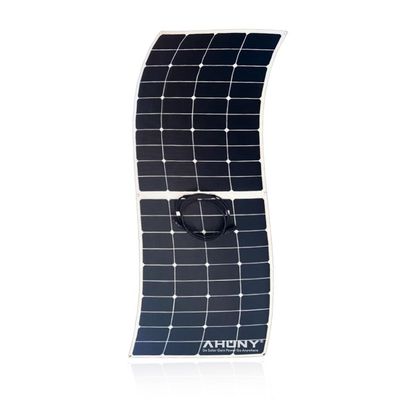

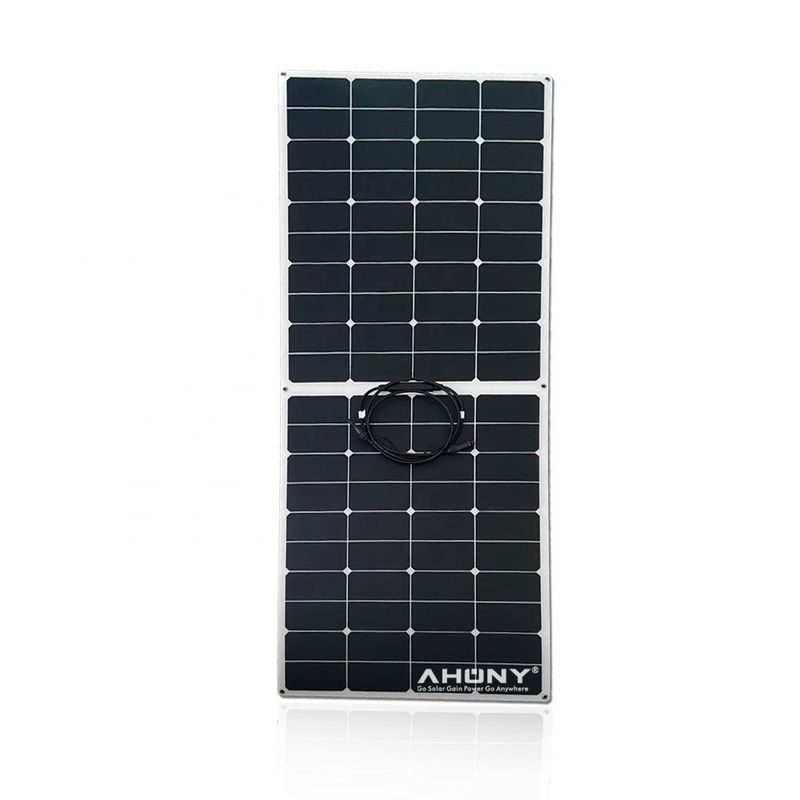

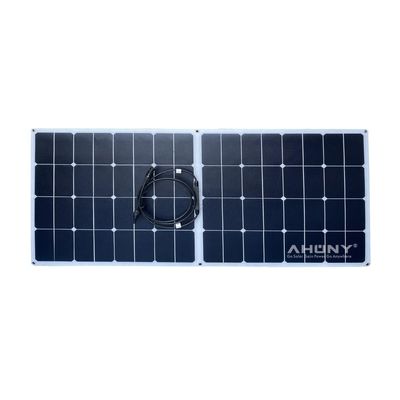

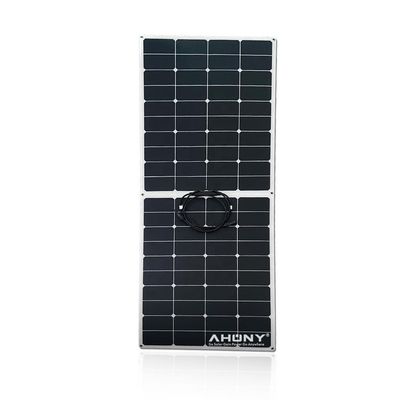

Semi Flexible Half Cut Cell Solar Panel Semi Flexible 145w For Sailboat

Brand Name:	AHONY or OEM
Model Number:	eGo S145w HF
MOQ:	4 pieces
Price:	$165.00/pieces 4-99 pieces
Supply Ability:	1000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Semi Flexible Solar Panel

Cell Size:

125mmx125mm

Panel Dimensions:

540x1345x3mm

Panel Efficiency:

19.96%

Certificate:

CE ROHS ISO9001

Warranty:

1 Year

Application:

Sailboat

Port:

Shenzhen

Packaging Details:

carton box for shade tolerant semi flexible solar module half cut for sailboat smaller current higher power flexible solar panel 145w 160w 200w

Supply Ability:

1000 Piece/Pieces per Month

Highlight:

Half Cut Cell Solar Panel

Cell Solar Panel 145w

Product Description

Shade Tolerant Semi Flexible Solar Module Half Cut For Sailboat Smaller Current Higher Power Flexible Solar Panel 145w

The half cut semi flexible solar panel series reduce the current of each panel.It has much more advantage over traditional semi flexible solar panel.

1. Less current more Power

The half cut reduce the current each cell and avoid heating problem,reduce the risk of hot dot ,heating etc,in this way,the panel power output is 2-3wattages over regular panels;

2 .Inner parallel design,voltage drop less when shade,produce more power

It has more obvious performance on sailboat,which has half shade most of time.

The inner parallel design.

Model No.	eGo S145w
Product Name	Semi-Flexible Solar Panel
Maximum Power[Wp]	145
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*10
Cell Efficiency	24.40%
Size[mm]	540x1345x3
Max Power Voltage Vmp[V]	24.50
Max Power Current Imp[A]	5.92
Open Circuit Voltage Voc[V]	28.91
Short Circuit Current Isc[A]	6.27
Net.Weight[kg]	3.2
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	Japan ETFE/white PET

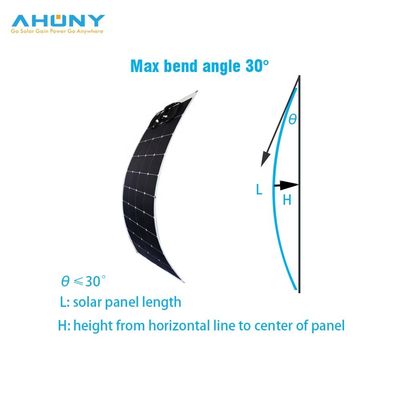

Maximum bend radius(θ)	30°

Semi Flexible Half Cut Cell Solar Panel Semi Flexible 145w For Sailboat 0
