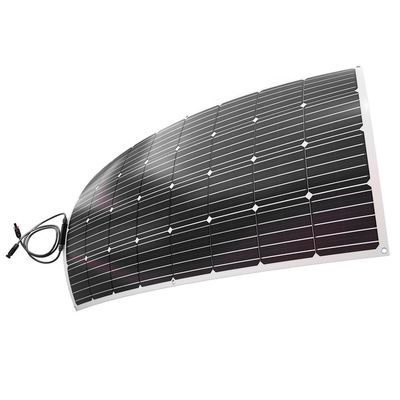

180w 12V 18V 20V Mono Lightweight Portable Solar Flexible Panels For RV Camping Boat

180w 12V 18V 20V Mono Lightweight Portable Solar Flexible Panels For RV Camping Boat

Brand Name:	AHONY
Model Number:	eGO L180R-20V
MOQ:	4 pieces
Price:	$140.00/pieces 4-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Cell Size:

158.75mmx158.75mm

Type:

PERC, Customized Solar Panel

Panel Dimensions:

1480*660*4.5mm

Panel Efficiency:

21%

Warranty:

1 Year

Product Name:

180W Solar Panel

Solar Cell:

Monocrystalline Solar Cell

Application:

Car

Junction Box:

IP65

Certificate:

CE ROHS ISO

Packaging Details:

corton box for flexible solar panel for RV camping boat super light solar panel

Highlight:

20v Solar Flexible Panels

180w Solar Flexible Panels

Portable Flexible Solar Panels Lightweight

Product Description

ETFE Surface 180w 20v Mono Light Weight Solar Panel Flexible Solar Panel For RV Camping Boat Portable Solar Panel

Product Description

PRODUCT APPLICATION*
eGo S flexible solar panel are for
* camping RV motorhome
* boat,yacht,sailing,bimini,catamaran marine
* golf cart roof,electrical car
* off grid solar system

Model No.	eGo L180R-20v

Product Name	Light weight solar panel
Maximum Power[Wp]	180

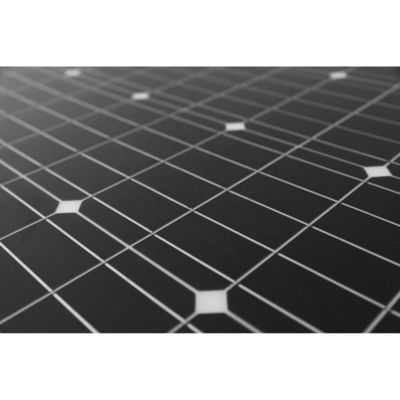

Solar Cell	Monocrystalline solar cell
Cell size[mm]	156*116.7
Cell Array[Pcs]	4*9
Cell Efficiency	21.00%
Size[mm]	14806604.5
Max Power Voltage Vmp[V]	19.80
Max Power Current Imp[A]	9.09
Open Circuit Voltage Voc[V]	23.36
Short Circuit Current Isc[A]	9.82
Net.Weight[kg]	6.2
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.41
Temperature Coefficient Voc[[%/℃]	-0.32
Temperature Coefficient Isc[[%/℃]	0.04
Maximum System Voltage[V]	200 V
Maximum Reverse Current[V]	20A
Certification	CE ROHS

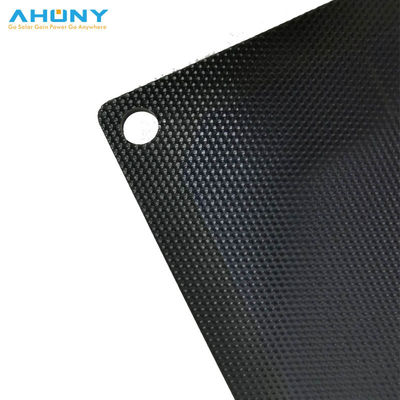

Surface/Backsheet	ETFE/white plastic
Maximum bend radius(θ)	0°-5°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
