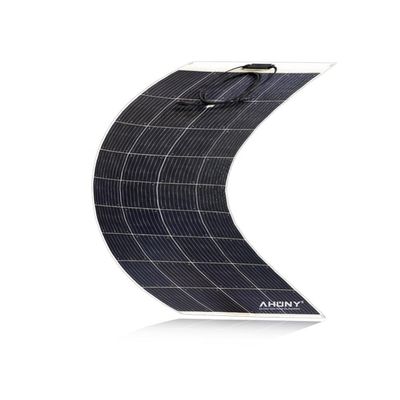

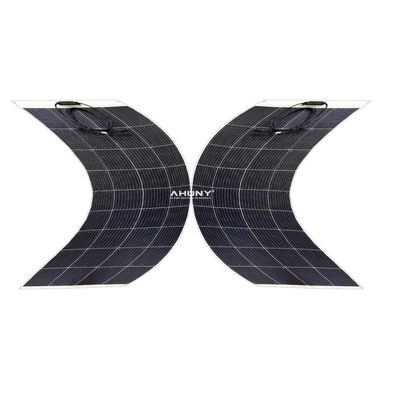

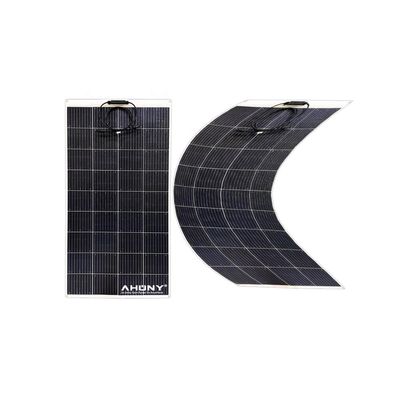

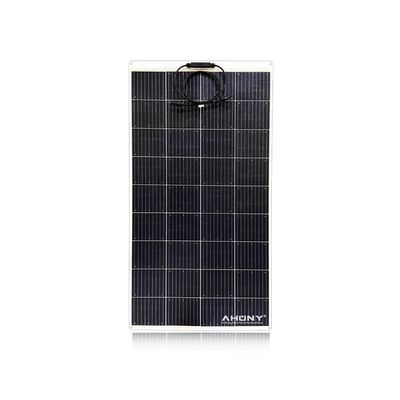

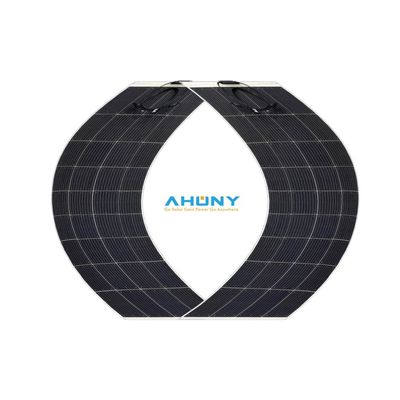

Walkable durable 150w Semi Flexible Solar Panel anti skid step on mono pv module no hidden crack

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Product Name:

Semi Flexible Solar Panel 150w

Cell Size:

158.75mmx158.75mm

Type:

HJT Or N-TYPE Higher Efficiency 24% Solar Cell

Panel Dimensions:

670*1145*3mm

Panel Efficiency:

20%

Warranty:

1year

OEM Order:

Yes

Certificate:

CE ROHS ISO9001 SGS

Port:

Shenzhen

Packaging Details:

carton box for 22w portable USB solar charger

Supply Ability:

20000 Set/Sets per Month

Highlight:

Product Description

Walkable durable 150w Semi Flexible Solar Panel anti skid step on mono pv module no hidden crack

Product Description

1, latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2. MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S150M
Product Name	Walkable durable 150w Semi Flexible Solar Panel anti skid step on mono pv module no hidden crack
Maximum Power[Wp]	150
Solar Cell	HJT
Cell Array[Pcs]	4*9
Cell Efficiency	24%
Size[mm]	67011453
Max Power Voltage Vmp[V]	20.88
Max Power Current Imp[A]	7.18
Open Circuit Voltage Voc[V]	24.43
Short Circuit Current Isc[A]	7.76
Net.Weight[kg]	2.2
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2

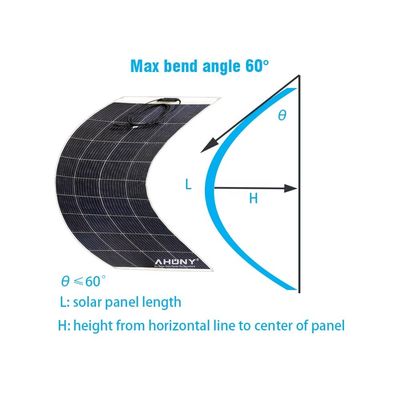

Maximum bend radius(θ)	60°
Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
