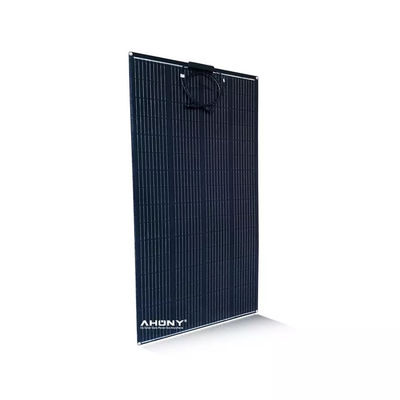

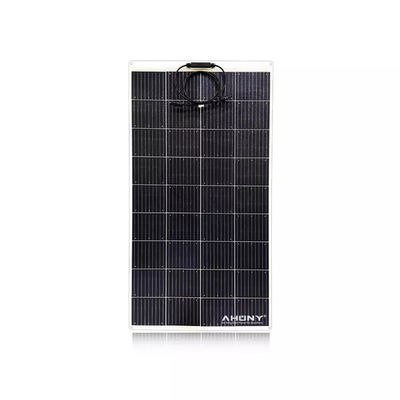

420w Mono Semi Flexible Solar Panels Etfe Half Cut Rv Solar Kits home roof

Detail Information

Place of Origin:

Guangdong, China

Product Name:

420w Mono Flexible Solar Panle

Power:

420W

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

Half Cut 1000*2010*2

Panel Efficiency:

22.7%

Junction Box:

Waterproof IP65

Port:

Shenzhen

Packaging Details:

carton box for 22w portable USB solar charger

Supply Ability:

20000 Set/Sets per Month

Highlight:

Product Description

420w Semi Mono Flexible Solar Panel Etfe Rv Awning Transparent Bificial Module Solar Off Grid Solar System

Product Description

1.latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2.MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3.3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S420M
Product Name	semi flexible solar panel
Maximum Power[Wp]	420
Solar Cell	Monocrystalline solar cell
Cell Array[Pcs]	6*10
Cell Efficiency	22.7%
Size[mm]	half cut 100020102
Max Power Voltage Vmp[V]	34.2
Max Power Current Imp[A]	12.28
Open Circuit Voltage Voc[V]	40.01
Short Circuit Current Isc[A]	12.96
Net.Weight[kg]	9.24
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.41
Temperature Coefficient Voc[[%/℃]	-0.32
Temperature Coefficient Isc[[%/℃]	0.04
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2

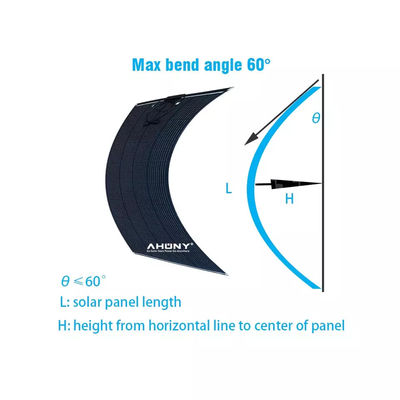

Maximum bend radius(θ)	60°
Cables and Connectors	Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
