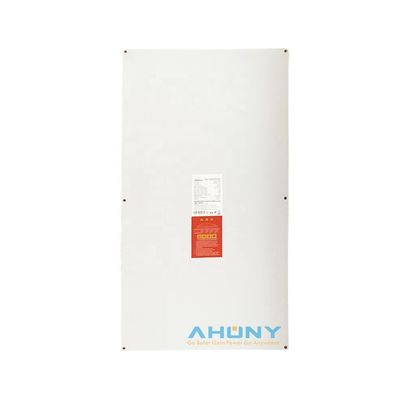

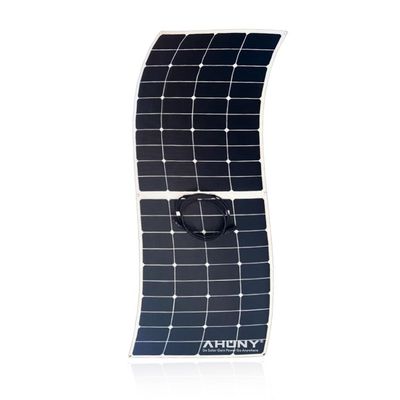

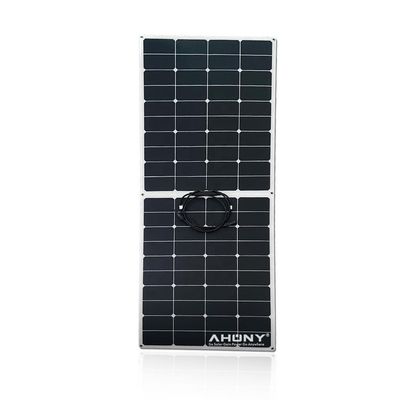

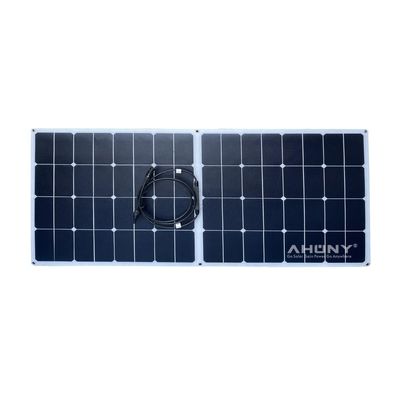

Shade Tolerant Semi Solar Flexible Panels 145w Half Cut Mono Solar Panel For RV Marine Sailboat

Detail Information

Place of Origin:

Guangdong, China

Type:

Semi Flexible Solar Panel

Cell Size:

125mmx125mm

Panel Dimensions:

540x1345x3mm

Panel Efficiency:

19.96%

Certificate:

CE ROHS ISO9001

Warranty:

1 Year

Application:

Sailboat

Port:

Shenzhen

Packaging Details:

carton box

Supply Ability:

1000 Piece/Pieces per Month

Highlight:

Product Description

145w Shade Tolerant Half Cut Semi Flexible Solar Module For Sailboat Smaller Current Higher Power Flexible Solar Panel

Model No.	eGo S145w
Product Name	Semi-Flexible Solar Panel
Maximum Power[Wp]	145
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*10
Cell Efficiency	24.40%
Size[mm]	540x1345x3
Max Power Voltage Vmp[V]	24.50
Max Power Current Imp[A]	5.92
Open Circuit Voltage Voc[V]	28.91
Short Circuit Current Isc[A]	6.27
Net.Weight[kg]	3.2
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	Japan ETFE/white PET
Maximum bend radius(θ)	30°
