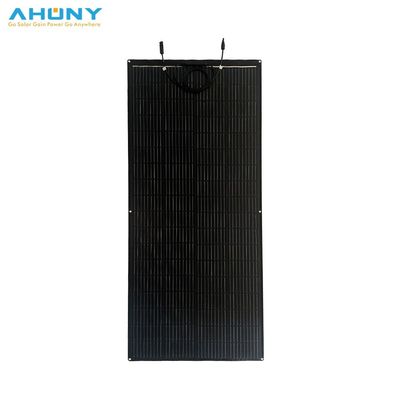

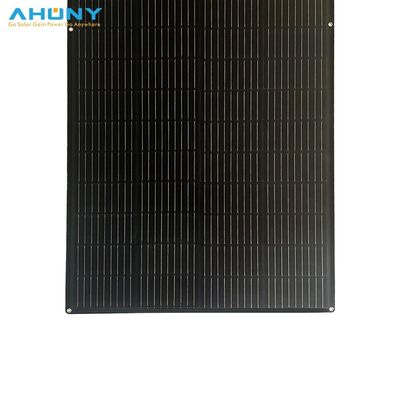

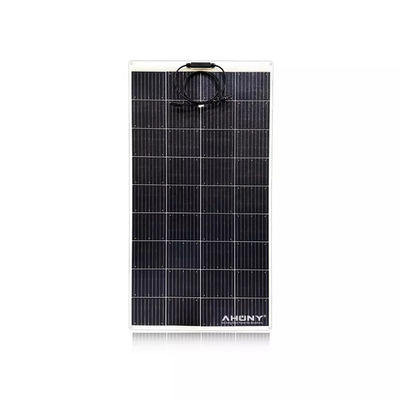

Lightweight Mono 120 Watt Flexible Solar Panel best off grid solar panels sizes custom For Car Boat RV Yacht Camping

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Product Name:

Semi Flexible Solar Panel

Maximum Power:

120W

Weight:

2.7kg

Cell Size:

158mmx158mm

Panel Dimensions:

680*970*2

Panel Efficiency:

22.7%

Solar Cell:

HJT HCF

Certificate:

CE ROHS

Packaging Details:

1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Supply Ability:

6000 Piece/Pieces per Month

Highlight:

Product Description

Lightweight Mono 120 Watt Flexible Solar Panel best off grid solar panels sizes custom For Car Boat RV Yacht Camping

Product Description

1, latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2. MBB technology less power loss

9BB multi busbar technology on both sides, distance between 2 bus bars less, less resistance and more current even through cell crack.

3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S120M
Product Name	Lightweight Mono 120 Watt Flexible Solar Panel best off grid solar panels sizes custom For Car Boat RV Yacht Camping
Maximum Power [Wp]	120
solar cells	HJT
Cell Array[Pcs]	4*9
Cell efficiency	22.7%
Size [mm]	6809702
Max Power Voltage Vmp[V]	20.52
Max Power Current Imp[A]	5.85
Open Circuit Voltage Voc[V]	24.01
Short Circuit Current Isc[A]	6.17
Net. Weight [kg]	2.7
Power tolerance[%]	±3%
NOCT[°C]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage [V]	1000V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2

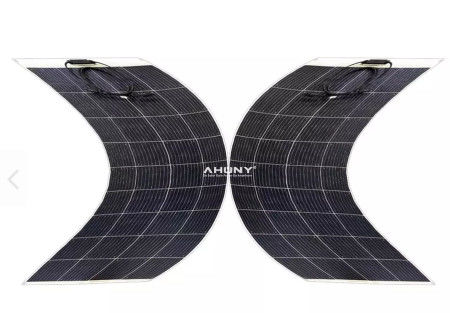

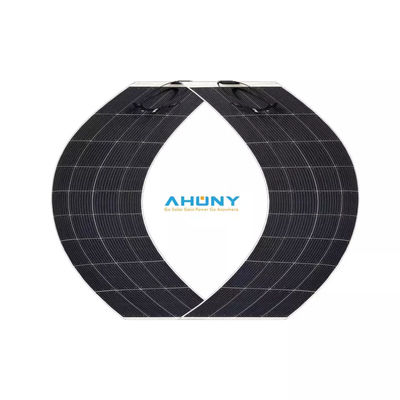

Maximum bend radius (θ)	60°

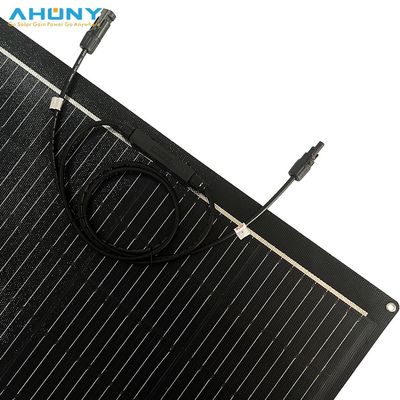

Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10, with eyelets
